(1) Terminal block label artwork was updated for continuous improvement. Both labels shown in Figures 2-7a and 2-7b are valid
but the label shown in Figure 2-7a is current.
5. Tighten until cover and housing are fully engaged
metal-to-metal (see Figure 2-9). Once metal-to-metal
contact has been made, it is not necessary to tighten
the cover any further.
6. Visually inspect both covers to ensure they are
installed metal-to-metal. Visual inspection is sufficient
to ensure metal-to-metal contact, however, a gap
gauge may be used for verification if desired. When
metal-to-metal contact has been made, the
acceptable gap between cover and housing will be
less than 0.010 inch (see Figures 2-10 and 2-11).
Replace the cover o-rings per the steps outlined in
Electronics Housing Reassembly section if either cover was
installed metal-to-metal and then removed.

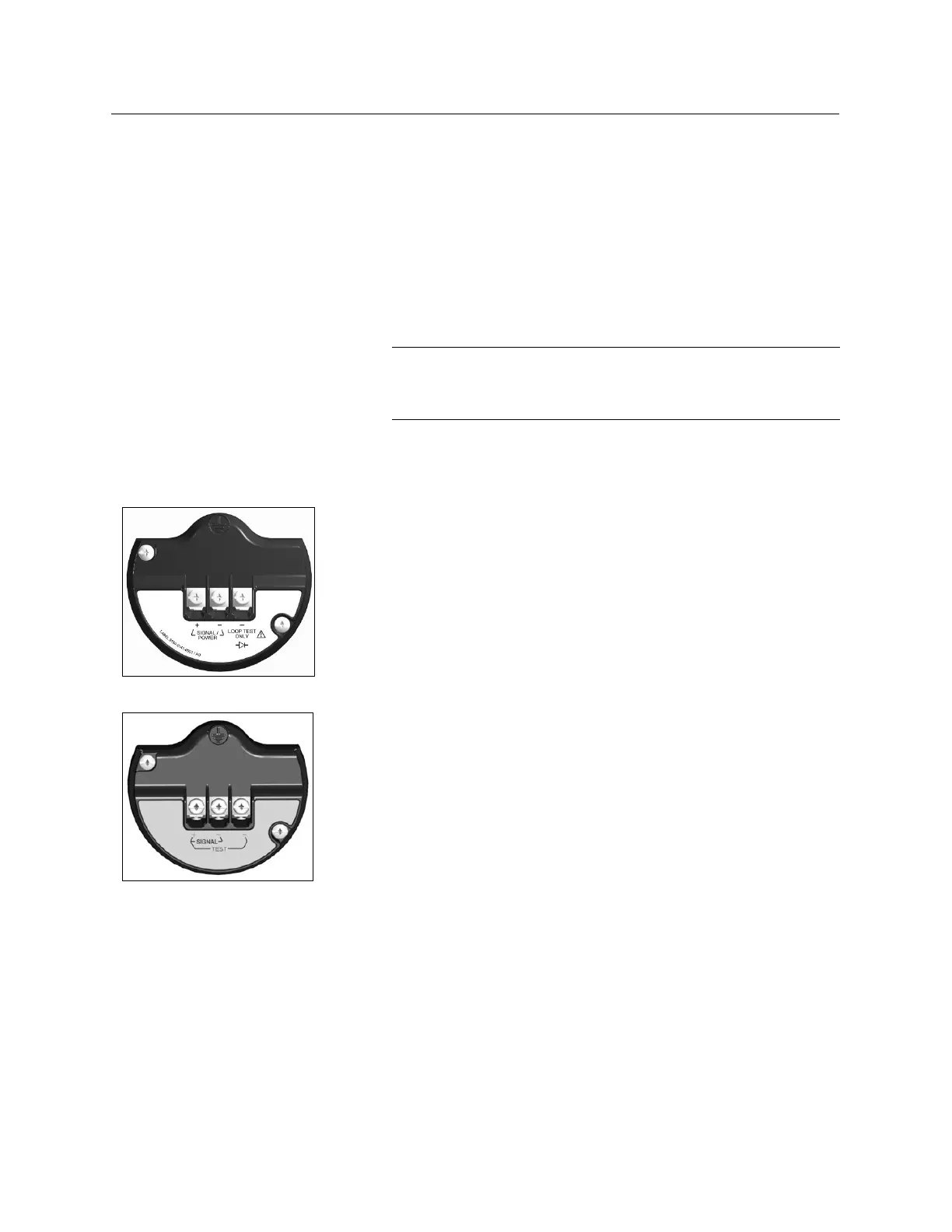

Figure 2-7 – Terminal Block
Assembly
(1)
Figure 2-7a – Current Terminal Block Assembly
Figure 2-7b – Former Terminal Block Assembly
