Emerson Process Management GmbH & Co. OHG1-12
X-STREAM XE
Short Form Manual
HASXEE-SFM-HS
05/2017
1 Screw-type terminals for signal cables
2 Power line lter
3 Cable glands
4 Power supply terminals with integrated fuses
5 Ethernet Service Port and USB connection
6 Ethernet network conncetion

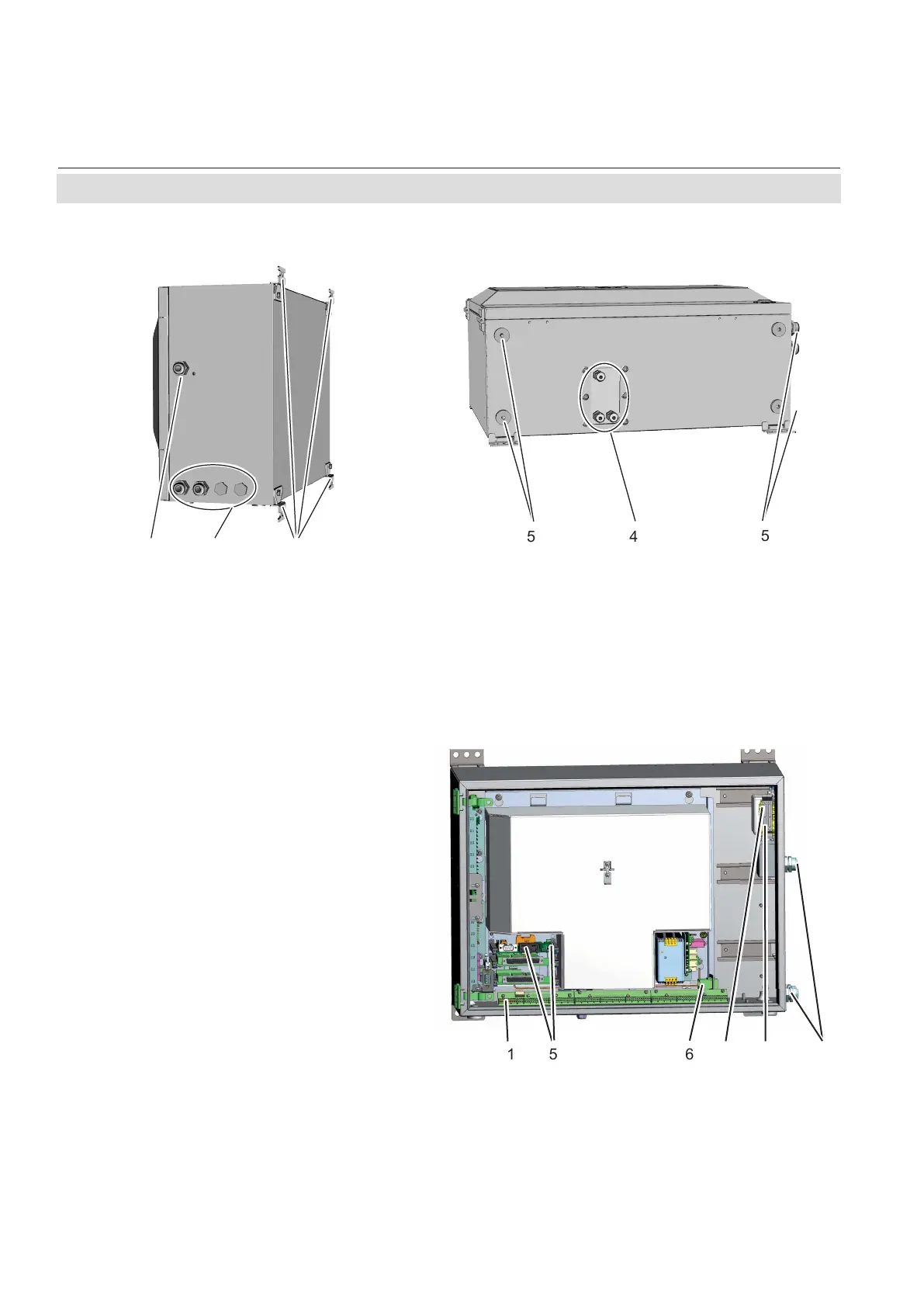

Fig. 1-5: X-STREAM XEF - Side and Bottom View
Fig. 1-6: X-STREAM XEF - Power Supply and Signal Terminals
(shown with front panel removed)
Note!
In case of XDF, the terminals and
connectors are located at the upper
compartment, while physical compo-
nents and gas ttings are in the lower
compartment.
21 3
5 4
5
1 Cable gland for power cable
2 Cable glands for signal cables
3 4 brackets for wall-mounting
4 Gas in- & outlets (max. 8)
5 Cutouts, to combine 2 housings (here closed)
Note!
In case of XDF, the cable glands are located
at the upper compartment, while the gas in-
& outlets are at the bottom side of the lower
compartment.
Also only 2 brackets are at each compartment.
1 32 45 6
1.5 X-STREAM XEXF Field Housings
