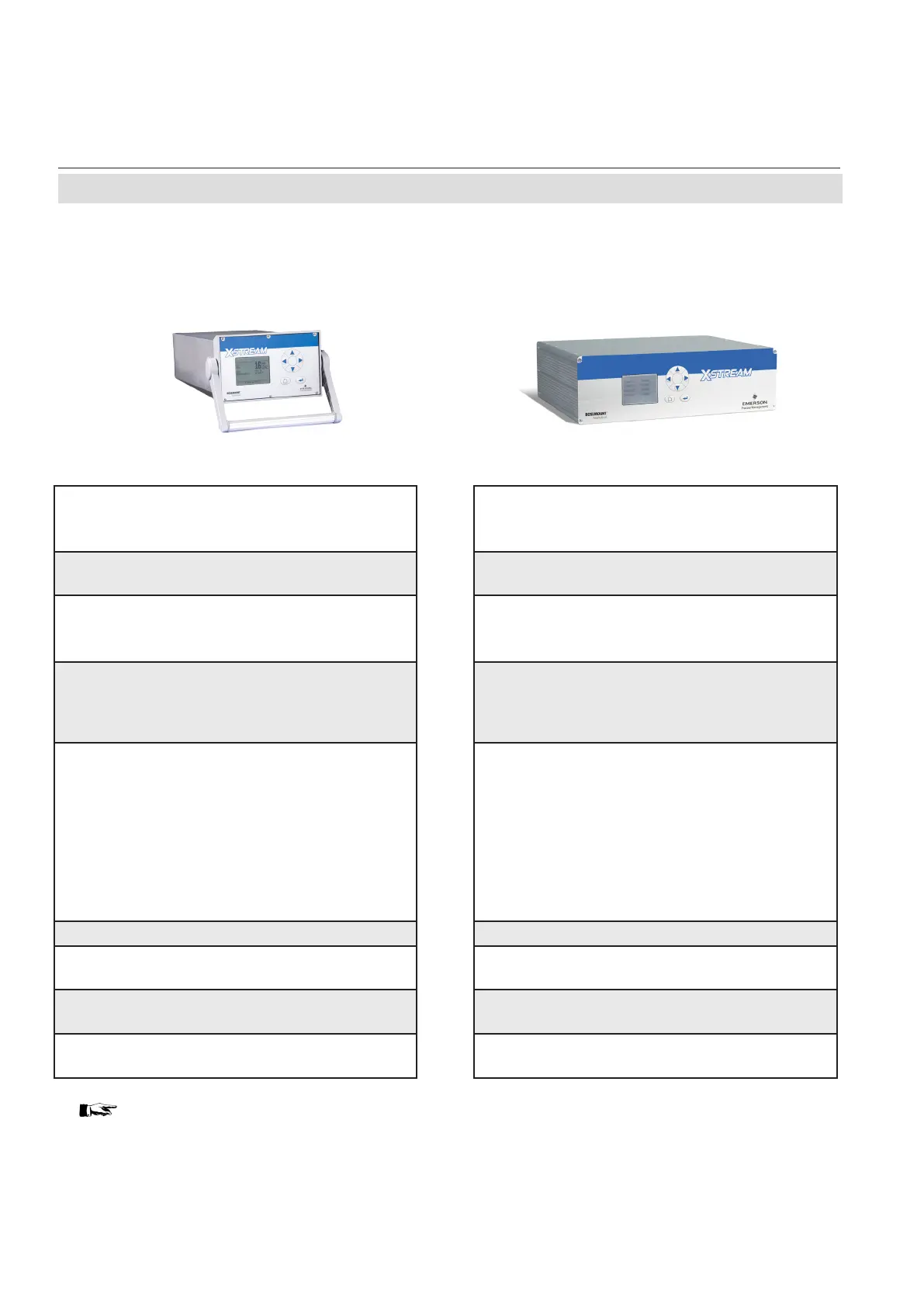

1.2 Comparison of Analyzer Models
1.2 Comparison of the Various X-STREAM Analyzer Model
1
⁄219 in housing, table-top or rackmountable,
optional with carrying handle
protection type: IP 20
1
⁄1 19 in housing, table-top or rackmountable,
protection type: IP 20
Stainless steel wallmountable eld housing,
pro-
tection type: IP66 / NEMA 4X
Single (XEF) or dual (XDF) compartment design
Cast aluminium wallmountable eld housing,
protection type: IP66 / NEMA 4X
Internal wide range power supply, or
24V input with external power supply unit
Internal wide range power supply unit Internal wide range power supply unit Internal wide range power supply unit
Max. 3 channels in many combinations
max. 8 gas connections,
including 1 optional purge gas connection
Max. 5 channels in many combination
max. 8 gas connections,
1 optional extra connection for purge gas
Max. 5 channels in many combination
max. 8 gas connections,
1 optional extra connection for purge gas
Max. 5 channels in many combination
max. 8 gas connections,
including 2 optional purge gas connection
Options for gas lines: Flow sensor, pressure
sensor, infallible gas lines. With restrictions on
measurement channel combinations: sample
gas pump, 1 valve block
Options for gas lines: Flow sensor, pressure
sensor, heating for physical components,
sample gas pump, 1 or 2 valve blocks, infal-
lible gas lines
Options for gas lines: Flow sensor, pressure
sensor, heating for physical components,
sample gas pump, 1 or 2 valve blocks, infal-
lible gas lines
Options for gas lines: Flow sensor, pressure
sensor, heating for physical components,
sample gas pump, 1 or 2 valve blocks, infal-
lible gas lines
1–5 analog outputs, 4 relay outputs, 2 Mod-
bus Ethernet interfaces, 2 USB connectors
optional:
1 interface card with 7 digital inputs and
9 digital outputs
1 interface card with analog inputs
electrical interfaces accessible via sockets on
back of unit
1-5 analog outputs, 4 relay outputs, 2 Modbus
Ethernet interfaces, 2 USB connectors
optional:
1 or 2 interface cards, each with 7 digital
inputs and 9 digital outputs
1 interface card with analog inputs
electrical interfaces accessible via sockets on
back of unit, optionally: screw-type terminal
adapters
(except for Ethernet & USB)
1-5 analog outputs, 4 relay outputs, 2 Modbus
Ethernet interfaces, 2 USB connectors
optional:
1 or 2 interface cards, each with 7 digital
inputs and 9 digital outputs
1 interface card with analog inputs
electrical interfaces on internal screw-type ter-
minal adapters
(except for Ethernet & USB)
1-5 analog outputs, 4 relay outputs, 2 Modbus
Ethernet interfaces, 2 USB connectors
optional:
1 or 2 interface cards, each with 7 digital
inputs and 9 digital outputs
1 interface card with analog inputs
electrical interfaces on internal screw-type ter-
minal adapters
(except for Ethernet & USB)
LCD LCD LCD, impact tested front panel LCD, impact tested front panel
Max. operating ambient temperature
*)
:
0 °C to +50 °C (32 °F to 122 °F)
Max. operating ambient temperature
*)
:
0 °C to +50 °C (32 °F to 122 °F)
Max. operating ambient temperature
*)
:
-20 °C to +50 °C (-4 °F to 122 °F)
Max. operating ambient temperature
*)
:
-20 °C to +50 °C (-4 °F to 122 °F)
Models available for use in explosive environ-
ments
Flameproof enclosure: approved for use in
explosive environments
Size (DxHxW): max. ca. 460x128.7x213 mm
Weight: ca. 8–12 kg (17.6 - 26.5 lb)
Size (DxHxW): max. ca. 411x133x482 mm
Weight: ca. 11 - 16 kg (24.3 - 35.3 lb)
Size (DxHxW): ca. 265x400 (815)x550 mm
Weight: max. ca. 25 (45) kg / 55.1 (99.2) lb
Size (DxHxW): max. ca. 222x512x578 mm
Weight: max. ca. 63 kg (138.9 lb)
*)
: Limitations apply to selected measurement principles and ranges,
Measurement specications!
This model is not covered by this manual!
See the separate X-STREAM Ex d manual
for hazardous area applications!
X-STREAM XEGK
X-STREAM XEGP
