Emerson Process Management GmbH & Co. OHG 2-15
X-STREAM XE
Short Form Manual
HASXEE-SFM-HS
05/2017
2
Installation
2.6.1 Installation - X-STREAM XEGK, X-STREAM XEGP
Power supply
Optional DC Supply for X-STREAM XEGK
24 VDC is supplied to the unit by means of a
three-pin XLR connector on the rear panel of
the instrument.
Depending on the order, the following is sup-
plied as an accessory: either
• an external power supply unit which can
be connected directly to the analyzer using
the supplied cable
or
• a connector which can be used with a ca-
ble and PSU as specied by the customer.
Note the conguration of the connector´s pins.
X-STREAM XEGK and XEGP
AC power is supplied to the unit by means of
a three-pin IEC connector on the rear panel
of the instrument.

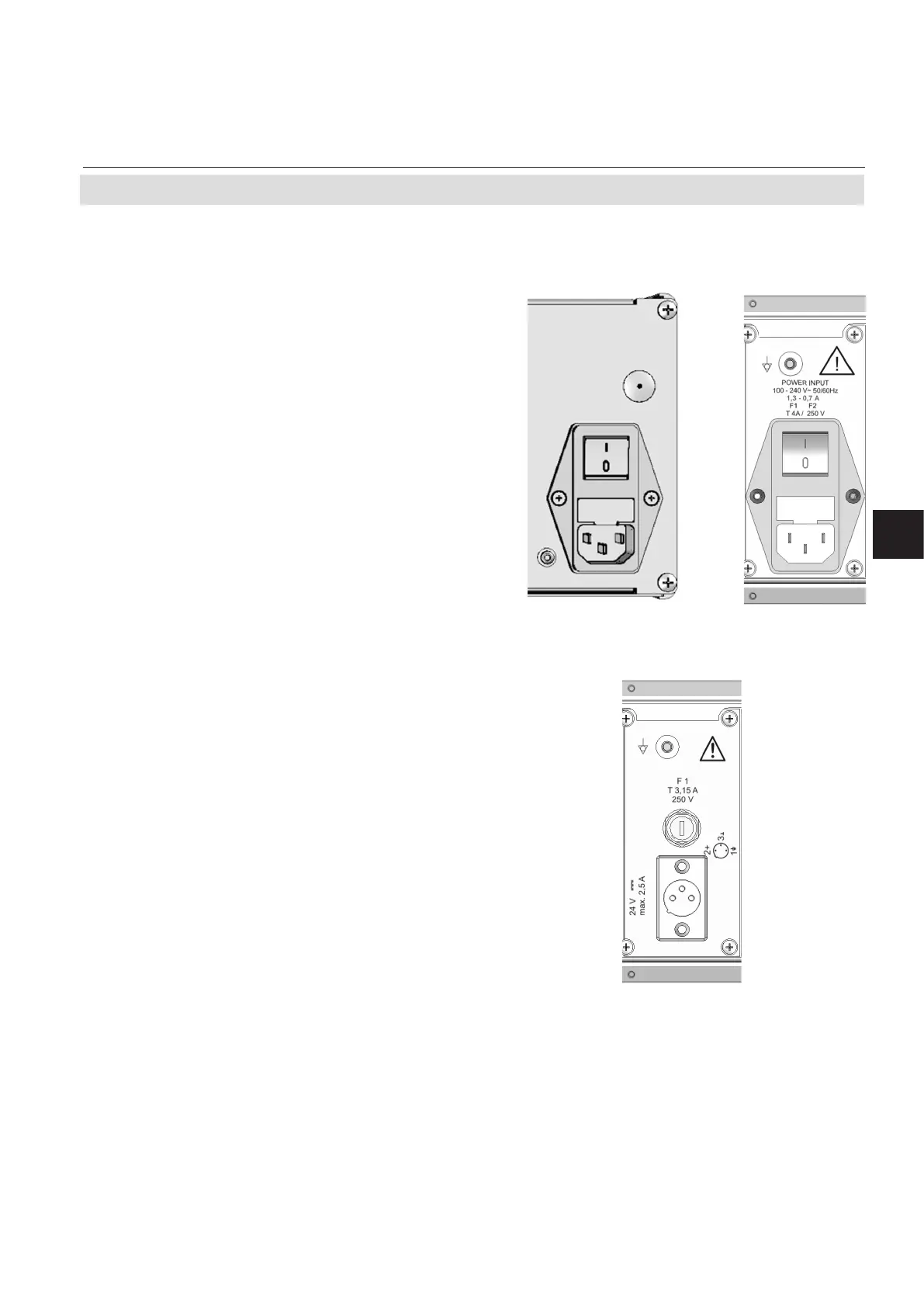

Fig. 2-8: Power Supply Connectors
Details of any PSUs supplied with the unit are
given by the X-STREAM Enhanced Series
instruction manual.
XEGP AC connectors XEGK
DC connector XEGK
