Startup
3.9 Web Browser
IP address for Ethernet1 connector
Info
Firmware 1.0
XSP version 1.0
Serial no 123456789
Components..
Installed options..
Ethernet1 IP 123.456.78.9
Ethernet2 IP 192.168.1.2
 Time
10/01/10 14:00

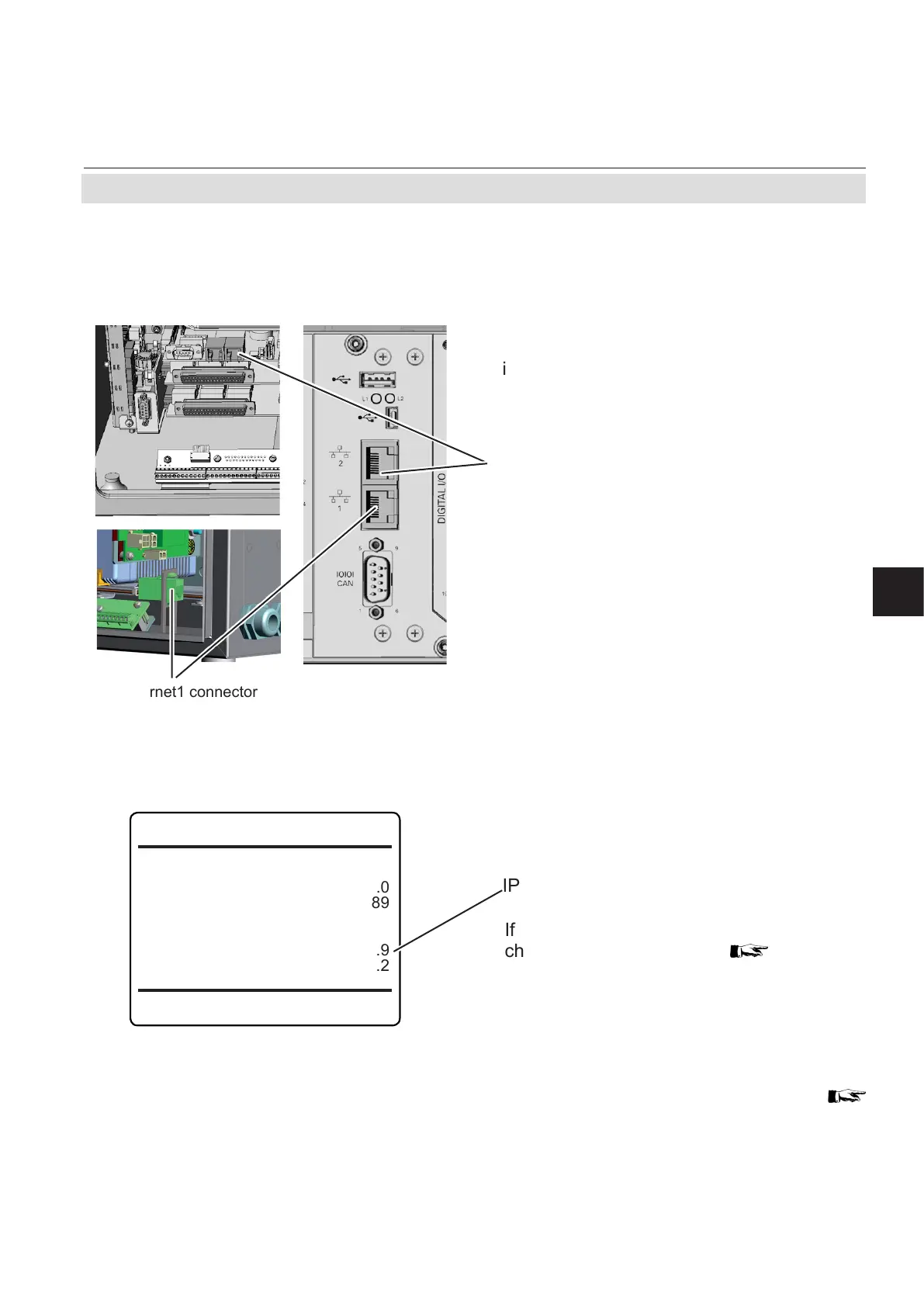

Fig. 3-4: Ethernet Connectors
To gain access to the instrument´s web
browser interface, rst ensure the instrument
is powered and connected to your network via
Ethernet1 connector (Fig. 3-4)
By factory default settings the analyzer is
congured to receive a valid network address
by a DHCP server.
Next enter INFO, to check if the instrument
has been assigned a valid network IP ad-
dress:
If no network IP address has been assigned,
check the network settings ( X-STREAM
Enhanced Series instruction manual)
Ethernet1 connector
Ethernet2 connector
Field housings Table top analyzers
3.9.1 Connection Via Network
Connect your computer to the network, open
a web browser and enter the instrument´s IP
address. If everything is congured properly,
the analyzer's logon screen shows up (
3-32).
