Emerson Rosemount Analytical X-STREAM Enhanced Series - Fig. 2-12: Terminal Block X1 - Analog Signals and Relay Outputs 1-4 (XSTA)

Emerson Process Management GmbH & Co. OHG 2-21
X-STREAM XE
Short Form Manual
HASXEE-SFM-HS
05/2017
2
Installation
2.6.2 Installation - X-STREAM XEXF Field Housings

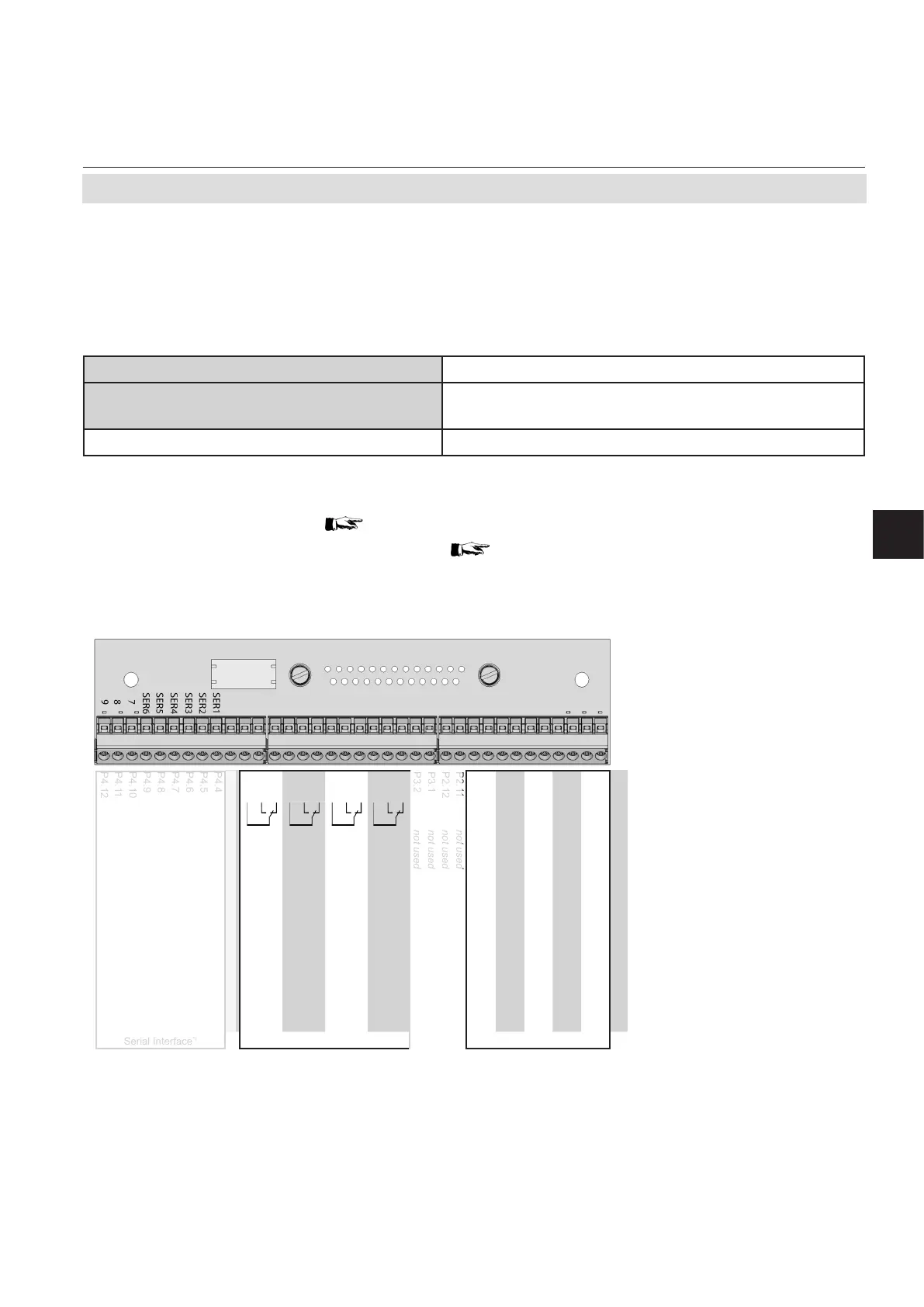

Fig. 2-12: Terminal Block X1 - Analog Signals and Relay Outputs 1-4 (XSTA)
Analog signals
Relay outputs 1-4
Terminals for analog signals and relay outputs 1 - 4 are located on the outer left module (termi-
nal block X1).
**)
Conguration of relay
output terminals as per
standard factory setting
(NAMUR status signals).
NAMUR status signals are
automatically congured
Fail Safe!
Pin Signal P2.1 Channel 1, (+) 4 (0) - 20 mA P2.2 Channel 1, GND P2.3 Channel 2, (+) 4 (0) - 20 mA P2.4 Channel 2, GND P2.5 Channel 3, (+) 4 (0) - 20 mA P2.6 Channel 3, GND P2.7 Channel 4, (+) 4 (0) - 20 mA P2.8 Channel 4, GND P2.9 Channel 5, (+) 4 (0) - 20 mA P2.10 Channel 5, GND P2.11 not used P2.12 not used P3.1 not used P3.2 not used P3.3 Output 1 (Failure), NC P3.4 Output 1 (Failure), NO P3.5 Output 1 (Failure), COM P3.6 Output 2 (Maintenance Request), NC P3.7 Output 2 (Maintenance Request), NO P3.8 Output 2 (Maintenance Request), COM P3.9 Output 3 (Out of Spec), NC P3.10 Output 3 (Out of Spec), NO P3.11 Output 3 (Out of Spec), COM P3.12 Output 4 (Function check), NC P4.1 Output 4 (Function check), NO P4.2 Output 4 (Function check), COM P4.3 not used P4.4 P4.5 P4.6 P4.7 P4.8 P4.9 P4.10 P4.11 P4.12
Relay Outputs
**)
Analog Outputs
Serial Interface
*)
Specication of analog signal outputs: 4(0) – 20 mA; burden: R
B
≤ 500 Ω
Specication of relay outputs:
Dry relay change-over contacts can be used as
NO or NC.
Electrical specication: max. 30 VDC, 1 A, 30 W
Notes!
• Consider
• the installation notes in 2.7
• the notes on installing cable glands on page 2-19.
• Technical data and installation information for further available interfaces are given in the
X-STREAM Enhanced instruction manual. Connector layouts are part of the appendix of this
manual.
