2.6.2 Installation - X-STREAM XEXF Field Housings
2.6.2 X-STREAM XEXF
Fitted with four eyebolts and featuring IP66/
Type 4X protection, X-STREAM XEXF eld

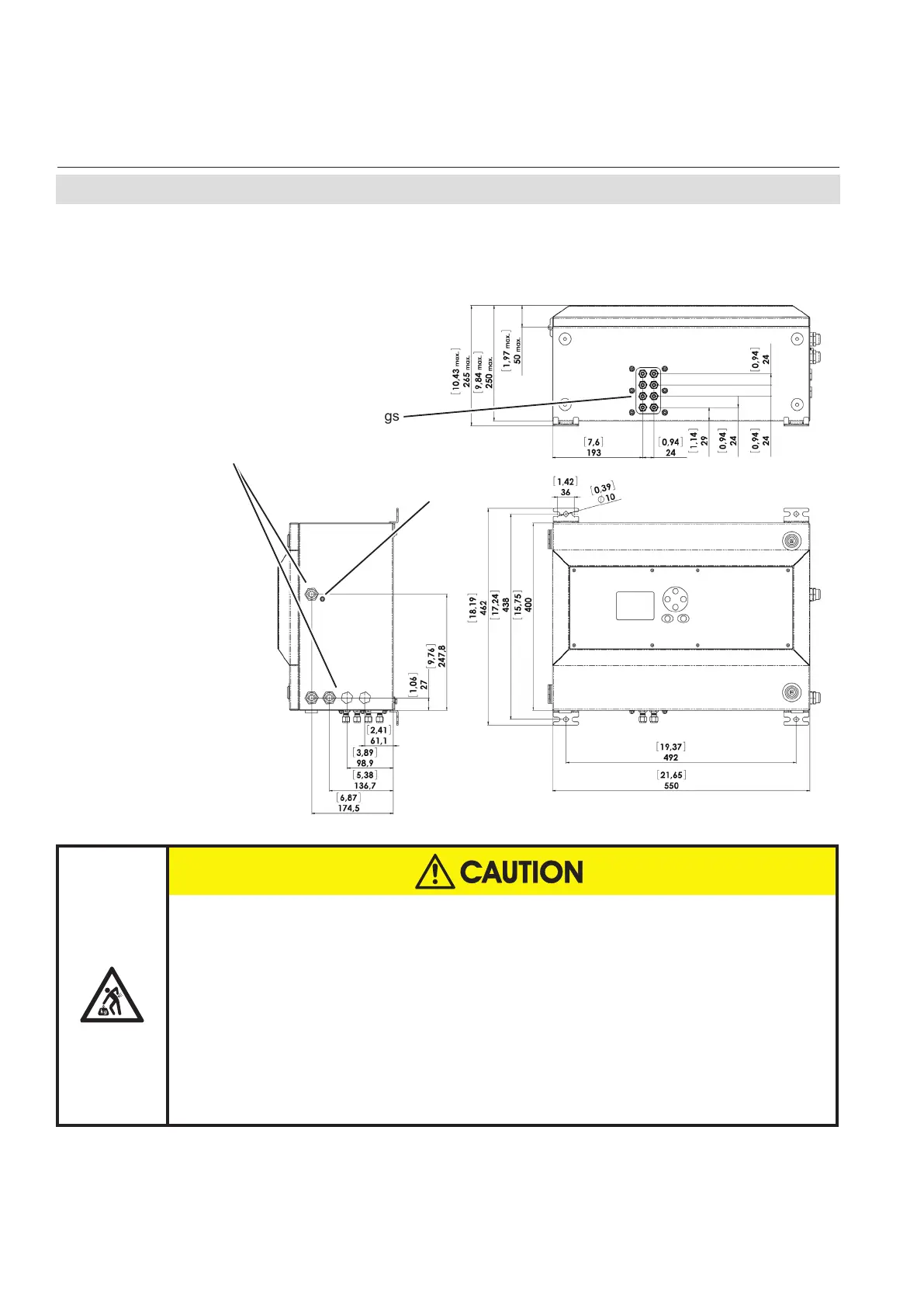

Fig. 2-9: X-STREAM XEF - Dimensions for Installation
housings can be mounted in the open air on
a wall or frame with no extra work.
HEAVY INSTRUMENT
X-STREAM XEF / XDF analyzers, intended to be wall mounted or outdoor
installed, weigh up to 45 kg (99 lbs), depending on the chosen options!
Use two persons and/or suitable tools for transportation and lifting these
instruments!
Take care to use anchors and bolts specied to be used for the weight of
the instruments!
Assure that the wall / device for installation is sufciently attached and
stable to carry the instrument!
All dimensions in mm
[inches in brackets]
Cable glands
Gas ttings
Connector
for potential
equalization
Note!
Take care to re-
serve space at the
right side of the in-
strument for laying
the cables!
