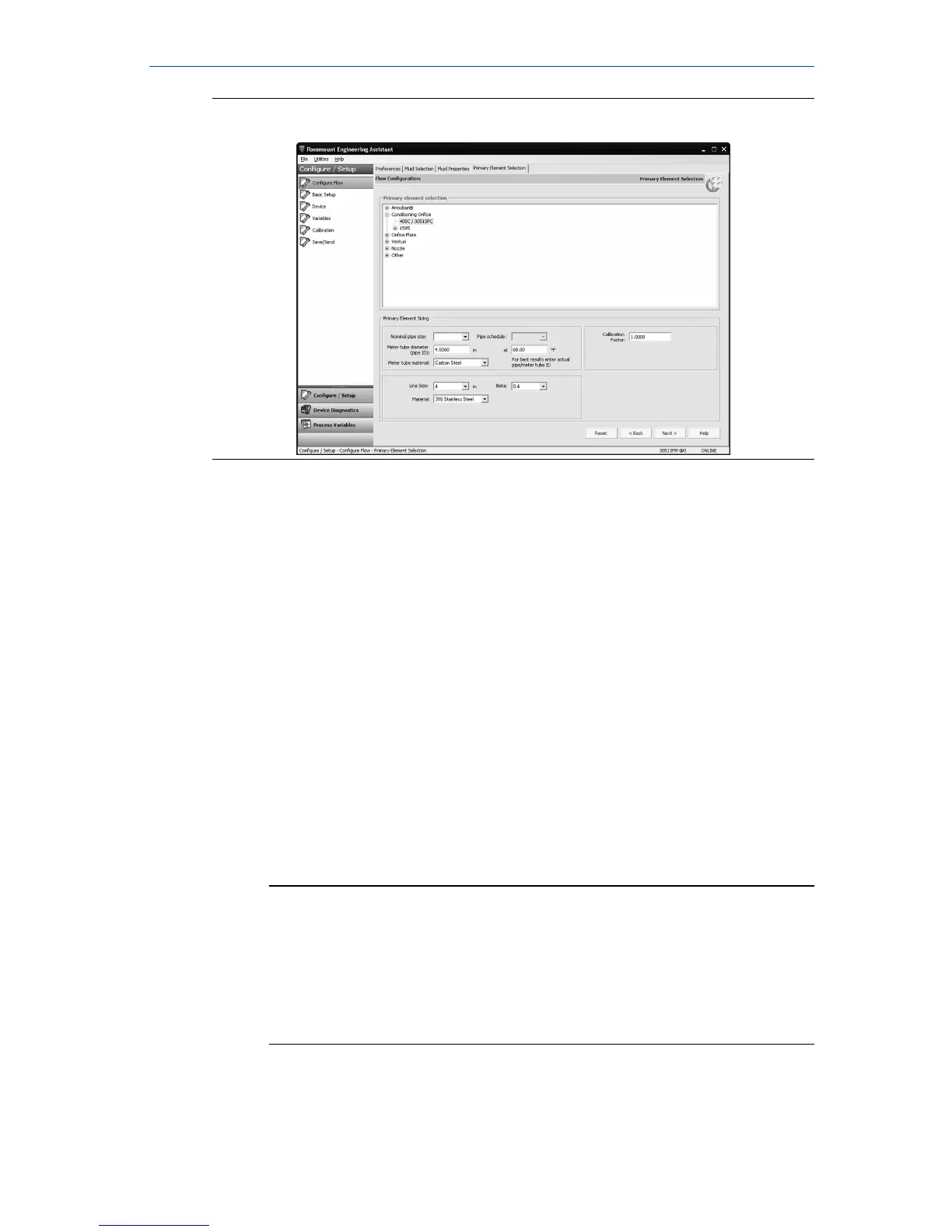

Figure 6-6: Primary Element Selection Tab
Continuing with the example configuration:
Procedure
1. Expand the Conditioning Orifice Plate category.
2. Select 405C/3051SFC.
3. Enter the measured Meter Tube Diameter (pipe ID) at a reference
temperature. If the meter tube diameter cannot be measured, select a
Nominal Pipe Size and Pipe Schedule to input an estimated value for
the meter tube diameter (English units only).
4. If necessary, edit the Meter Tube Material.
5. Enter the Line Size and select the Beta of the conditioning orifice
plate. The required primary element sizing parameters will be different
depending on what primary element was selected.
6. If necessary, select a primary element Material from the dropdown
menu.
7. Select Next > to advance to the Save/Send Configuration tab.
Note
To be in compliance with appropriate national or international
standards, beta ratios and differential producer diameters should be
within the limits as listed in the applicable standards. The Engineering
Assistant software will alert the user if a primary element value
exceeds these limits, but will allow the user to proceed with the flow
configuration.
October 2018 Quick Start Guide
Quick Start Guide 23

Emerson Rosemount MultiVariable 3051S Series Specifications

General

Type	MultiVariable Transmitter
Accuracy	±0.04% of span
Ambient Temperature Limit	-40 to 185 °F (-40 to 85 °C)
Approvals	FM, CSA, ATEX, IECEx
Service	Liquid, Gas, Steam
Warranty	5 years
Process Temperature Range	-40 to 257°F (-40 to 125°C)
Response Time	100 ms
Power Supply	10.5 to 42 V DC
Communication Protocols	HART, FOUNDATION Fieldbus, PROFIBUS
Housing Material	Aluminum
Display	Optional LCD
Process Connection	1/4" NPT
Electrical Connection	1/2–14 NPT, M20 x 1.5
Enclosure Rating	NEMA 4X, IP66
Measurement Types	Differential Pressure, Static Pressure, Temperature
