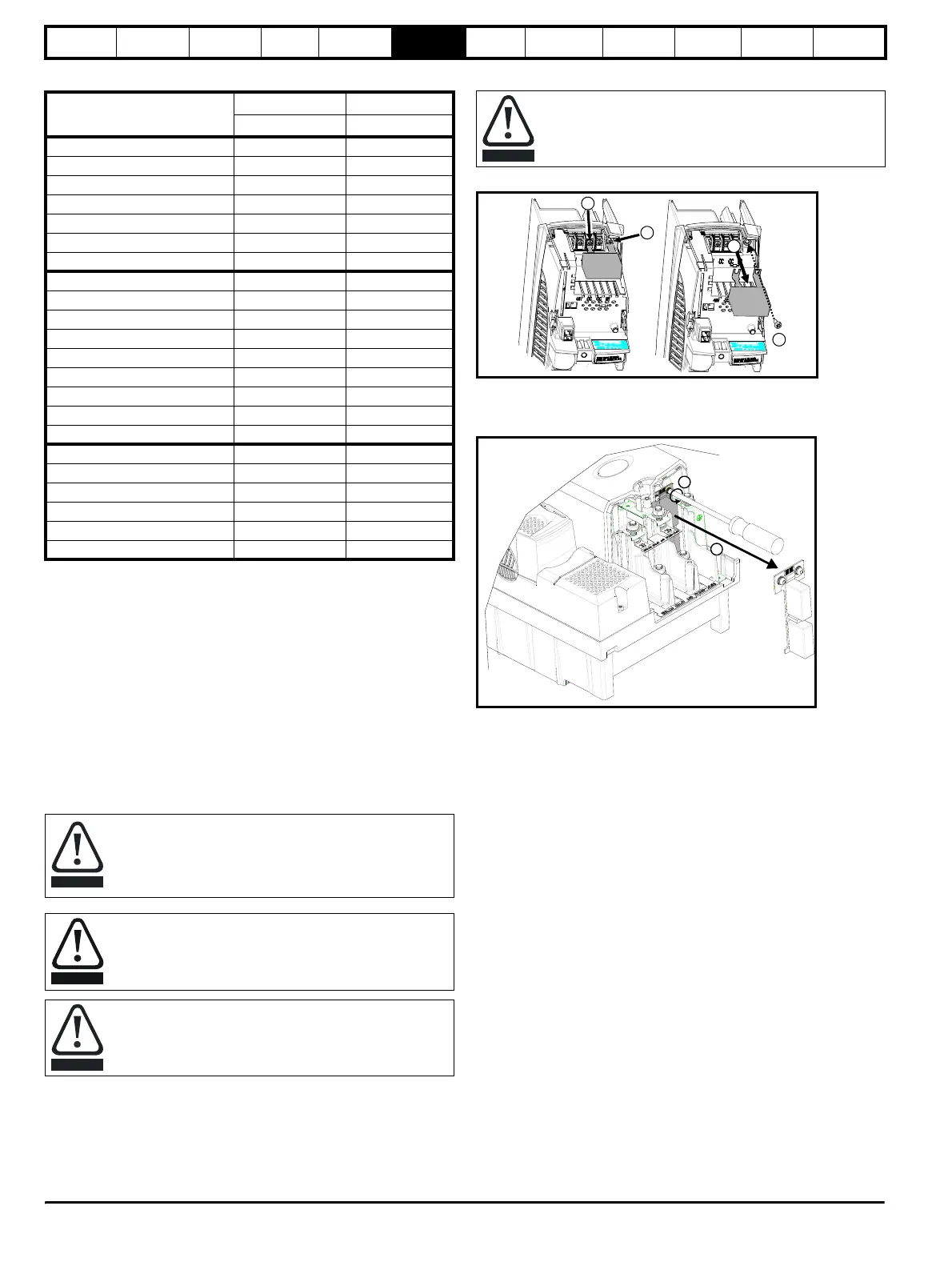

Table 6-6 Unidrive SP / EMC filter cross reference
6.5 External EMC filter
In order to provide our customers with a degree of flexibility, external
EMC filters have been sourced from two manufacturers: Schaffner and
Epcos. The external EMC Filter ratings and dimensions information are
available in the Unidrive SP User Guide.
For currents exceeding 300A up to 2500A, suitable filters are also
available from both Epcos and Schaffner as detailed.
• Epcos B84143-B250-5xx (range up to 2500A)
• Schaffner FN3359-300-99 (range up to 2400A)
These filters may not give strict conformity with EN6000-6-4 but in
conjunction with EMC installation guidelines they will reduce emissions
to sufficiently low levels to minimise the risk of disturbance.
6.5.1 Removal of internal EMC filter
Figure 6-12 Removal of internal EMC filter (size 1 to 3)
Loosen / remove screws as shown (1) and (2).
Remove filter (3), and ensure the screws are replaced and re-tightened (4).
Figure 6-13 Removal of internal EMC filter (size 4 to 6)
Loosen screws (1). Remove EMC filter in the direction shown (2).
Drive
Schaffner Epcos
CT part no. CT part no.
SP1201 to SP1202 4200-6118 4200-6121
SP1203 to SP1204 4200-6119 4200-6120
SP2201 to SP2203 4200-6210 4200-6211
SP3201 to SP3202 4200-6307 4200-6306
SP4201 to SP4203 4200-6406 4200-6405
SP5201 to SP5202 4200-6503 4200-6501
SPMD1201 to SPMD1204 4200-6315 4200-6313
SP1401 to SP1404 4200-6118 4200-6121
SP1405 to SP1406 4200-6119 4200-6120
SP2401 to SP2404 4200-6210 4200-6211
SP3401 to SP3403 4200-6305 4200-6306
SP4401 to SP4403 4200-6406 4200-6405
SP5401 to SP5402 4200-6503 4200-6501
SP6401 to SP6402 4200-6603 4200-6601
SPMA1401 to SPMA1402 4200-6603 4200-6601
SPMD1401 to SPMD1404 4200-6315 4200-6313
SP3501 to SP3507 4200-6309 4200-6308
SP4601 to SP4606 4200-6408 4200-6407
SP5601 to SP5602 4200-6504 4200-6502
SP6601 to SP6602 4200-6604 4200-6602
SPMA1601 to SPMA1602 4200-6604 4200-6602
SPMD1601 to SPMD1604 4200-6316 4200-6314
When a EMC filter is used, the switching frequency filter
detailed must also be used. Failure to observe this may result
in the EMC filter becoming ineffective and being damaged.
Refer to section 6.4 EMC (Electromagnetic compatibility) on
page 77.
When an EMC filter is used, a permanent fixed ground
connection must be provided which does not pass through a
connector or flexible power cord. This includes the internal
EMC filter.
The installer of the drive is responsible for ensuring
compliance with the EMC regulations that apply where the
drive is to be used.
CAUTION
WARNING
CAUTION
The internal EMC filter must be removed from the drive.
CAUTION
2
1
3
4
1
2
