Unidrive SP Regen Installation Guide 13
Issue Number: 2 www.controltechniques.com
3.3 Ratings
The above current ratings are given for max 40°C (104°F), and 3.0 kHz
switching. Derating is required for higher switching frequencies, ambient
temperature >40°C (104°F) and high altitude. For further information,
refer to both the Unidrive SP and SPM User Guides.

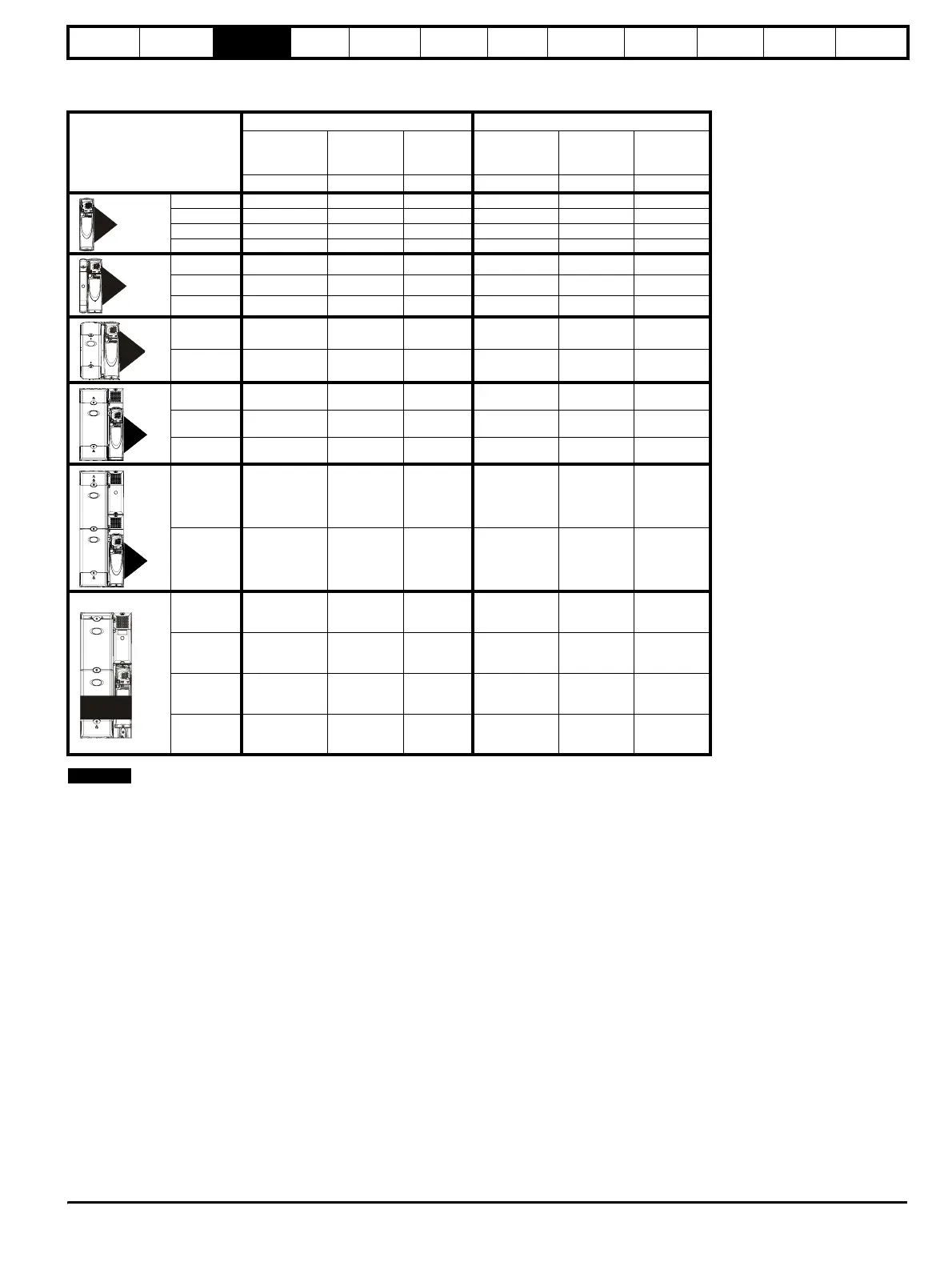

Table 3-1 200V Drive ratings (200V to 240V ±10%)
Model
Normal Duty Heavy Duty
Maximum
continuous
output current
Nominal
power
at 220V
Motor
power
at 230V
Maximum
continuous
output current
Nominal
power
at 220V
Motor
power
at 230V
AkWhpAkWhp
1201 5.2 1.1 1.5 4.3 0.75 1.0
1202 6.8 1.5 2.0 5.8 1.1 1.5
1203 9.6 2.2 3.0 7.5 1.5 2.0
1204 11 3.0 3.0 10.6 2.2 3.0
2201 15.5 4.0 5.0 12.6 3.0 3.0
2202 22 5.5 7.5 17 4.0 5.0
2203 28 7.5 10 25 5.5 7.5
3201 42 11 15 31 7.5 10
3202 54 15 20 42 11 15
4201 68 18.5 25 56 15 20
4202 80 22 30 68 18.5 25
4203 104 30 40 80 22 30
5201 130 37 50 105 30 40
5202 154 45 60 130 37 50
1201 192 55 175 156 45 60
1202 248 75 100 192 55 75
1203 312 90 125 250 75 100
1204 350 110 150 290 90 125
1
2
3
4
55
SPMD
NOTE
