26 Unidrive M702 Getting Started Guide
Issue Number: 4

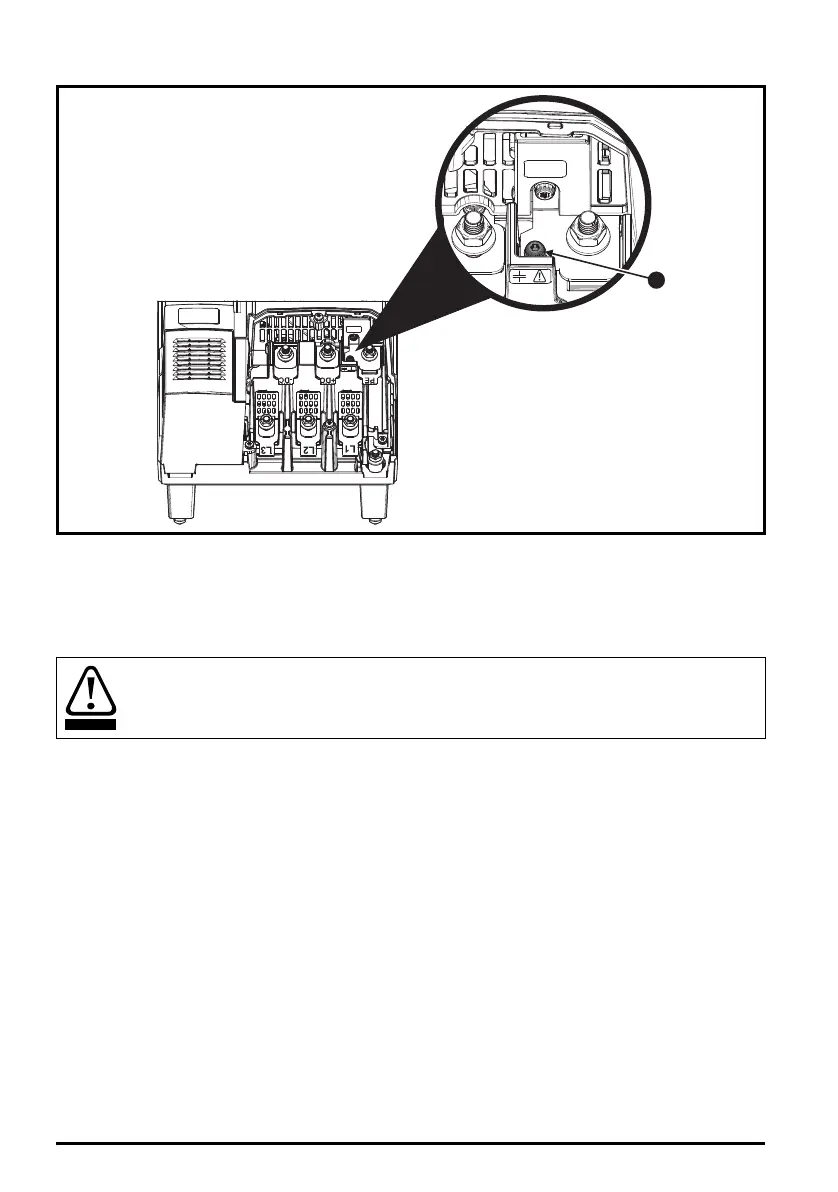

Figure 3-9 Removal of the size 7 to 10 internal EMC filters (size 7 shown)
To electrically disconnect the Internal EMC filter, remove the screw (1) as highlighted above.
3.8.2 External filter
The external EMC filter for size 3, 4, 5 and 6 can be footprint or bookcase mounted.
For information on drive and EMC filter cross reference, refer to the Drive User Guide.
For further information refer to the Drive User Guide.
To avoid a fire hazard and maintain validity of the UL listing, adhere to the specified
tightening torques for the power and ground terminals.
Unidrive M702 Getting Started Guide English iss3.book Page 26 Friday, August 29, 2014 2:33 PM
