Site Preparation and Installation
Liebert
®
Mini-Mate2
™
26

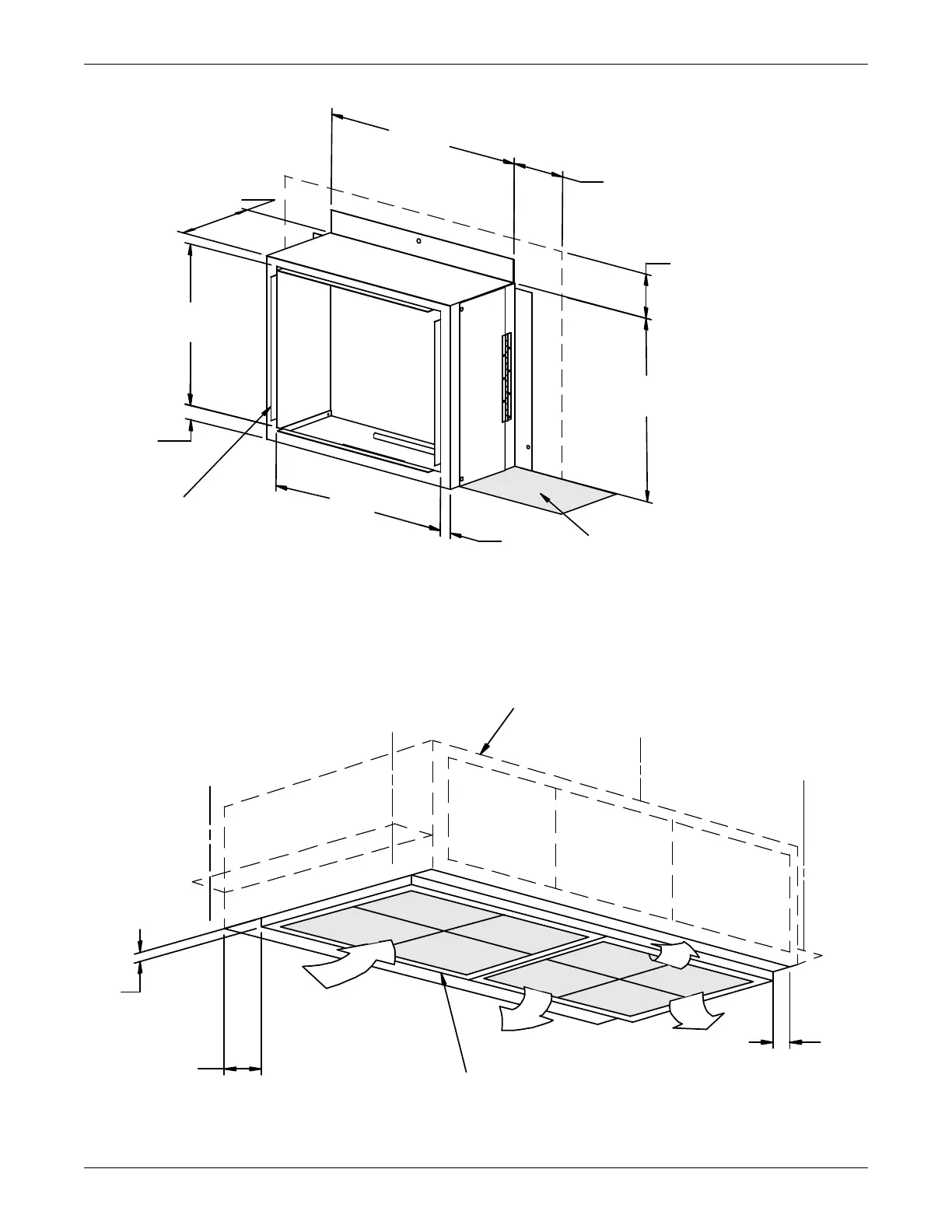

Figure 13 Dimensions—Return filter box, all systems
Figure 14 Dimensions—Supply/return grille kit, all systems
DPN000173
Rev. 1
8" (203mm)
20-1/4"
(514mm)
7-5/8"
(194mm)
2-1/4"
(57mm)
16"
(406mm)
1"
(25.4mm)
14"
(357mm)
1-1/4"
(32mm)
18"
(457mm)
3/4" (19mm)
Flange
Shaded area indicates a recommended
clearance of 30" (762mm) for component
access and removal.
5"
(127mm)
Cabinet dimensions
same as DPN000172
Front of
Unit
One Way
Air Return
to Unit
Three-Way
Unit Discharge
Removable for filter
access and removal.
2"
(51mm)
1"
(25.4mm)
DPN000173
Rev. 1
