Emerson VERTIV Liebert Mini-Mate2 MM2CF User Manual

Site Preparation and Installation
35 Liebert
®
Mini-Mate2
™

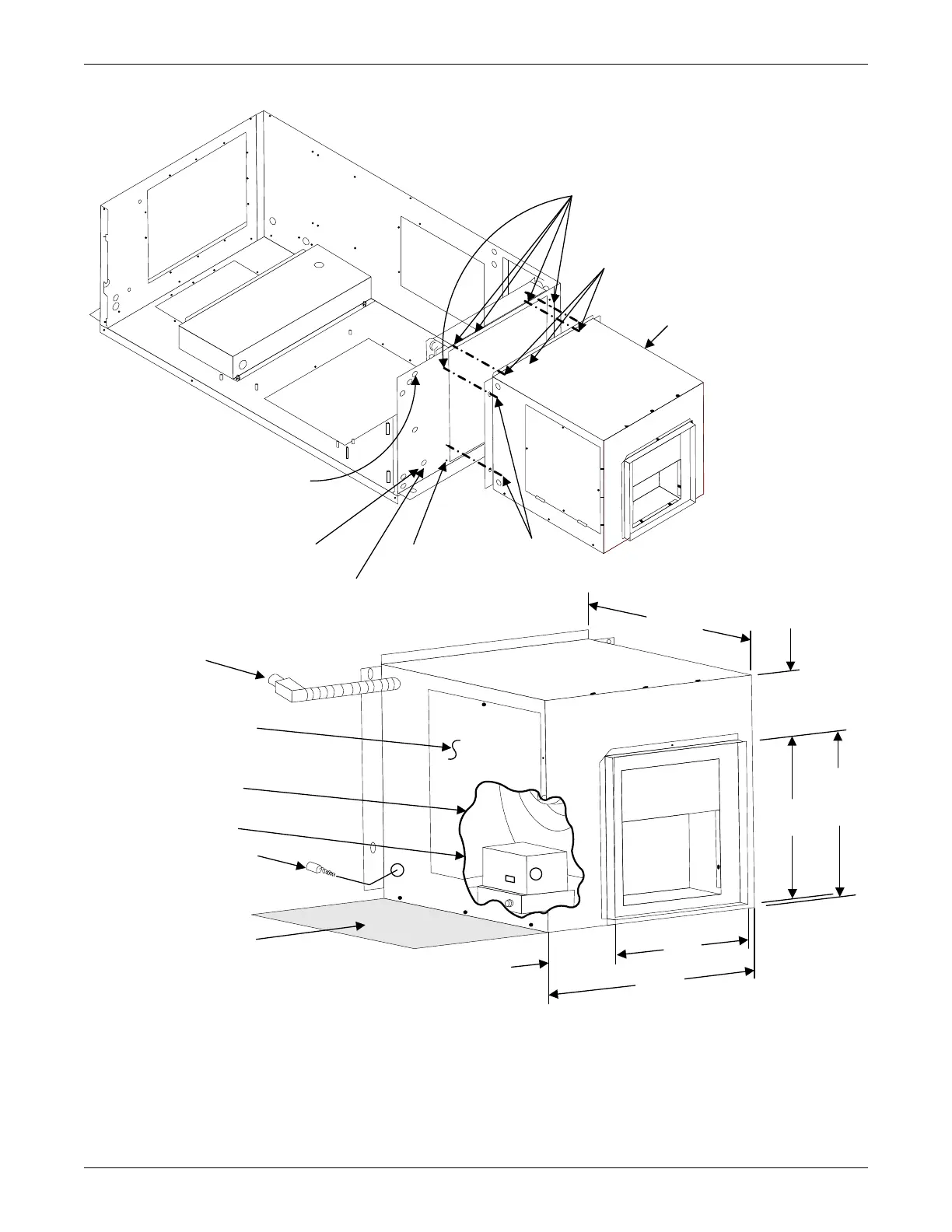

Figure 23 Centrifugal condenser fan dimensions and installations
Do Not Remove
This Screw,
Either Side
Item 2, 3
Screw and Washer
(Both Sides)
Item 4
Remove This Knockout
and Place Item 4 Here
Remove This Knockout
Fasten Blower Harness
Connection Here
Item 1
Item 2 Screw
Only (Top)
Step 2, 3
Remove These
Screws First
High- and Low-Voltage
Wire Harness
See Unit Schematic for Wiring
Blower and
Motor Assembly
Blower Motor and
Controller Access
Cover
Fan Speed Controller
Capillary Tube From Fan
Speed Controller.
Screw onto Access Valve in
Discharge Line (Inside Unit)
Shaded area indicates
a recommended clearance
of 24" (610mm) for component access
5.3"
(135mm)
12"
(305mm)
18".6
(472 mm)
12"
(305mm)
17".25
(438mm)
.56"
(14mm)
20"
(508mm)
4.7"
(119mm)
