XWEB PRO 14/23
6.3 CROSSOVER CABLE INSTRUCTIONS

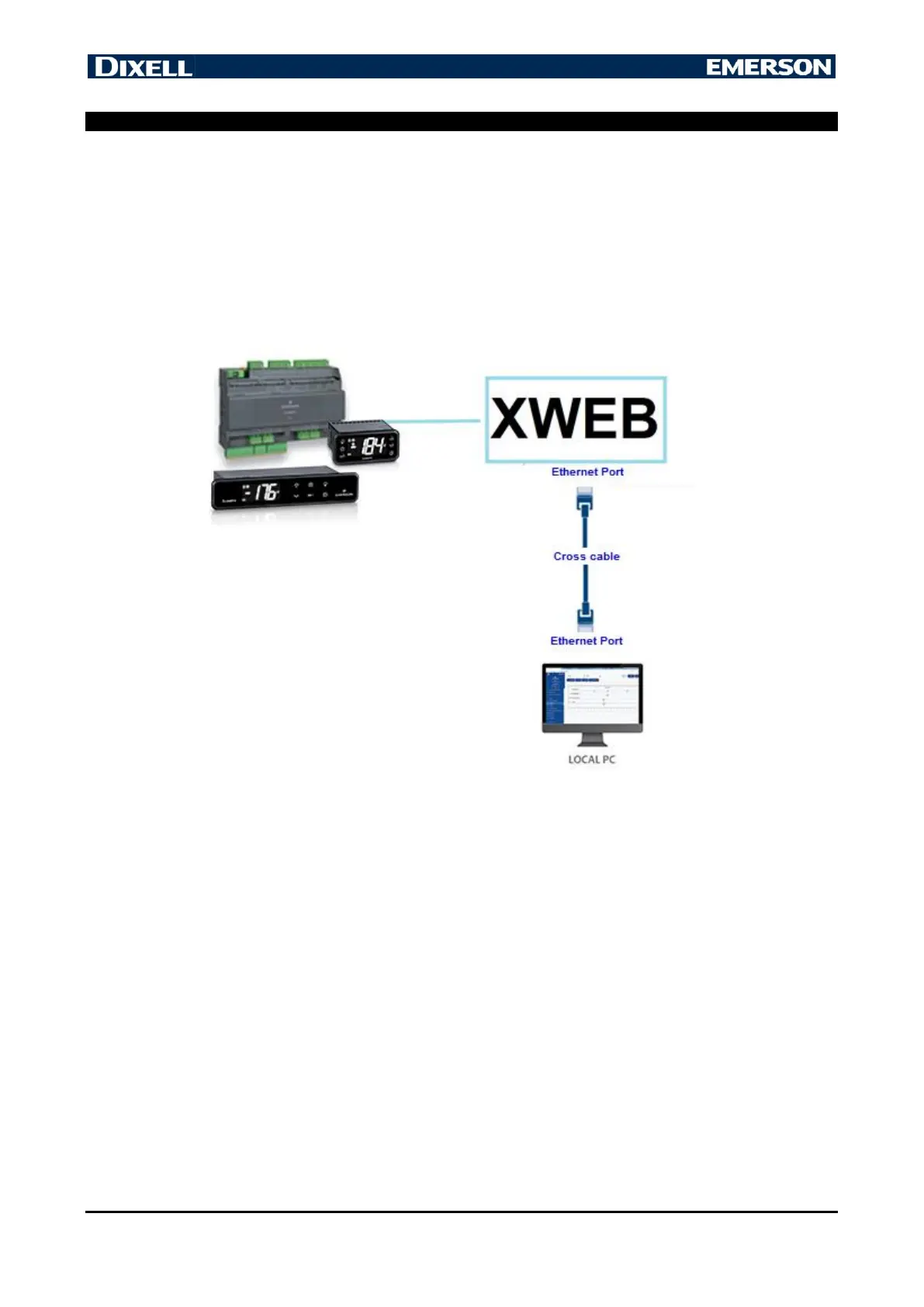

Local access from the PC is the fastest way to manage the setup. It is possible to connect a PC to XWEB via
the network interface supplied with the 'RJ45 Ethernet connector'. The connection between the two must be
made via a crossed network cable (aka 'cross cable'). This cable is available in any computer store. After the
physical connection, launch the browser of your PC and enter http://192.168.0.150 in the address bar.
Displaying the initial page (login) will complete the connection procedure. Enter username and password to
start using your XWEB.
Warning: a prerequisite to be able to connect correctly is the compatibility of the IP class between the XWEB
address and that of the network interface of your PC. For example, with the XWEB network interface
configured at 192.168.0.200, the network interface of your PC can be configured with at 192.168.0.15
In order to configure the network interface of your PC, administration privileges are normally required. Refer
to the documentation of your PC's operating system. The following figure shows the steps to be taken to
configure the network interface of a PC with WINDOWS.
