5. INSTALLATION
5.1 XWEB
For installation, the XWEB system must not be open in any way. If the box is opened, the guarantee
becomes void. Installation can take place in different ways depending on the model and the type of access to
the user interface that you want to provide to the end user. The particularities of these types of connectivity
are described in this manual.
ATTENTION: in order to protect both yourself and the XWEB, the unit must be switched on only when all the
electrical devices have already been connected. In order to avoid accidental switching on, insert the power
cable only after connecting all the other external units.

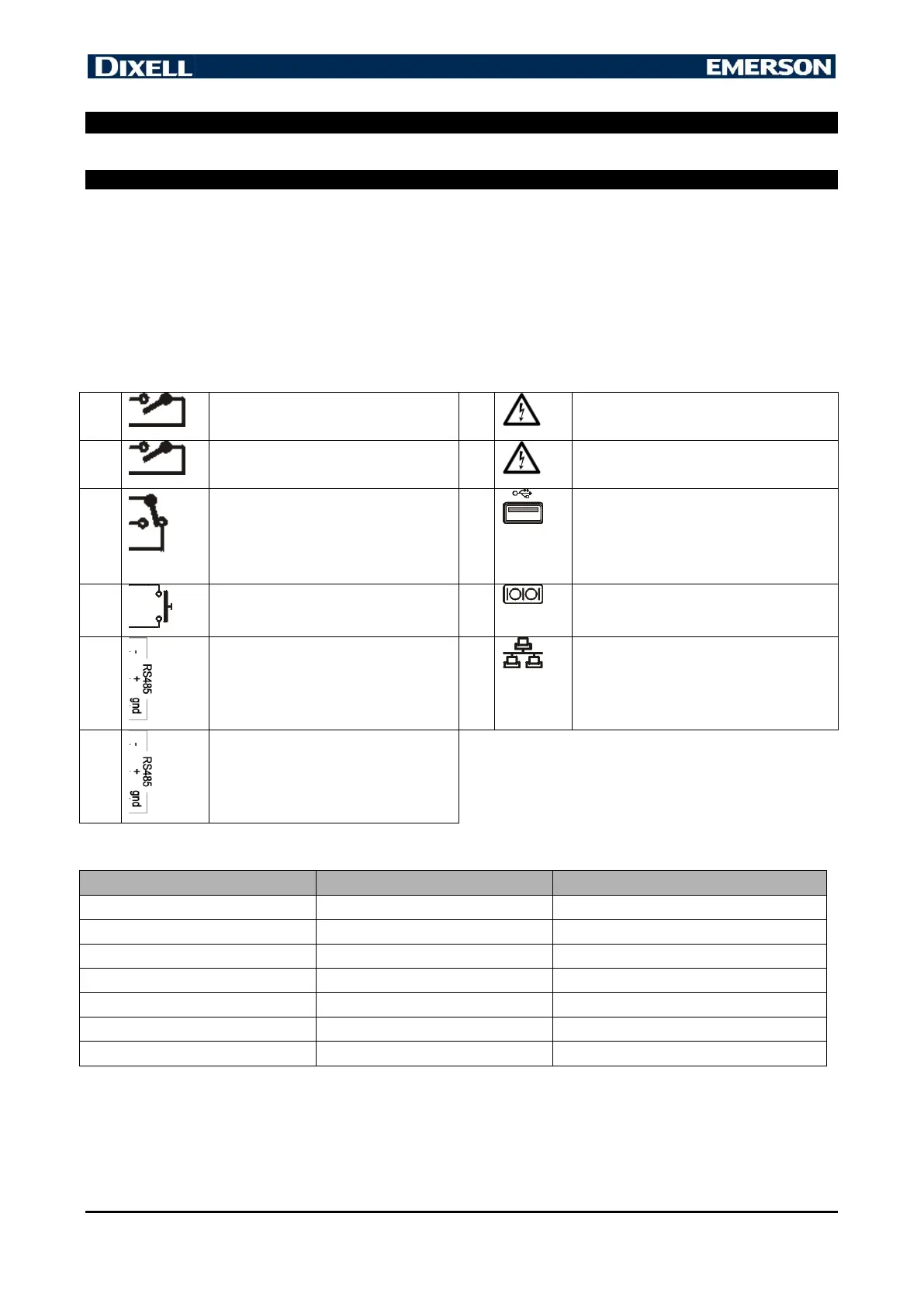

TERMINAL BLOCK
26
27
Alarm Relay 1 (**)
1
2
Power XWEB
28
29
Alarm Relay 2 (**)
33
34
External GSM modem power supply (*)
30
31
32
System Alarm Relay
* 30-31 No Allarm
* 30-32 Alarm
USB port
6
7
Ingresso digitale (**)
COM port
14
15
16
RS485 A port
RJ45 port
17
18
19
RS485B port (**)
LED
Led
Colour
Description
Alarm
Red
RS485 alarm
Rec
Blue
Data recording
Power
Green
System turned on
Status
Green
Messages are being sent
System
Red
System alarm
Alarm2
Red
Alarm relay 2 status (**)
Alarm1
Red
Alarm relay 1 status (**)
(*)= 12Vdc - 250mA. Compatible modem TC35-KIT (MC55i by Siemens, CINTERION L30960N2700A100),
Gatetel GT-HE910-EUD, Gatetel GT-HE910-NAD
(**)= For XWEB 500DIN only
