EMKO ESM-9910 - 3.7 Galvanic Isolation Test Values of ESM-9910 Temperature Controller; 3.8 Output-1 Connection

3.7 Galvanic Isolation Test Values of ESM-9910 Temperature Controller
Supply Input
10
11
Ground
2
Output-1
Relay Output
7
8
9
4
5
Analogue
Inputs
1
3
Output-2
Relay Output
2000V V
2000V V ( For ESM-9910.5...,ESM-9910.4.... )
500V V ( For ESM-9910.3....,ESM-9910.2.... )
2000V V
2000V V
2000V V
2000V V

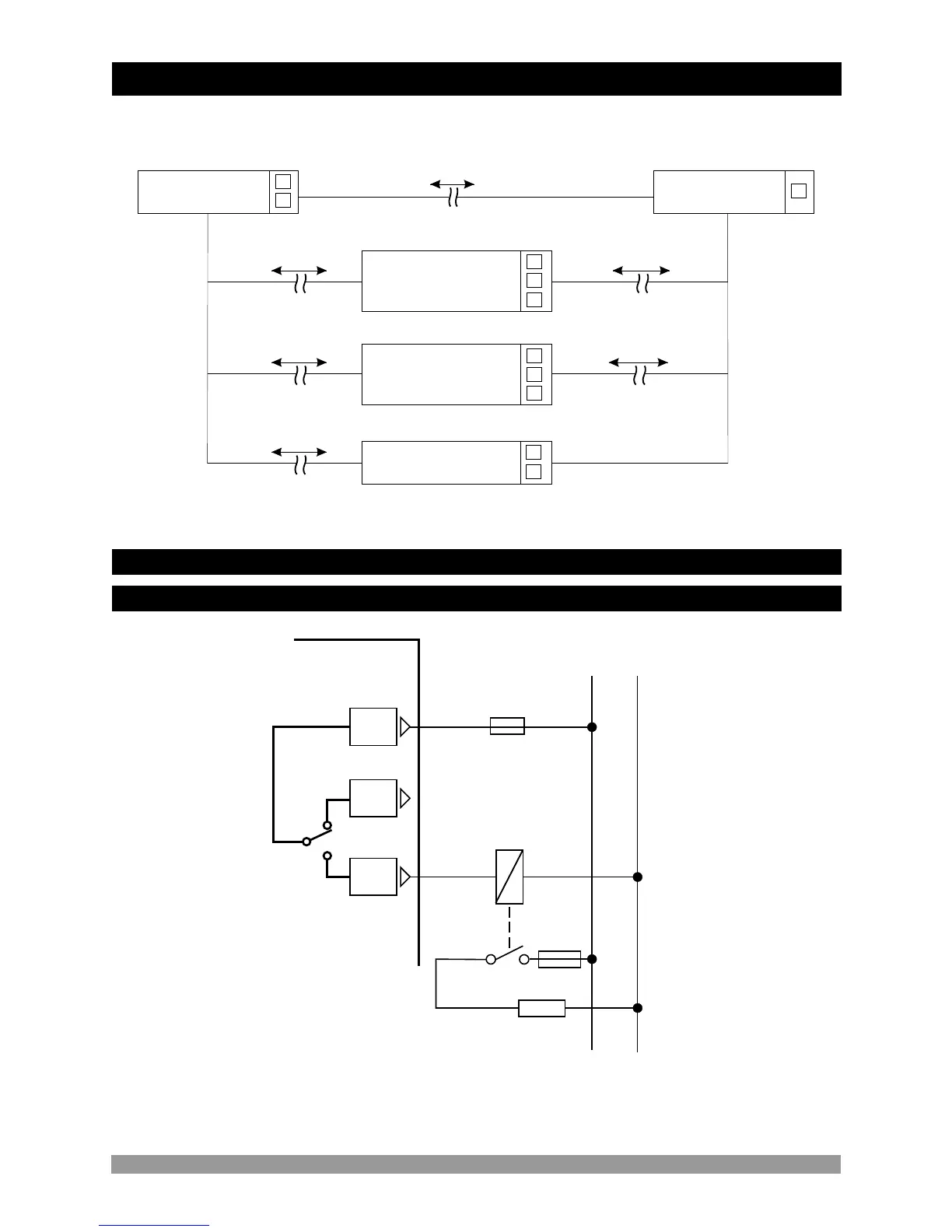

3.8.1 Output-1 (Relay Output) Connection
Fuses must be selected according to the application
c
Device
7
8
Fuse
Load
L N
Last Control Element
(Contactor)
c
9
7A V T Fuse
C
NC
NO
6
18
3.8 Output-1 Connection
