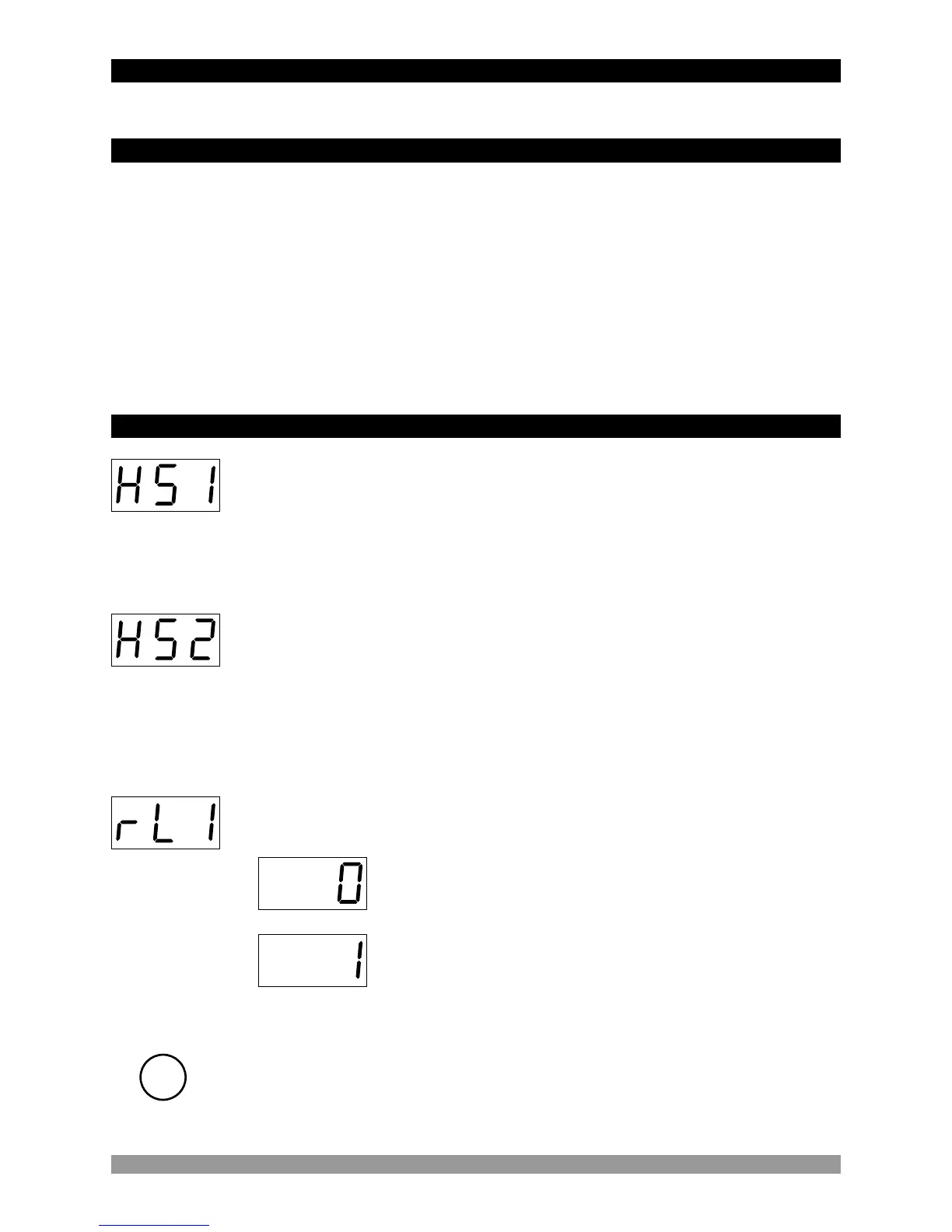

5. Parameters
5.1 Set Parameters
SET1
SET2
5.2 Program Parameters
Parameters are divided into two groups as SET and PROGRAM parameters.
SET value for Output-1. Control of output-1 relay is done according to this
value.
This value can be adjusted according to input type, minimum and maximum
of scale.
SET value for Output-2. Control of output-2 relay is done according to this
value.
This value can be adjusted according to input type, minimum and maximum
of scale.
THIS PARAMETER IS NOT ACTIVE IN DEVICES WITH ONE RELAY.
Operation Type Selection parameter for output-1.
Operation type of output-1 relay can be adjusted as
“HEATING”. Normally energised.
Operation type of output-1 relay can be adjusted
“COOLING”. Normally de-energised.
“Hs2” and “rL2” PARAMETERS ARE ACTIVE IN DEVICES WITH TWO RELAYS.
If no operation is done in programming or Set value mode for 20 seconds, device
turns to main operation screen automatically.
41
Hysteresis Parameter for Output-1 ( Default = 3 )
1 to 100 °C for TC Type Devices,
1 to 100 °C for PT-100 (0°C , 400°C),
1.0 to 10.0 °C for PT-100 (-19.9°C, 99.9°C),
1 to 100 °C for PTC (-50°C, 150°C),
1.0 to 10.0 °C for PTC (-19.9°C, 99.9°C) and NTC (-19.9°C, 99.9°C)
1 to 20 °C for NTC (-50°C, 100°C)
Hysteresis Parameter for Output-2 ( Default = 3 )
1 to 100 °C for TC Type Devices,
1 to 100 °C for PT-100 (0°C , 400°C),
1.0 to 10.0 °C for PT-100 (-19.9°C, 99.9°C),
1 to 100 °C for PTC (-50°C, 150°C),
1.0 to 10.0 °C for PTC (-19.9°C, 99.9°C) and NTC (-19.9°C, 99.9°C)
1 to 20 °C for NTC (-50°C, 100°C)
