3. INSTALLATION
Compliance with the following Directives:
2014/30/UE; 2014/35/UE; 2014/53/UE; 1999/519/UE; 2012/19/UE; 2006/1907/UE
Thermostat function
Relay output N.0.
max 5 A 230 ~
Supply electric 230V ~
Switch magnetothermic In=0,2 A
Contact presence
Contact Window
L N
White
Black Com
Gray
Section cable 0,5 mm
2
(AWG20), shielded
maximum length 20 m
Section cable 0,5 mm
2
(AWG20) braided and shielded
Maximum length 100m
Febos-Power Cod. 07245140
Thermostat function
Relay output N.0.
max 5 A 230 ~

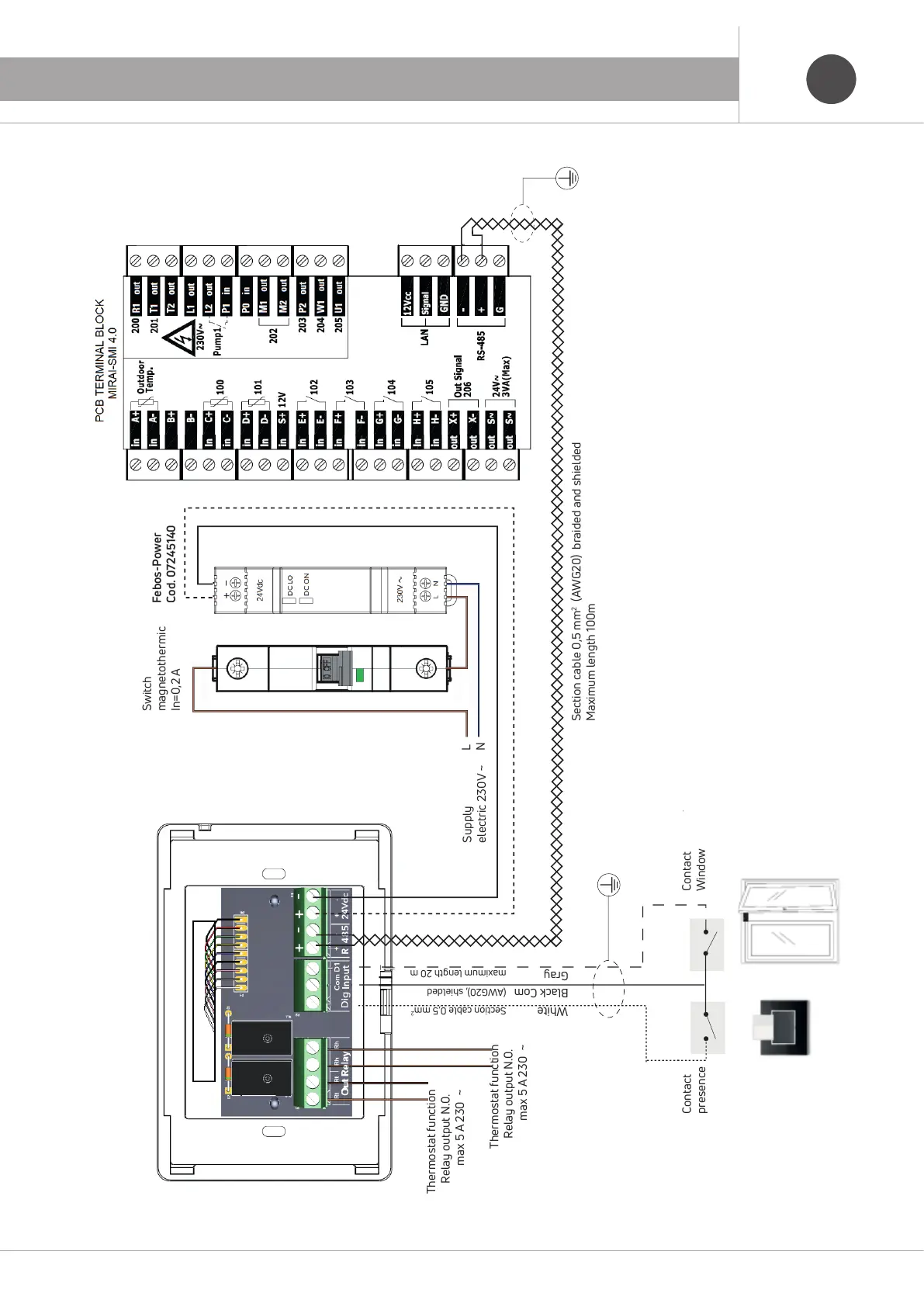

3.1 Electrical connection diagramFEBOS-CRONO with the Relay TBR board
NB: It is absolutely forbidden to lay signal cables (RS-485) together with power cables with voltages >50 V. The Febos-Crono power cable must be dimensioned in such a way as to guarantee a mini- mum power supply voltage of 18VdC.
