8. INSTALLER SCREENS
8.3 HEAT PUMP screens - SERVICE
Carefully read the manual that accompanies the
Heat Pump before changing the values of the
following screens.
Press the icon
and scroll through the screens .
8.3.1 CLIMATE CURVES
Screens 4.6 and 4.7 define the Climate curves and the limitations
applied to the water target temperatures set in screens 4.4 and
4.5.
The Climate Curve is nothing more than the correction applied
to the target water temperature, as a function of the external
temperature.
There are the following 2 cases:
• if par. C405=0, theClimate Curve is applied exclusively toSet1
(daily screed programming).
• if par. C405=1, the Climate Curve is applied exclusively to Set2
(fan-coil).
In addition, the external reference temperature for the climate
curve:
• if C405=0, it is updated daily at 6:00.
• if C405=1, it is updated constantly.
Adjustment logic in heating
CASE 1 - Set 1 in normal operation.
• = daily screed programming + Climate curve.
• = .
CASE 2 - Set 1+
or or with close to
.
•
=
• =
Previous screen
External Temp for DT_Max (Par. C521)
External temp for DT=0 (Par. C522)
Par. C541
Maximum correction
DT_max (Par. C523)
Graphic representa-
tion (external temp.,
DT Set)

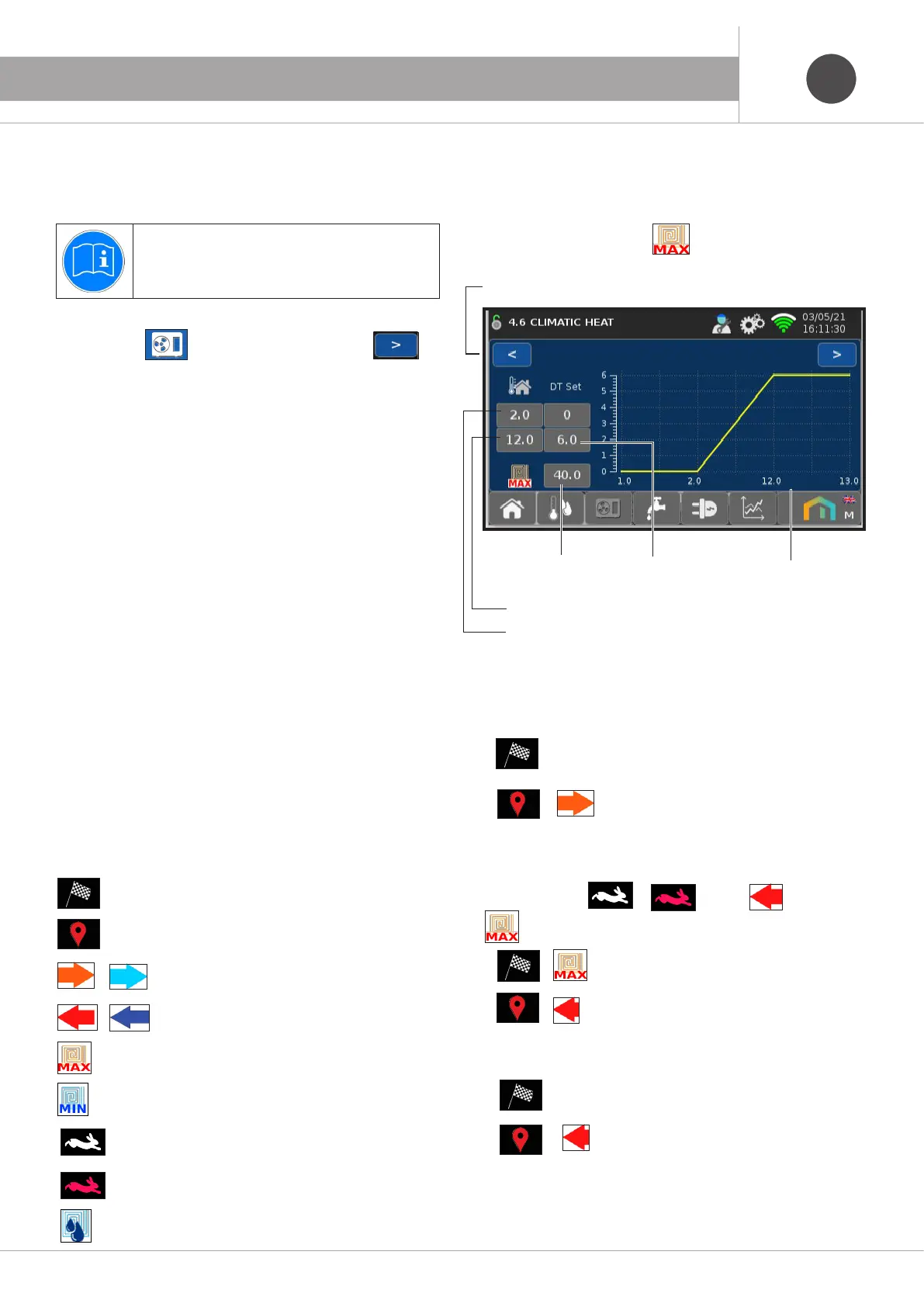

Screen 4.6 defines the Climate curve
in heating.
In addition, the maximum temperature of the hot water at the radi-
ant system is set (Par. C541)
CASE 3 - Set 2
•
= Set 2+Climate curve (If C405=1)
•
=
NOTE: Legend of symbols used in this paragraph:
- = water Target temp.
- = Current water temp.
- / = temp. of the water entering the HP (Return)
- / = temp. of the water output to the HP (Delivery)
- = max hot water temp at the radiant system
- = min. cold water temperature at the radiant system
- = Manual Boost
- = Automatic Boost
- = Target time for dehumidifier
