88
GBGB

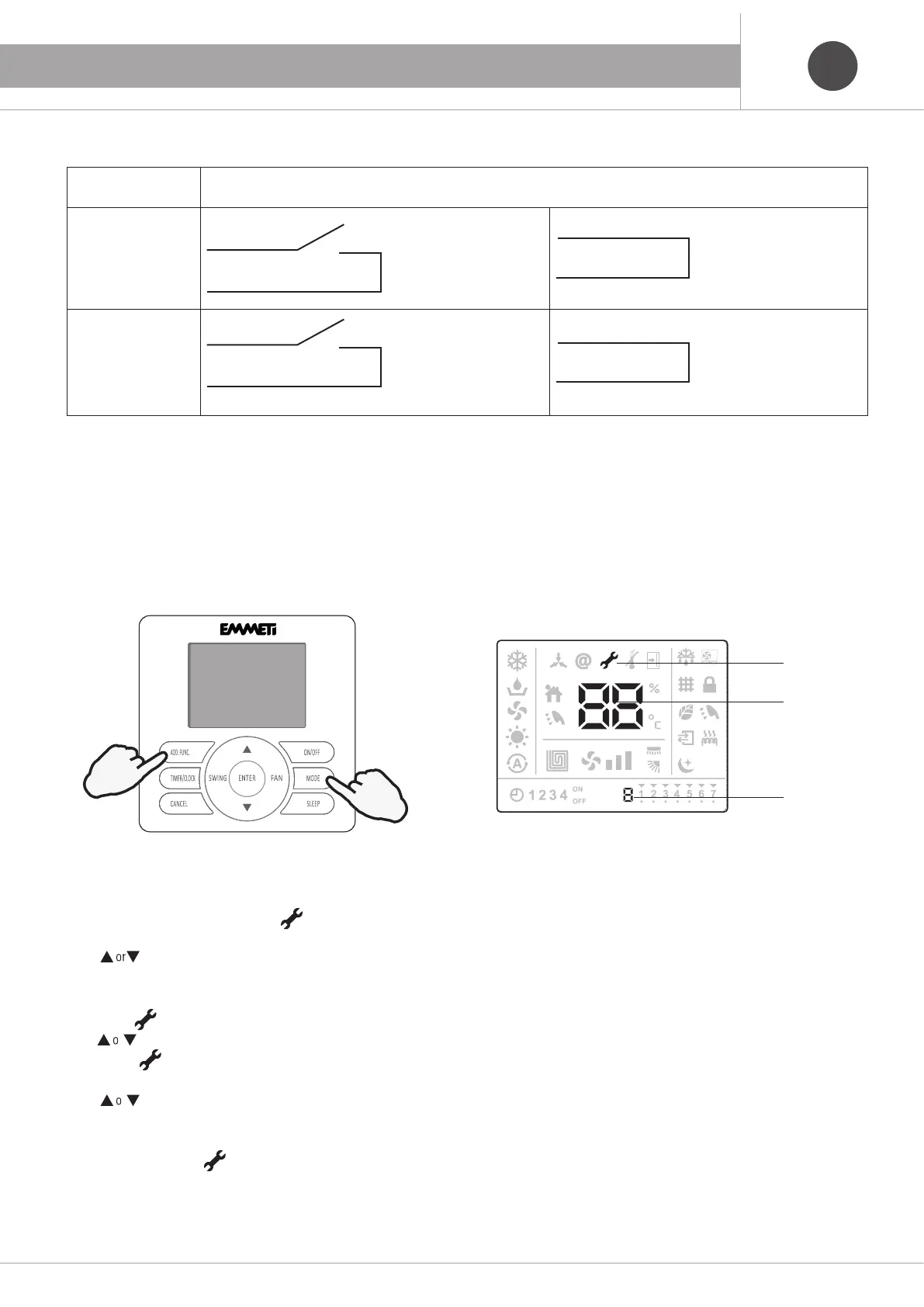

12. ELECTRICAL DIAGRAMS AND CONNECTIONS
Parameter 25
Wired control
CONTACT WINDOW / PRESENCE
3
(factory setting)
White 2
White 3
The unit turns off
White 2
White 3
Unit is in stand-by
(can be turned on only trough IR control/wired control)
4
White 2
White 3
The unit turns off
White 2
White 3
Unit turns on in the previous
operating mode
确定
2. Factory setting / Factory settings
The configuration n. 3 in the table.
It is possible to change the default settings using the X-REVO WC1 wire
command (accessory not supplied with the unit, code 07917515).
Error indicator
Parameter code
Function code
NB: When using this input, the red wire must not be connected
Procedure:
Press and hold the “MODE” and “ADD.FUNC.” Buttons for 3 seconds
buzzer will emit a sound and the symbol
and the code of the para-
meter will flash simultaneously on the display.
Press:
the parameter number increases or decreases
of 1 unit (from 0 to 25). Press until parameter 17 is displayed and ENTER
to confirm.
The symbol
stops flashing, the parameter code flashes again.
Press
and enter parameter 25, ENTER to confirm.
The symbol
and the number 25 no longer flash, the function code
starts to flash.
Press:
the function code increases or decreases by 1.
Select the desired configuration (3 or 4 - see table), press ENTER to
confirm.
Following confirmation
, the symbol no longer flashes and the
number 25 starts to flash again.
Press the “ON / OFF” key or the “CANCEL” key to exit.
