EMP OP80 - EMP-Link Control; Example EMP-Link Application Schematic

EMP-Link Control
© 2019 EMP, Inc. 13
EMP-Link Control
On EMP Systems controlled via a system controller, µTMC or TMC, R20L
components are controlled by the system controller via EMP-Link communication.
EMP-Link is an EMP proprietary communication protocol used for component
communication on EMP thermal systems. Reference the system service manual for
more information.

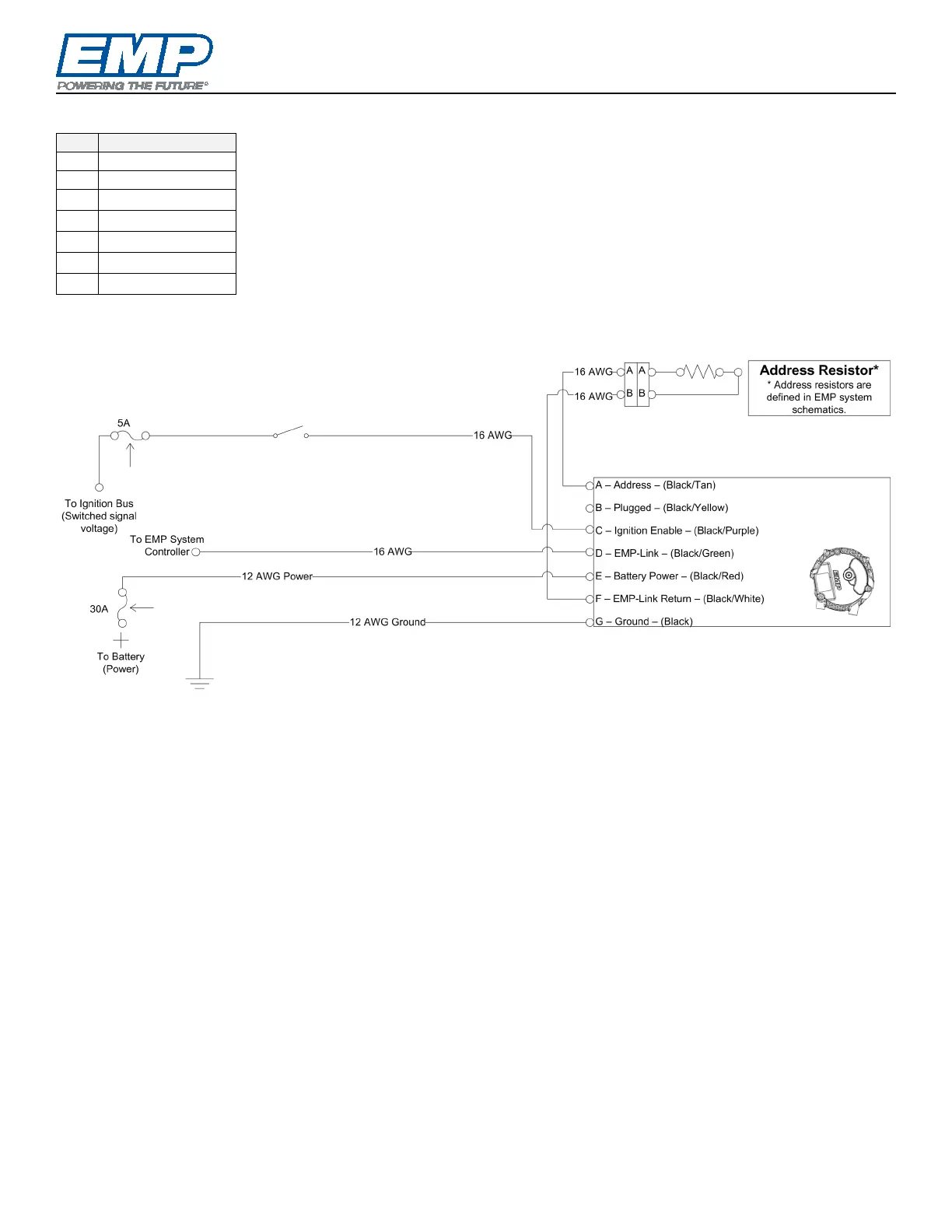

Example EMP-Link Application Schematic
Pin
Purpose
A
Address
B
Plugged
C
Ignition enable
D
EMP-Link
E
Battery power
F
EMP-Link return
G
Ground
