EMP OP80 - Component Connector; 10-Way Male Apex 2.8 Mm Sealed; Mating Connector; 10-Way Female Apex 2.8 Mm Sealed

Connectors
© 2019 EMP, Inc. 8

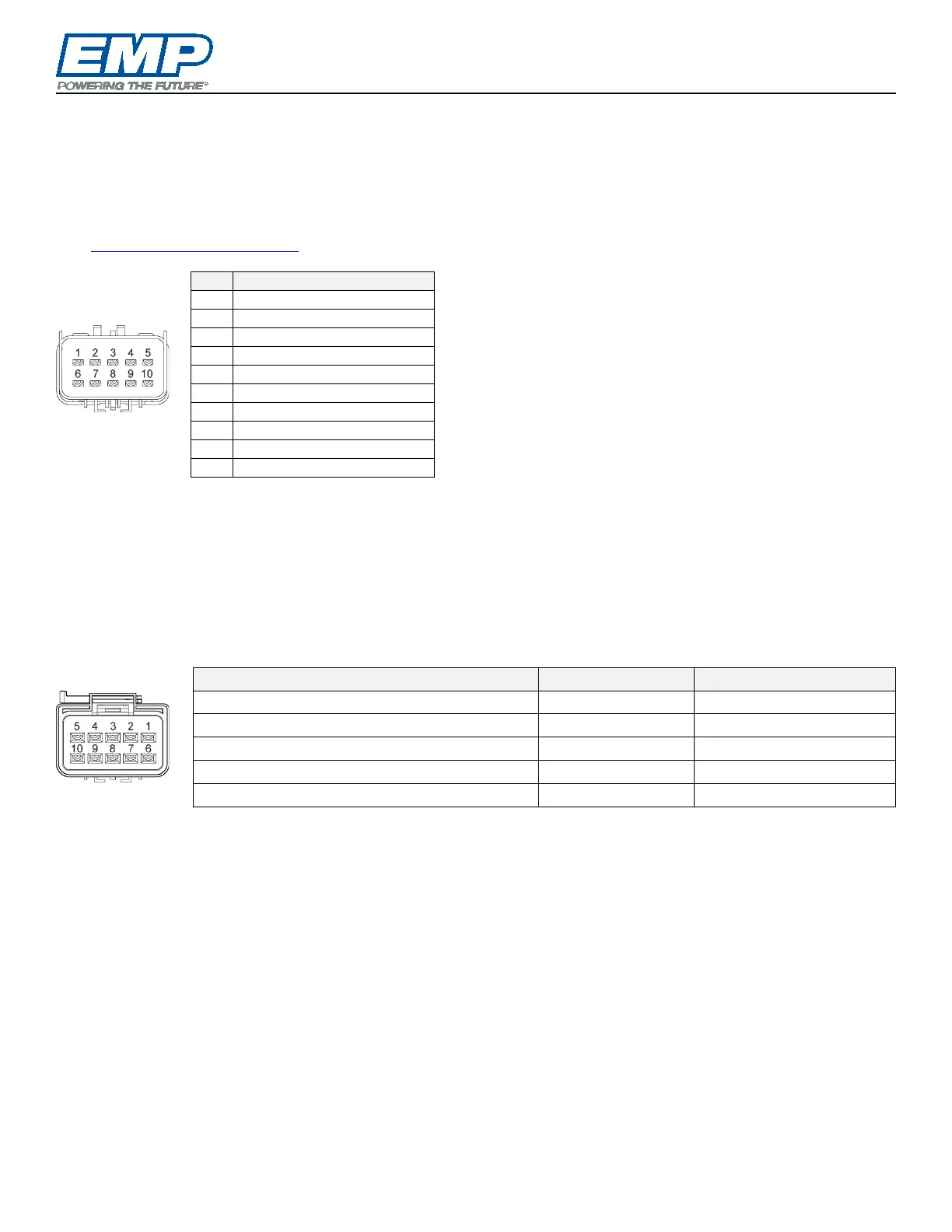

Component Connector
NOTE: Do not disconnect the component while it is running; stop running the component prior to
disconnecting the connector.
10-way Male Apex 2.8mm Sealed
See Service Parts Replacement for component connector part numbers.
Pin
Wire Size and Color
1
10 AWG Black/Red
2
Plugged
3
16 AWG Black/White
4
16 AWG Black/Tan
5
16 AWG Black/Yellow
6
16 AWG Black/Purple
7
Plugged
8
10 AWG Black
9
Plugged
10
16 AWG Black/Green
Mating Connector
NOTE: EMP service kit 1370106076 contains all parts needed for one mating connector.
NOTE: Ensure wires are sized appropriately for the application. Wire gauges and circuit protection shown in
this document are suggestions.
10-way Female Apex 2.8mm Sealed
Detail
Apex Part Number
Alternative Part Number
Connector
54201009
15316895
Terminal, Apex 2.8mm, Socket, 10–12 AWG
54001000
10762802
Terminal, Apex 2.8mm, Socket, 14–16 AWG
54001400
10762803
Terminal, Apex 2.8mm, Socket, 18–20 AWG
54001800
10757690
Apex 2.8mm Grey Plug 54200005 N/A
NOTE: All cavities in the mating connector must either be terminated or plugged to prevent moisture from
entering the component.
