Service Parts Replacement
© 2019 EMP, Inc. 15
Service Parts Replacement
WARNING: To avoid serious personal injury, possible death, or damage to the vehicle, disconnect the
main negative battery terminal and/or switch off the battery disconnect switch first before removing or
installing any components.
WARNING: To avoid burn injuries, allow time for the engine to cool to a safe working temperature
before removing or installing any components.
CAUTION: To avoid potential damage to the wiring and/or hoses, route all wires and hoses away from
any sharp edges, moving objects, and heat sources.
CAUTION: All wires should be secured every 12–18 inches. All zip ties must be placed over wire
loom/convoluted tubing and not over bare wires.
NOTE: Refer to service drawings for proper torques. You can obtain the manual at
http://www.emp-
corp.com/support/documents/ by searching for the component part number.
R20C Component Connector
NOTE: All cavities in the connector must either be terminated or plugged to prevent moisture from entering
the component.

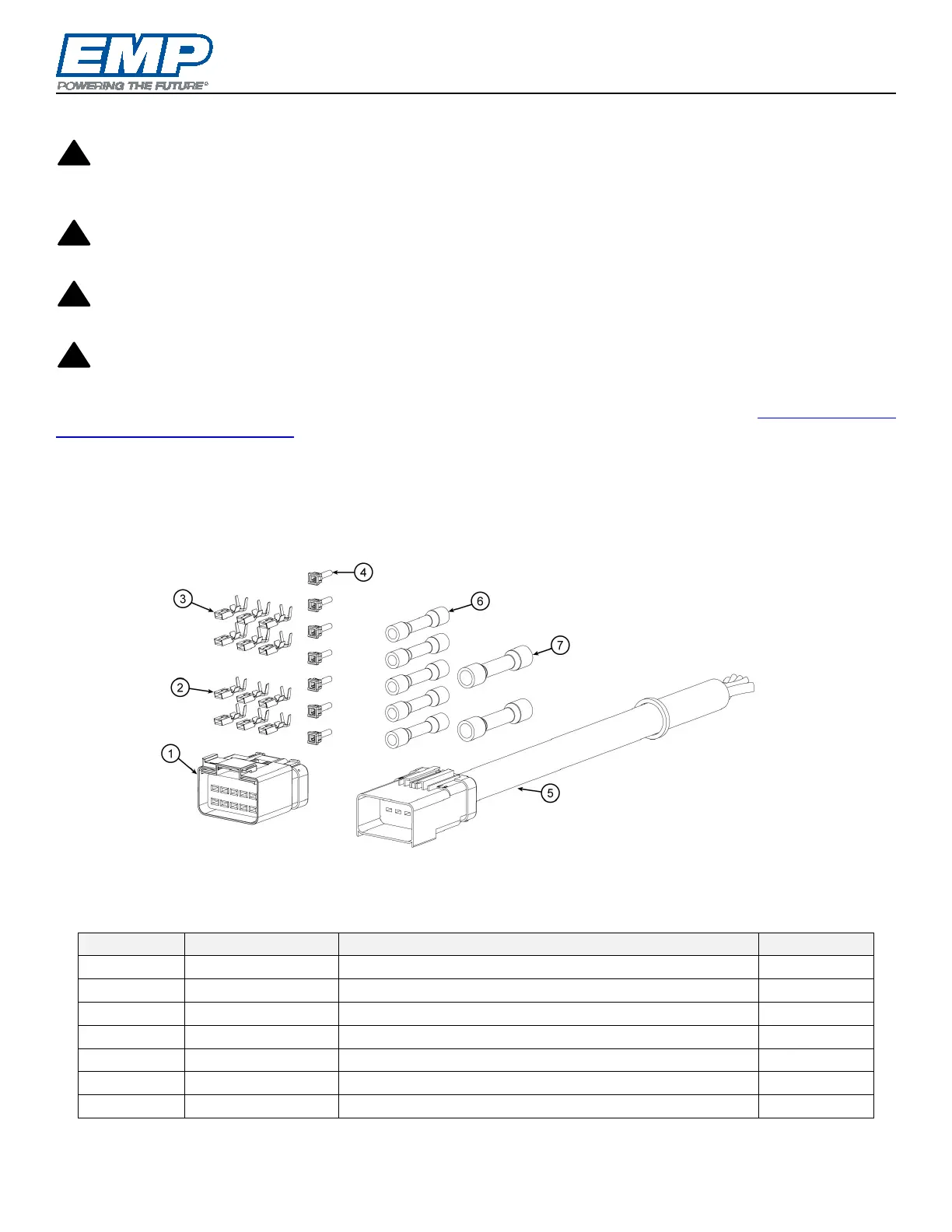

10-Way Connector Replacement Kit 1370106126
R20C Power and Communication 10-Way Connector Replacement Kit 1370106126
Item
Part Number
Description
Quantity
1 3250106067 Connector – Apex 2.8mm, F, Black, 10 Pos Sealed 1
2
3210106071
Terminal – Apex 2.8mm, F, 18–20 AWG, Tin Plated
6
3
3210106070
Terminal – Apex 2.8mm, F, 14–16 AWG Tin Plated
6
4
3250106072
Plug – Apex 2.8mm Gray
7
5
3180106119
Cable Asy, R20CT, Apex Replacement
1
6
3250036079
Molex Butt Connector 16–14 AWG
5
7
3250002166
Molex Butt Connector 12–10 AWG
2
!
!
!
!
