EL – Owner’s Manual – Rev.00 – September 2021 13
Hydrogen Outlet Connection Guide (H
2
OUT)
Connect the H
2
Out port, located at the bottom left of the front panel, directly to a hydrogen
storage.
Multiple electrolysers can be connected to a common line by combining the electrolysers in a 19” rack
via a common output line to the left of the devices and then connecting this H
2
line with the lines of
other racks.

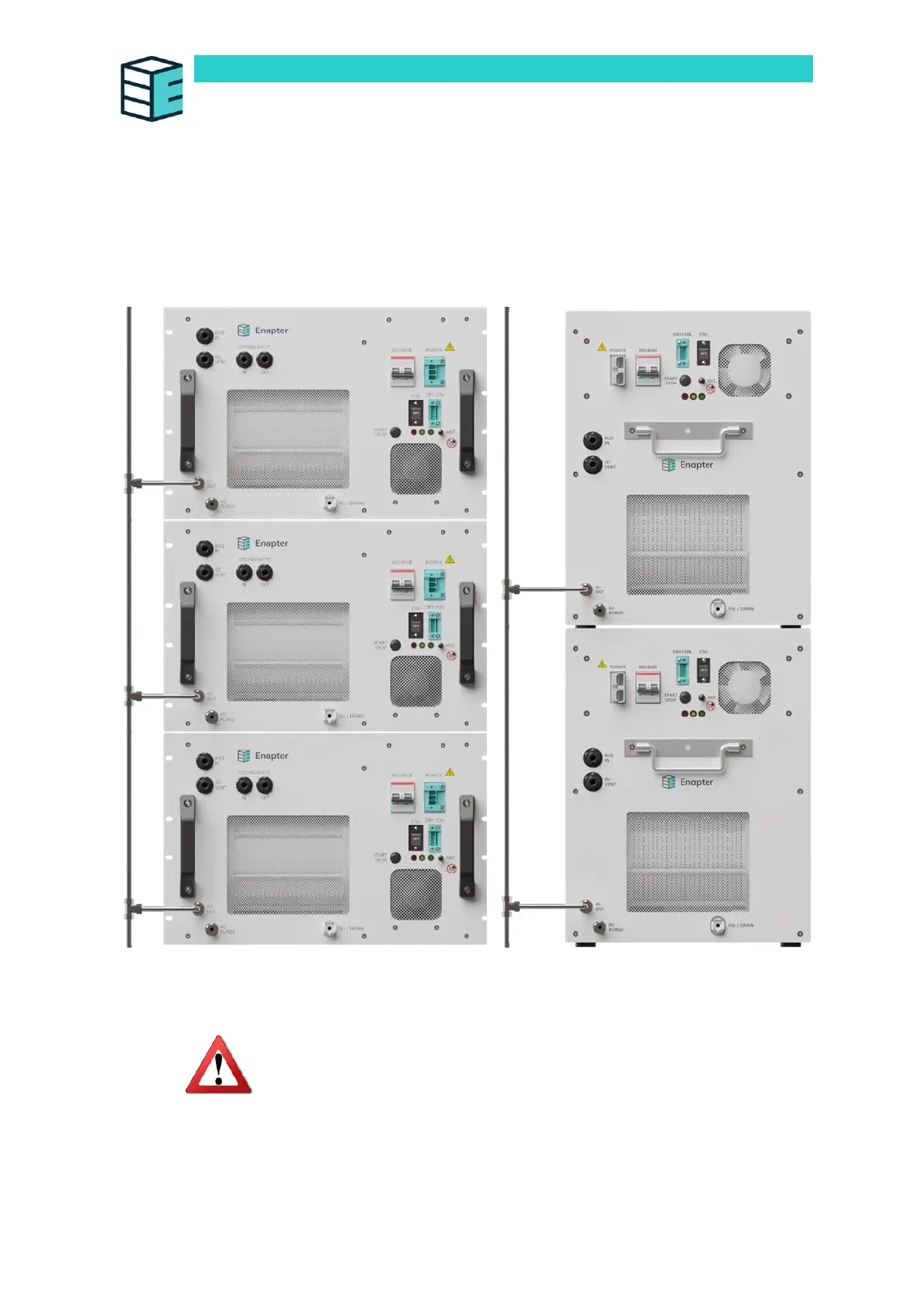

Three EL2.1 LC with common H2 OUT
Three EL2.1 DC with common H2 OUT
Warning!
All pressurised connections must be inspected and checked for leakages.
Failure to do so significantly increases the risk of explosion.
Enapter declines responsibility for any damage caused by improperly installed
equipment.
