EL – Owner’s Manual – Rev.00 – September 2021 2
6. Fill / Drain Port
• CPC quick connector 10 mm
• Only used during routine maintenance for filling the electrolyte into the device or for
draining and preparing it for transport.
7. Breaker – please refer to the Electrical Connection Guide
• Integrated magnetothermal circuit breaker to protect the electrolyser from
overcurrent and short-circuits.
8. Power – please refer to the Electrical Connection Guide
9. Dry Contacts – please refer to the Dry Contact Connection Guide
10. Ethernet – Connection to access external Modbus control features of the electrolyser. Find
more in the chapter below.
11. ANT. – Antenna port SMA male
• The device can be connected to the local network via Bluetooth and Wi-Fi, enabling
real-time updates and monitoring for the operator via the Enapter App and cloud. A
miniature antenna can be attached to this port to increase the amplification.
• Do not touch the port when the device is powered on!
12. Start/Stop – please refer to the Manual Start/Stop section below
• Manual start and stop button to start and stop the device
13. LEDs – please refer to the Appendix IV
• Status LEDs to show device status
14. Air Inlets – please refer to the Routine Maintenance

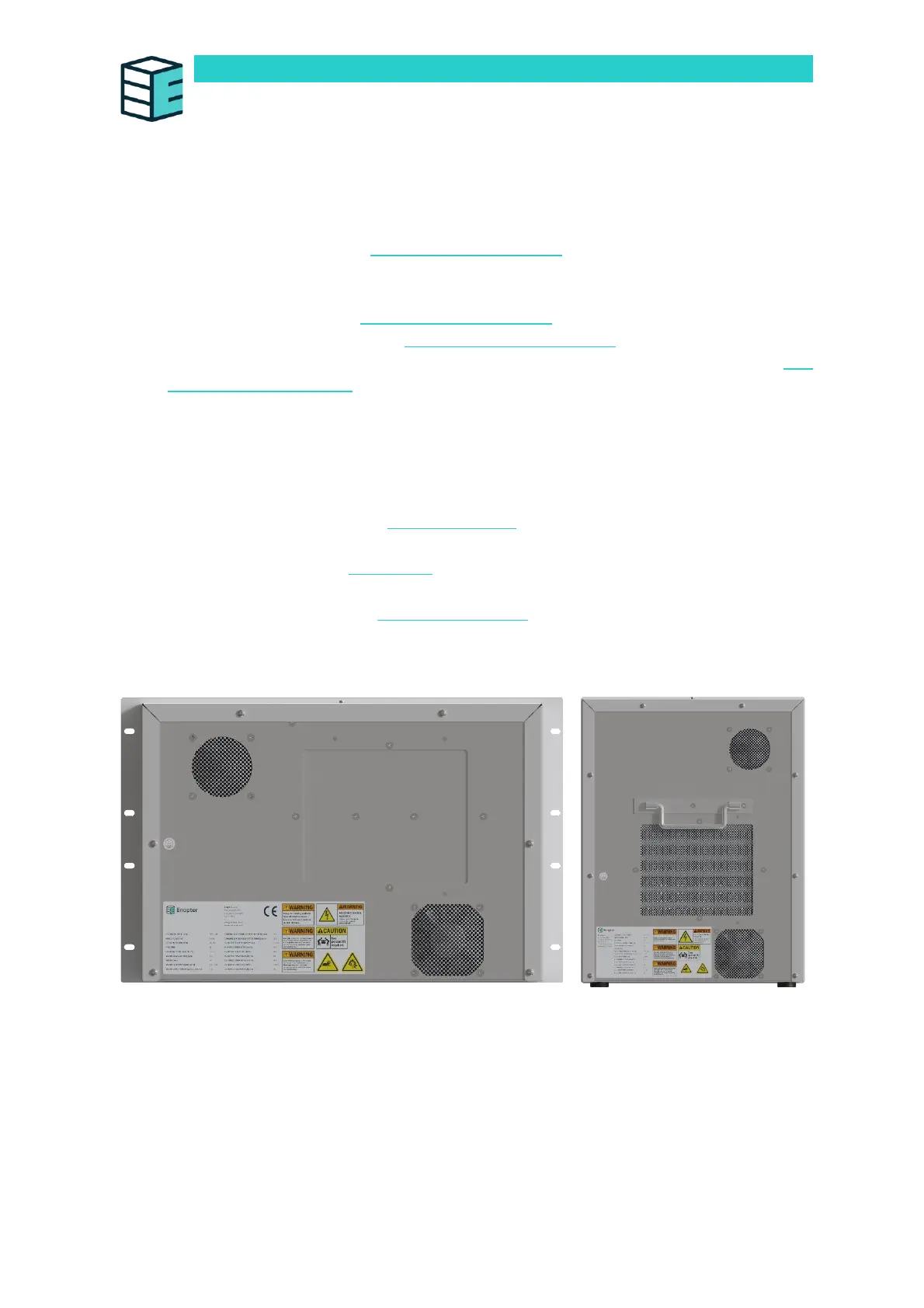

Back Panel
