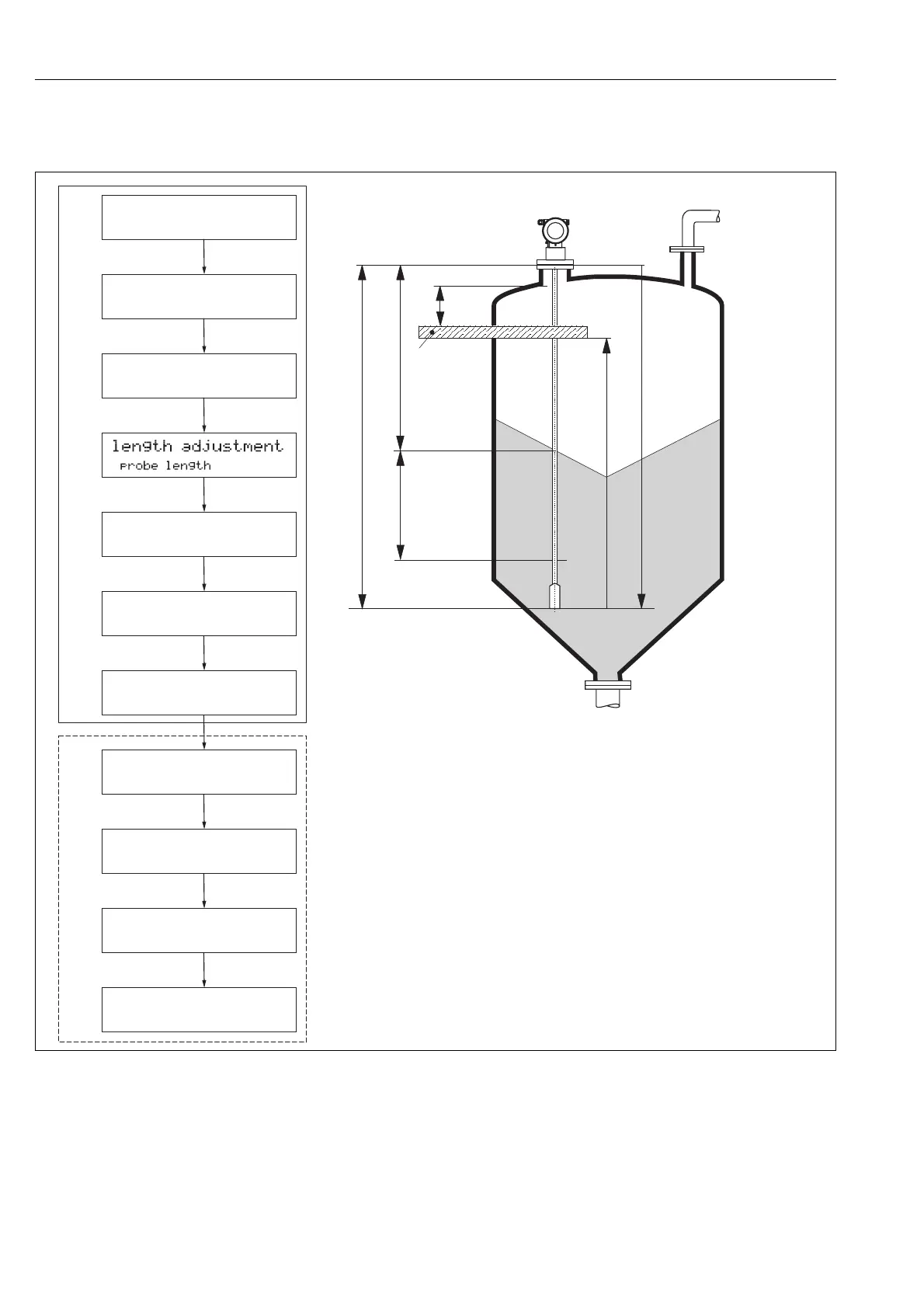

Operation Levelflex M FMP40 with PROFIBUS PA
54 Endress + Hauser
Configuration of the cyclic data telegram
Use the configuration software of your PLC in order to compose the data telegram from these
modules in one of the following ways:
1. Main value
In order to transmit the main measured value, selct the module "Main Process Value".
2. Main value and second cyclic value
In order to transmit the main value and the second cyclic value (temperature or measured
distance), select the modules in the following order: "Main Process Value", "2nd Cyclic
Value", "FREE PLACE".
3. Main value and display value
In order to transmitt the main value and to receive a display value select the modules in the
following order: "Main Process Value", "FREE PLACE", "Display Value".
4. Main value, second cyclic value and display value
In order to transmit the main value and the second cyclic value and to receive a display value,
select the modules in the following order: "Main Process Value", "2nd Cyclic Value",
"Display Value".
The exact way of performing the configuration depends on the configuration software of the PLC.
Structure of the input data (Levelflex M → PLC)
The input data are transmitted according to the following structure:
Structure of the output data (PLC → Levelflex M)
Die Output-Daten von der SPS für das Display am Gerät haben folgende Struktur:
Index
Input Data
Data Access Format/Remarks
0, 1, 2, 3 Main value (level) read 32 bit floating point number
(IEEE-754)
4 Status code for main value read see "Status codes"
5, 6, 7, 8
(option)
Secondary value (measured distance) read 32 bit floating point number
(IEEE-754)
9
(option)
Status code for secondary value read see "Status codes"
Index
Input Data
Data Access Format/Remarks
0, 1, 2, 3 Display value write 32 bit floating point number
(IEEE-754)
4 Status code for Display value write see "Status codes"
