6.1.4 Slots for I/O modules
The terminal compartment contains four slots (A, B, C and D) for I/O modules. Depending on
the device version (ordering features 040, 050 and 060) these slots contain different I/O
modules. The slot assignment for the device at hand is indicated on a label attached to the
back cover of the display module.
Spare parts for: Proservo NMS81
Ser.-no.:
8A21AC098AF4
Spare part
Spare no./structure
Displacer
Wire Drum
Additional information:
XPF0002-AABICR+
AAEAEBEFLALC76
XPF0002-AABEFEG+
XPF0002-AABEFEG+
XPF0002-AABEFEG+
XPF0002-AABEFEG+
XPF0002-AABEFEG+
XPF0002-AABEFEG+
XPF0002-AABEFEG+
XPF0002-AABEFEG+
71273689
7122xxxx
XPF0002-AABEFEG+
AAAAACDEFEG+
XPF0002-AAACABADJ+
AAHAHCHRIJJAJBKP
71023451
71023451
71023451
Cover
IOM-V1
IOM-A/RTD
IOM-D
Slot A
Slot B
Slot C
Slot D
IO Mod FF
Display
Display asm.
Detector
Main electr.
SMS electr.
6
7
8
9
10
11
12
5
4
3
2
1
www.endress.com/deviceviewer
9
4-8
2,3
1
11
10
12
1
D
C
B
A
A0030119

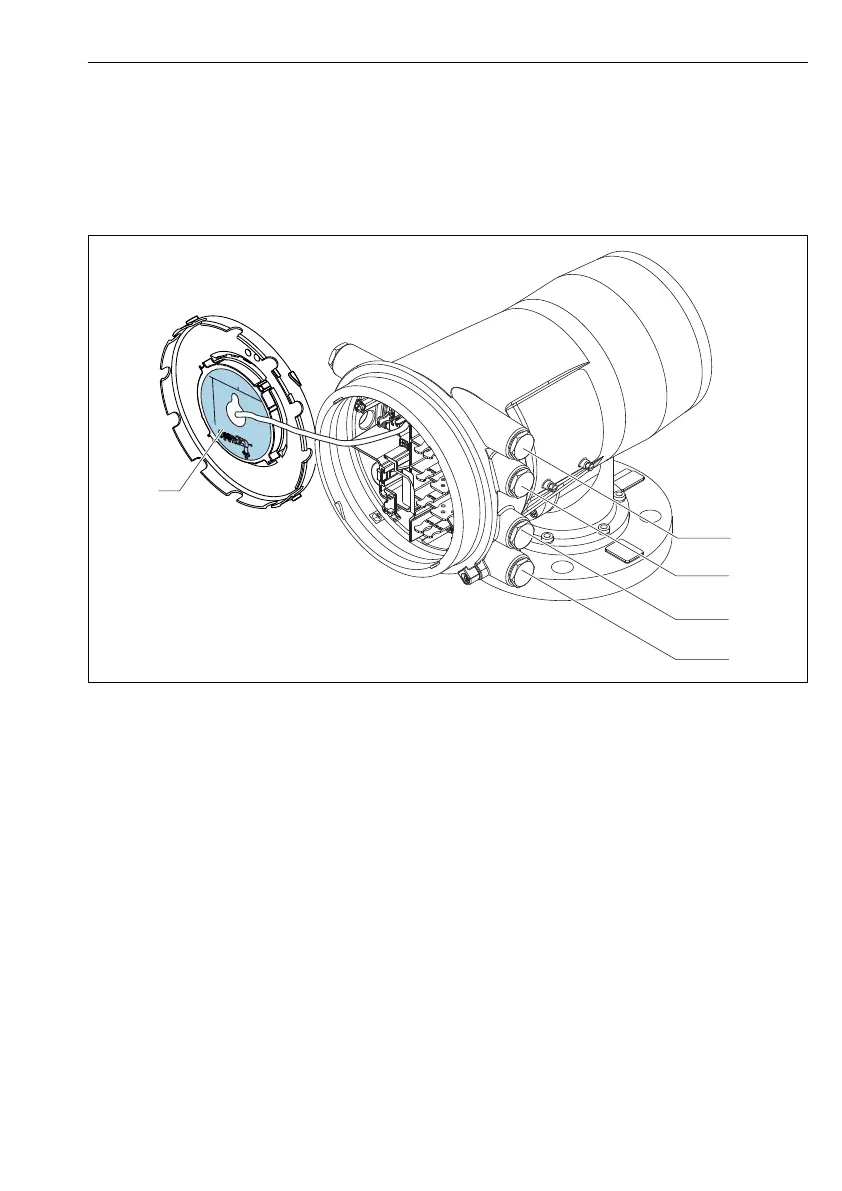

1 Label showing (among other things) the modules in the slots A to D.
A Cable entry for slot A
B Cable entry for slot B
C Cable entry for slot C
D Cable entry for slot D
