Electrical connection Proservo NMS80
32 Endress+Hauser
6.1.5 Terminals of the "Modbus" module, "V1" module or "WM550" module
D
E
F
C
B
A
1
1
1
1 3
2
2 4
1
HR
CDI
WP
on
SIM
2
2
3
3
4
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
POWER
A
1 2 3 4
A1-4
i
D
1
2 3 4
D1-4
A0031200

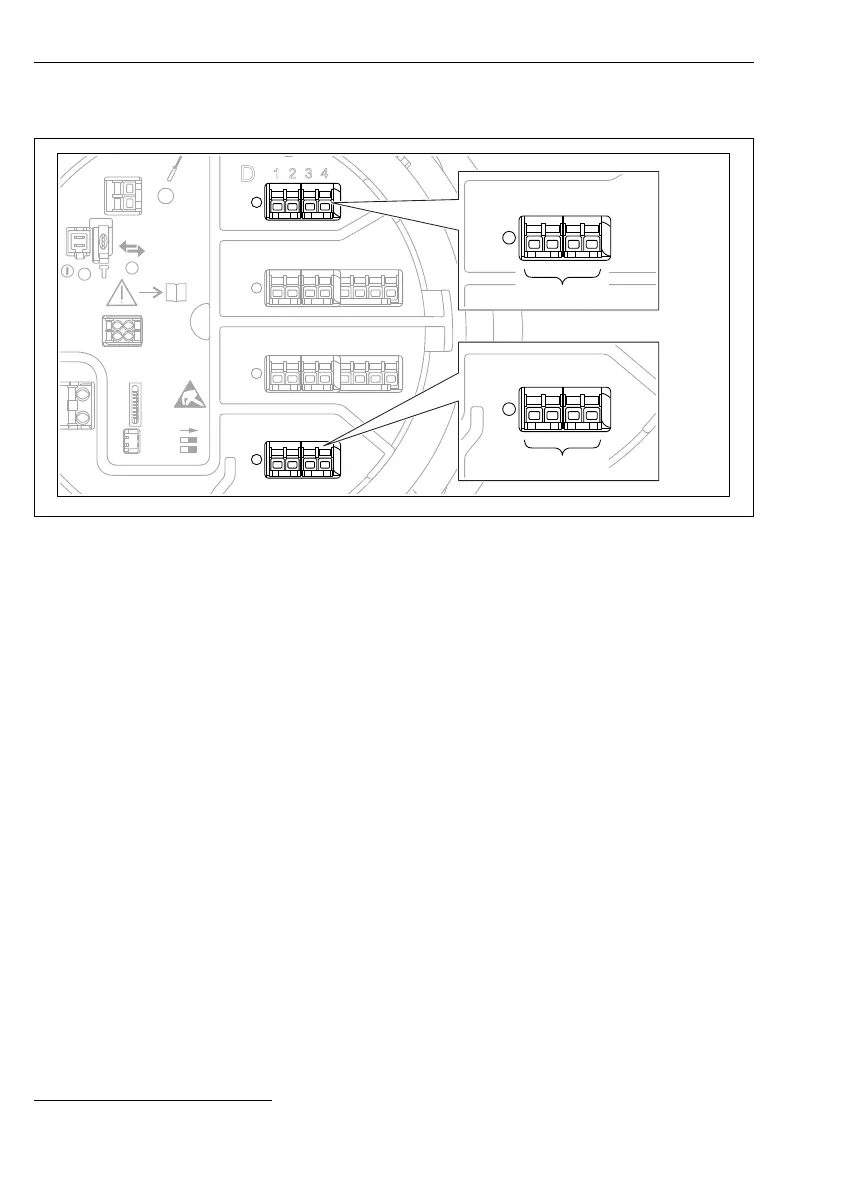

 11 Designation of the "Modbus", "V1" or "WM550" modules (examples); depending on the device
version these modules may also be in slot B or C.
Depending on the device version, the "Modbus" and/or "V1" or "WM550" module may be in
different slots of the terminal compartment. In the operating menu the "Modbus" and "V1" or
"WM550" interfaces are designated by the respective slot and the terminals within this slot:
A1-4, B1-4, C1-4, D1-4.
Terminals of the "Modbus" module
Designation of the module in the operating menu: Modbus X1-4; (X = A, B, C or D)
X1
1)
Terminal name: S
Description: Cable shielding connected via a capacitor to EARTH
X2
1)
Terminal name: 0V
Description: Common reference
X3
1)
Terminal name: B-
Description: Non-inverting signal line
X4
1)
Terminal name: A+
Description: Inverting signal line
1) Here, "X" stands for one of the slots "A", "B", "C", or "D".
