Commissioning Proservo NMS80
70 Endress+Hauser
7.8.2 HART output
This section is only valid for Operating mode = HART slave +4..20mA output.
Setup → Advanced setup → Communication → HART output → Configuration
Parameter Meaning / Action
System polling address Set the HART communication address of the device.
• Assign SV
• Assign TV
• Assign QV
Select which tank variables are to be transmitted by the HART variables.
By default, PV transmitts the same variable as the analog output and needs not to be
assigned.
7.8.3 Configuration of the Modbus output
D
E
F
C
B
A
1
1
1
1 3
2
2 4
1
HR
CDI
WP
on
SIM
2
2
3
3
4
4
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
POWER
A
1 2 3 4
A1-4
i
D
1
2 3 4
D1-4
A0031200

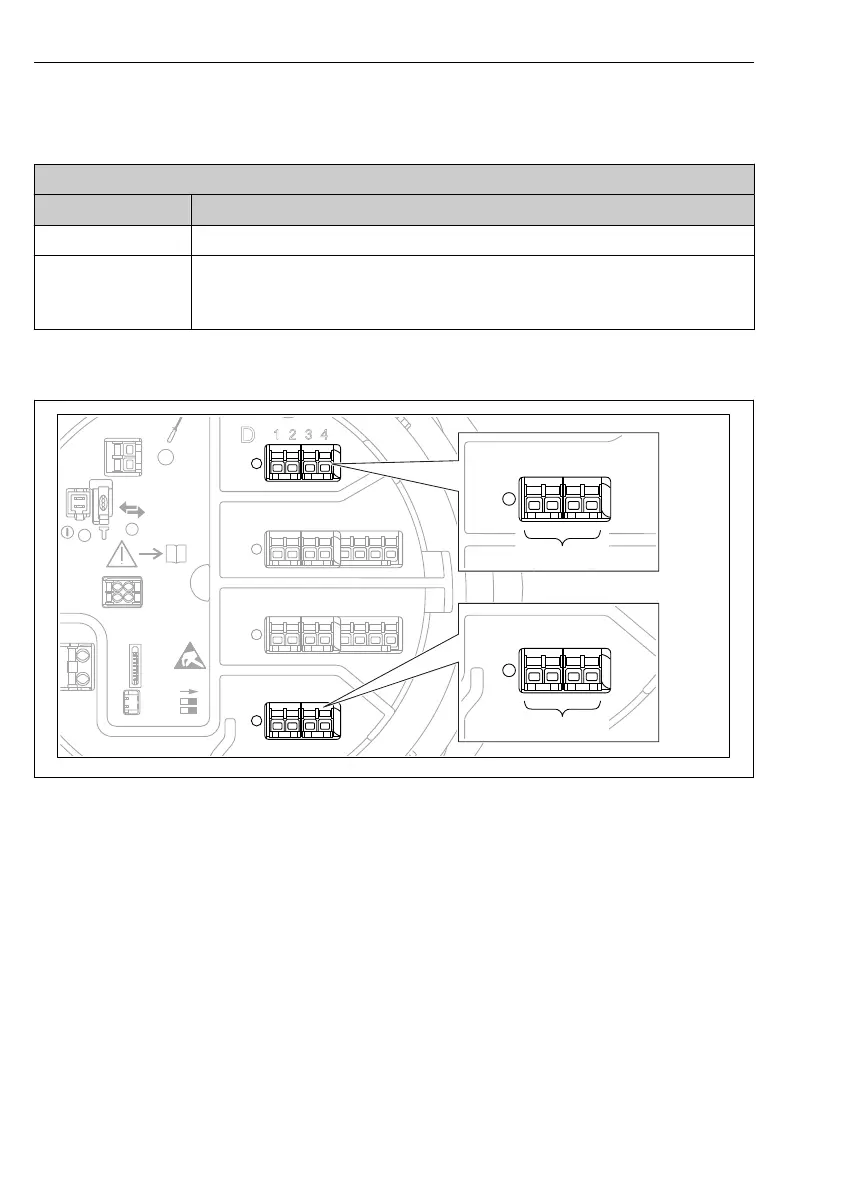

36 Possible locations of the Modbus modules (examples); depending on the device version these
modules may also be in slot B or C → 31.
The Proservo NMS8x acts as a Modbus slave. Measured or calculated tank values are stored in
registers which can be requested by a Modbus master.
