5 Operation

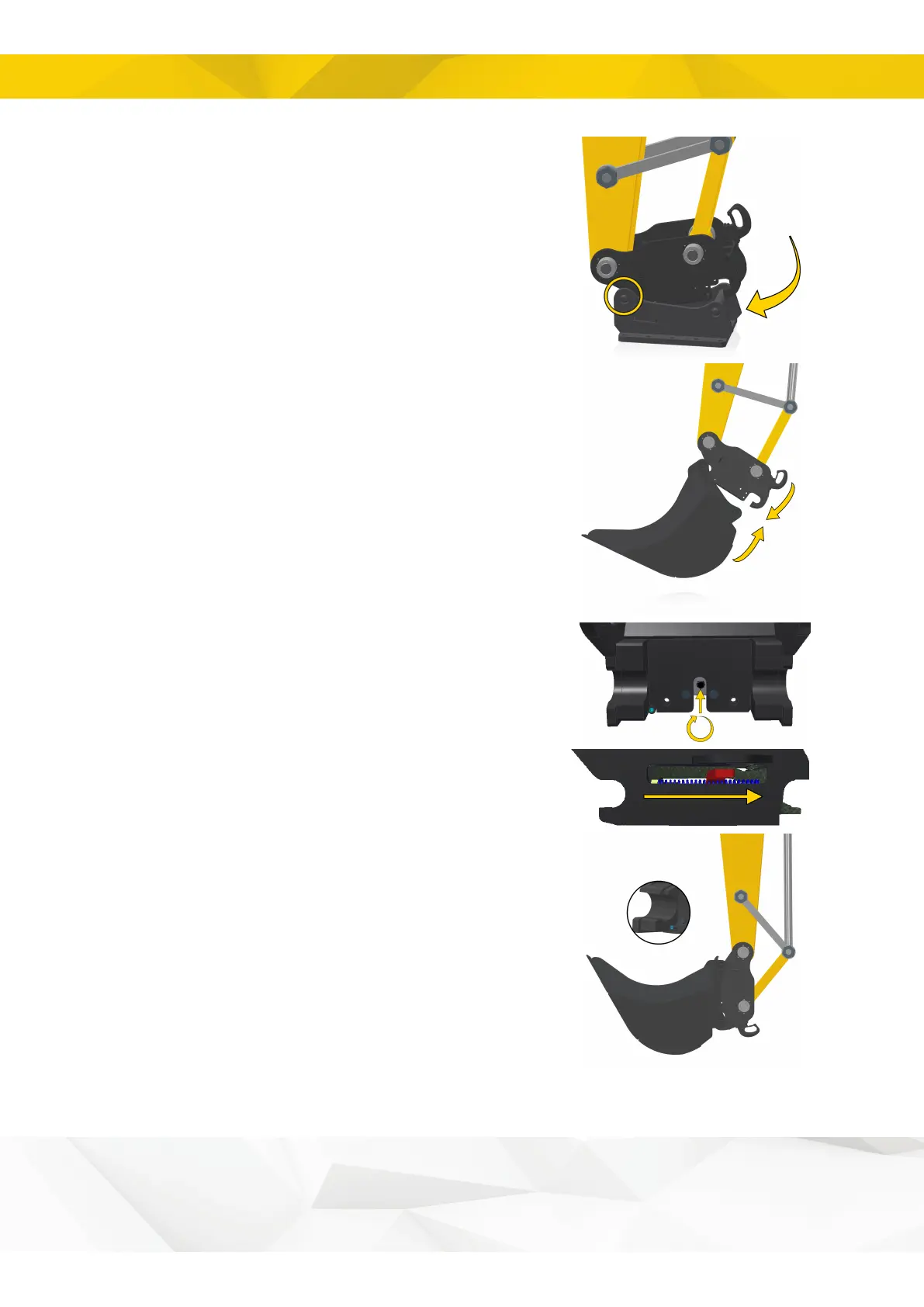

3. Connect the machine coupler to the tool.
4. Raise the machine coupler minimally so that the tool
engages the machine coupler.
5. Close the machine coupler with an appropriate tool.
On models with a screw, turn it clockwise until the locking
bolts are retracted and the indicator rod is in its innermost
position.
On models with a lever, the lock closes automatically when
the adapter axle forces the lock clamp up.
6. Check that the machine coupler lock function has
engaged.
For the engcon machine coupler, the blue indicator rod
must no longer protrude from the coupler. Indicator rod
location may vary depending on the machine coupler
model.
31
