5 Operation
5.4. Fitting and setting up the machine coupler
DANGER
Check the attachment points regularly
and be alert for the formation of
cracks. Risk of personal injury and
damage to property.
WARNING
Beware of moving parts. A lack of
awareness may lead to crush injuries.
Risk of personal injury.

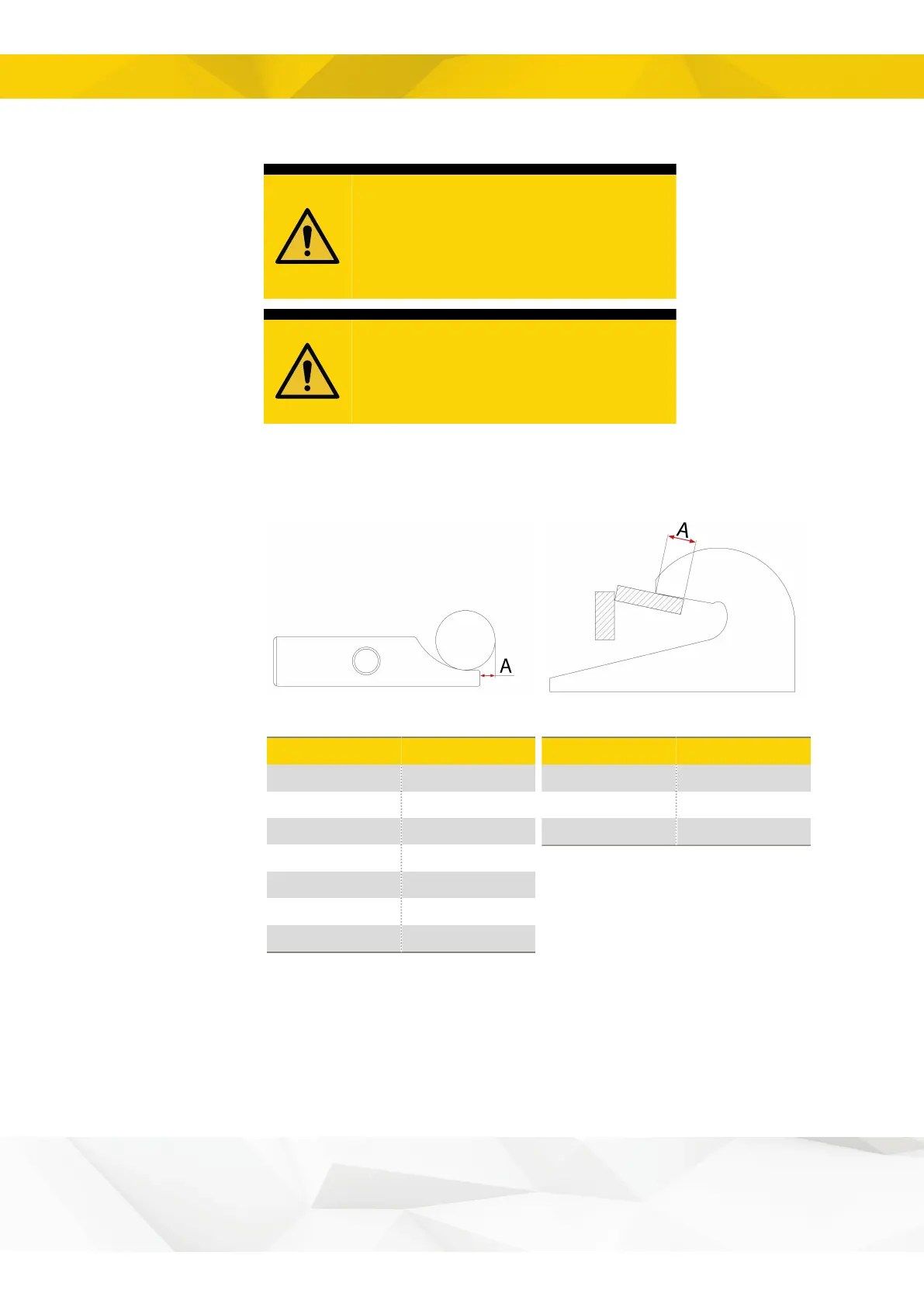

Shim the machine coupler and the tool for minimum play. Check that the
smallest locking key engagement is not below the minimum value:
Quick coupler S30-S80
Quick coupler S1-S3
903898
Figure 15.
903929
Figure 16.
Quick coupler
A (max)
S30
0.2 inch
S40
0.39 inch
S45
0.39 inch
S50
0.39 inch
S60
0.79 inch
S70
0.87 inch
S80
0.98 inch
Table 2.
Quick coupler
A (min)
S1
1.2 inch
S2
1.2 inch
S3
1.2 inch
Table 3.
