6 Maintenance
IMPORTANT
Ensure the highest possible cleanliness when
greasing or connecting the lubrication system.
The lubrication system is sensitive to dirt.
6.4.1. Lubricating the machine coupler
Grease quantity: 3-4 pump strokes per nipple.
Grease nipples on both sides, applies to all examples.

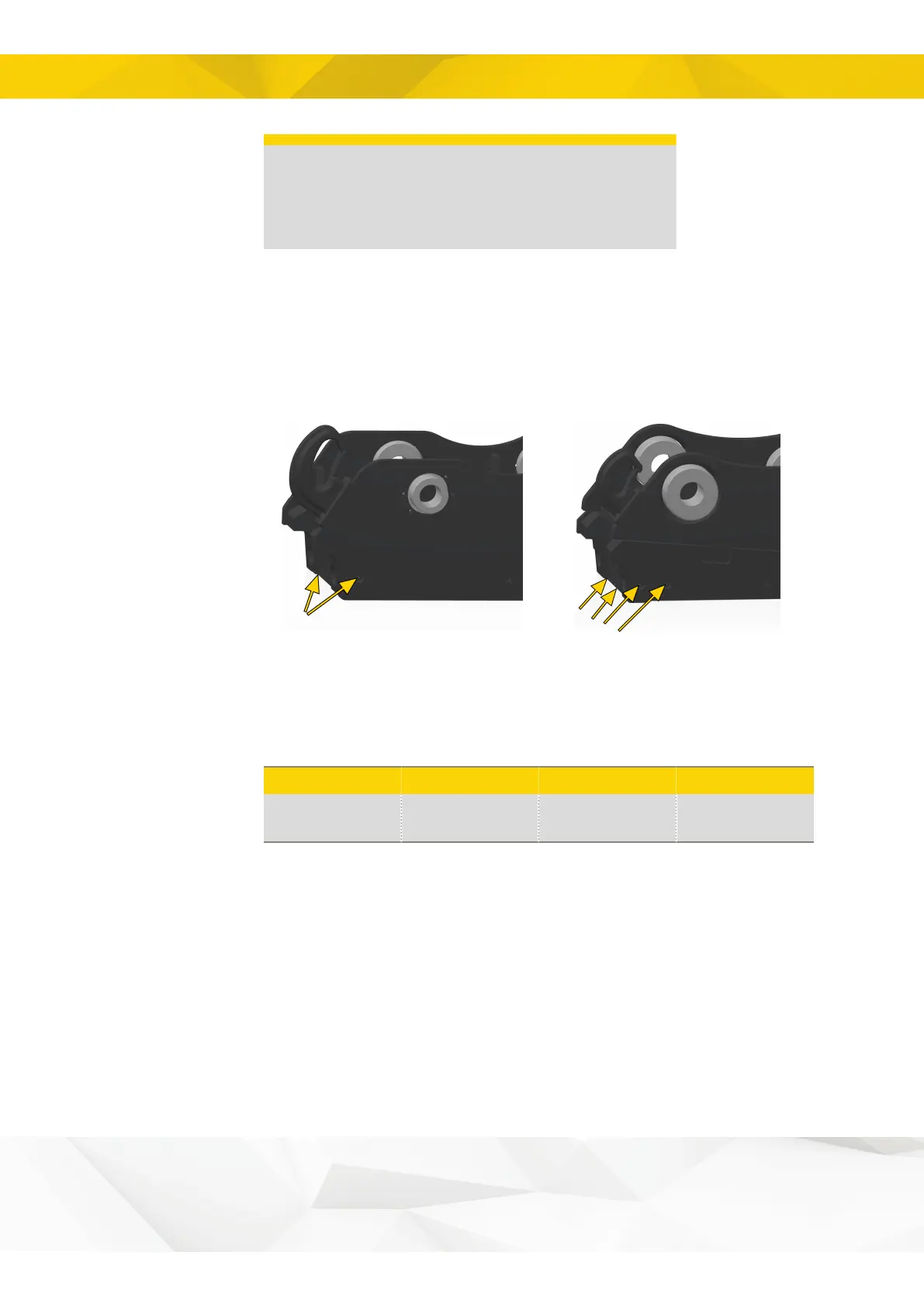

The arrows show the location of the grease nipples.
Example, S70
Example, S80
996162
996163
Figure 19.
Figure 20.
6.5. Tightening torque
EC-Oil hydraulic connectors
Type
Fastener
Quantity
Torque
ECO45/50/60/70
Hydraulic connector
ECO
2
44 lb-ft
Table 4.
