HCS Installation and Operation Manual
Charging cable wrap guidelines
The HCS enclosure body is sculpted to allow the charging cable to be wrapped around it for convenient storage as well as to
keep the bulk of the cable o of the ground and out of the way. As the charge cable is comprised of a number of wires,
coiling the charge cable too tightly around the enclosure will result in the charge cable feeling warmer to the touch than
would ordinarily be the case.
To minimize this eect, it is recommended that the charge cable be loosely draped around the enclosure body with larger
loops. This will also permit greater convenience in “pulling o” additional loops if a longer charge cable reach is desired.

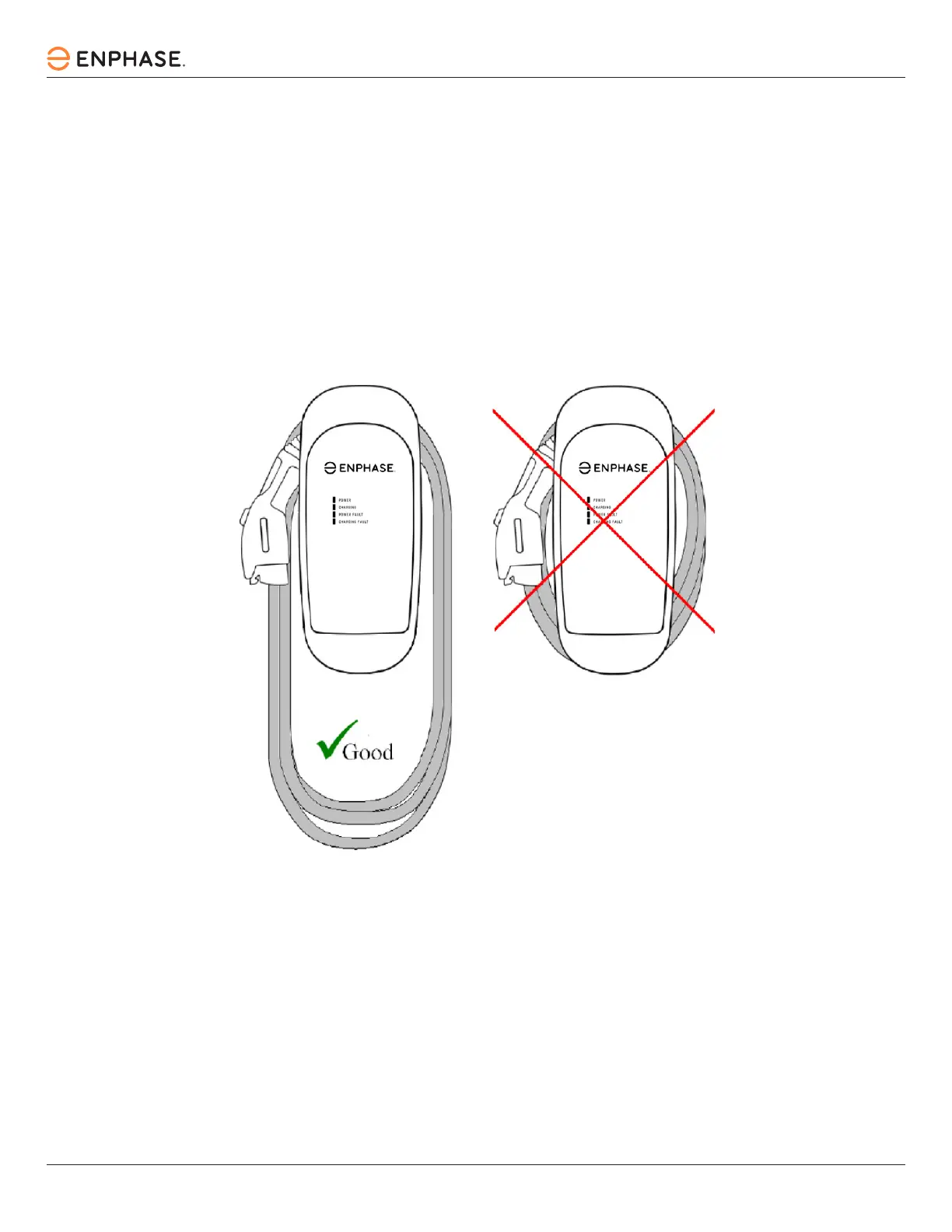

Figure 2: Drape the charging cable loosely around the enclosure
