HCS Installation and Operation Manual
Receptacle instructions (plug-in EVSE)
The plug-in HCS is tted with either a NEMA 14-50 or 6-50 plug extending from the bottom of the enclosure. The plug-in
EVSE must be mounted above the NEMA receptacle and must also be located within 12 in (305 mm) of it.
In both NEMA 14-50P and 6-50P congurations, the ground pin is located at the furthest point on the plug. It is
recommended that a NEMA 14-50R or 6-50R receptacle be oriented accordingly, such that the ground socket is at the
lowest point.
NOTE: For plug-type EVSEs, the provided 14-50R or 6-50R receptacle shall be installed by a qualied electrician
per local codes and standards and in accordance with the manufacturer’s instructions.

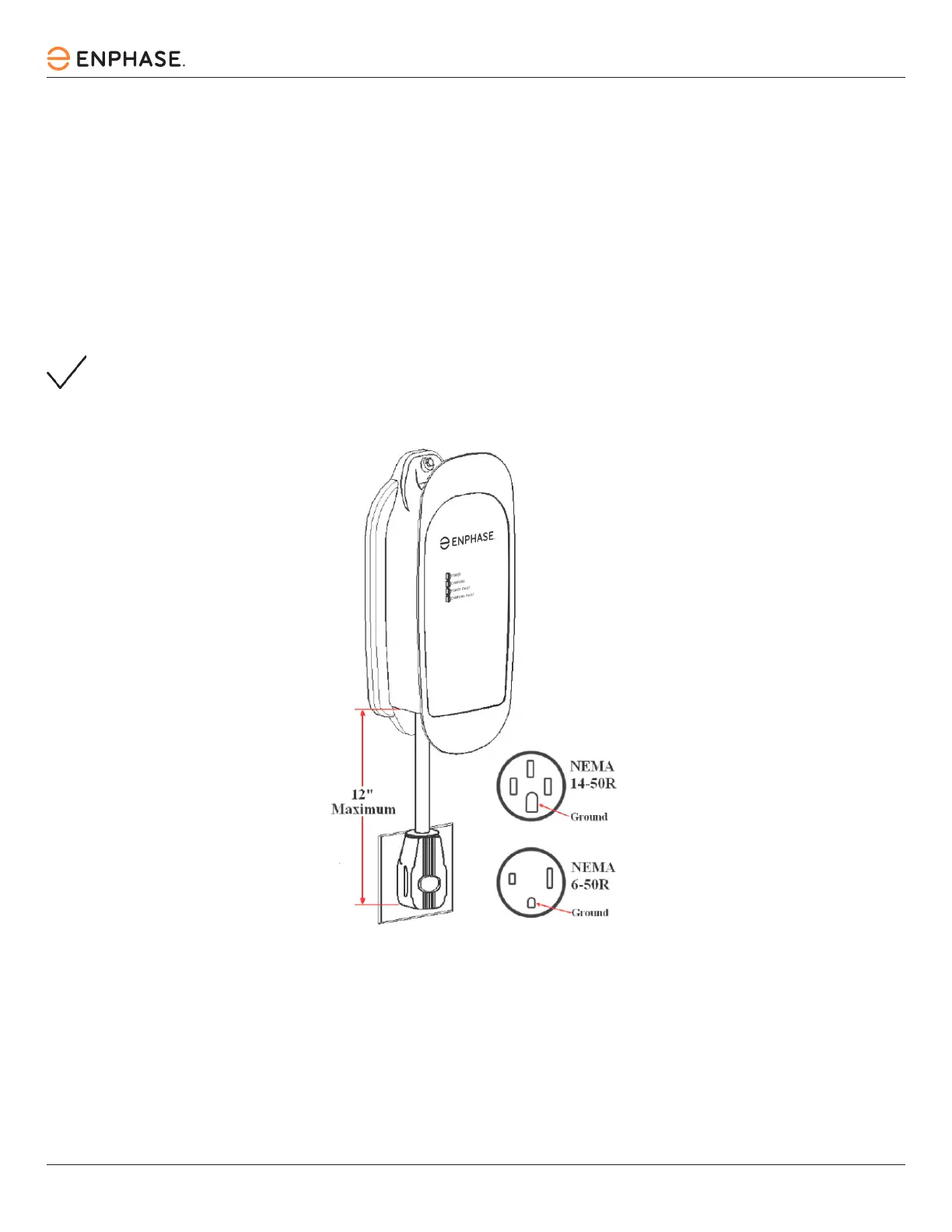

Figure 7: Preferred orientation of the NEMA receptacles below the plug-in EVSE
