Setting Up the Enterasys Matrix N7 Chassis
Enterasys Matrix N7 Chassis Setup 3-13

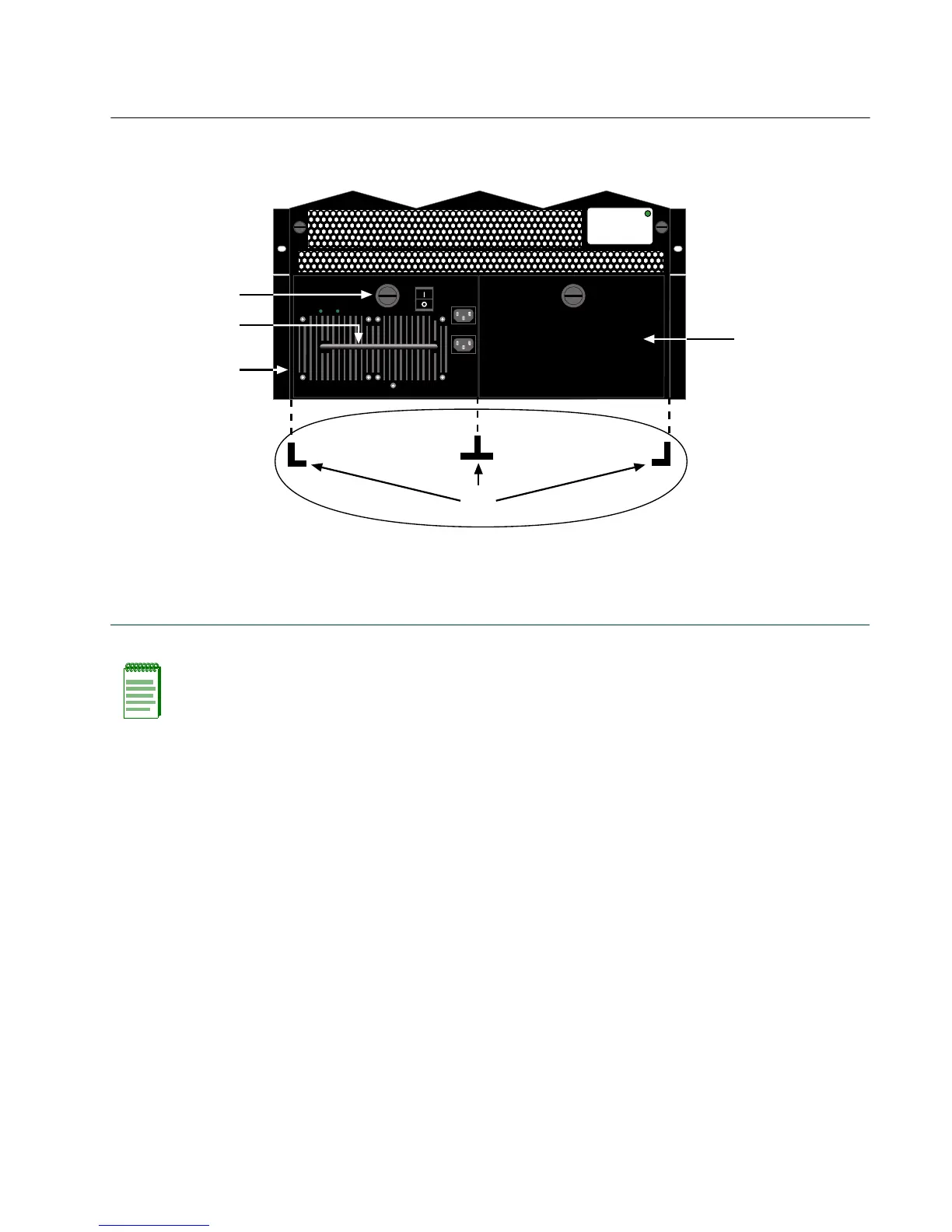

Figure 3-7 Installing the Power Supply Module(s)
After completing the power supply and module installations, the N7 chassis is ready to be powered
up. Proceed to Section 3.3 for instructions to power up the chassis.
1 Mandatory power supply installed in slot PS1 4 Slotted screw
2 Power supply handle 5 Blank plate covering slot PS2
3 Card guides
Note: To install the modules, refer to the module installation guide for the installation
instructions. Before you power up the N7 chassis, it is recommended that you complete
the installation of the modules in the chassis.
50/60Hz
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
LINE 1:
100-125V~10A
200-240V~5A
POWER FAN
PS1
À
Ã
Á
Â
Ä
