Enterasys Matrix N7 7C107 User Manual

Removing and Reinstalling the Fan Tray
3-18 Enterasys Matrix N7 Chassis Setup

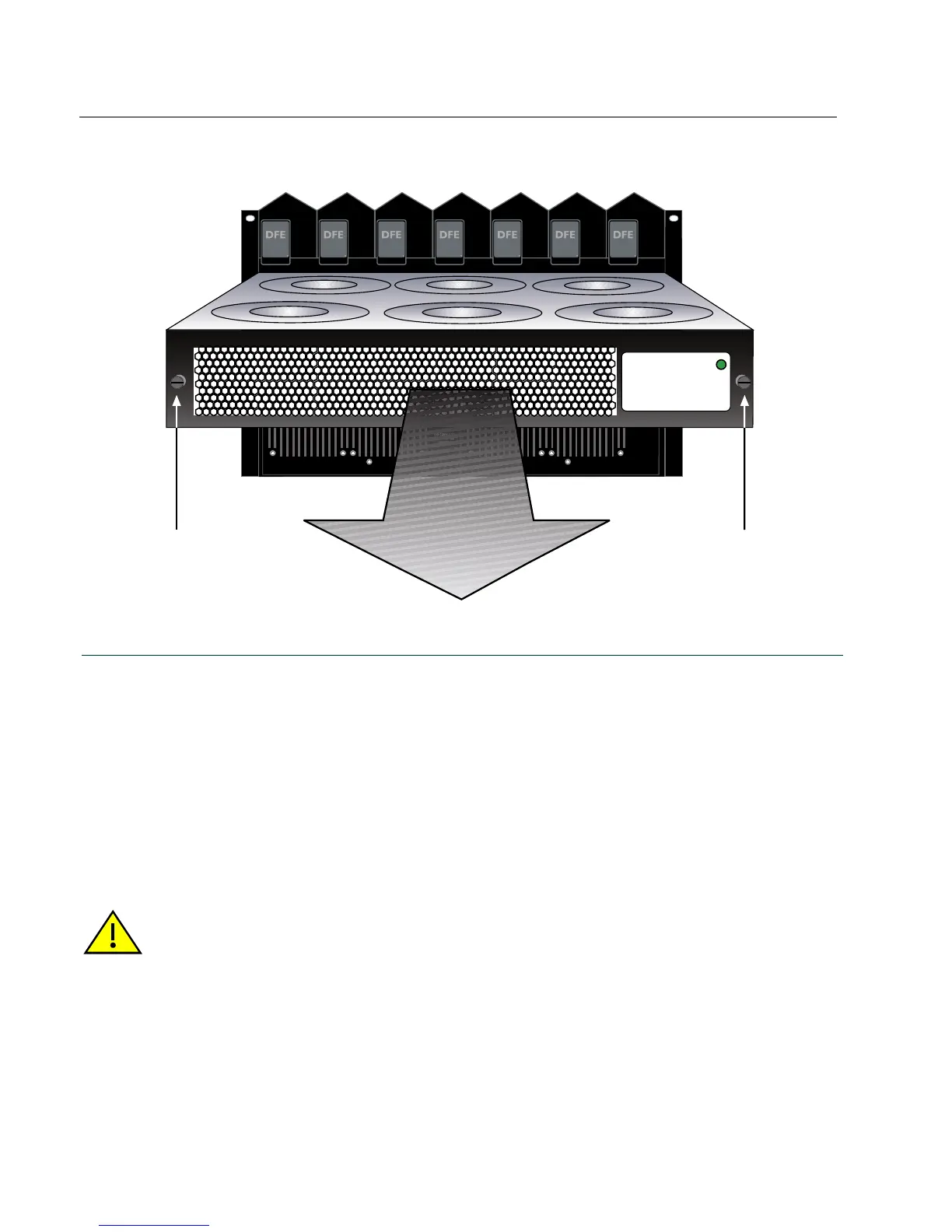

Figure 3-10 Removing the Fan Tray
3.4.2 Reinstalling the Fan Tray
To reinstall the fan tray, refer to Figure 3-11 and proceed as follows:
1. Locate the ESD wrist strap shipped with the N7 chassis. Attach the ESD wrist strap to your wrist
and plug the cable from the ESD wrist strap into the ESD grounding receptacle at the upper right
corner of the chassis.
2. Hold the sides of the fan tray.
3. Line up the rails on each side of the fan tray with the slot guides on the chassis.
1 Slotted screw (2)
Caution: In the following step, ensure that you do not force the fan assembly into place
as it may damage the self-aligning power/control connector in the chassis.
Precaución: En el siguiente paso, tenga cuidado de no colocar de manera forzada el
sistema de ventilación, porque puede dañar el conector de control de corriente con
autoalineación del chasis.
50/60Hz
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
LINE 1:
100-125V~10A
200-240V~5A
POWER FAN
PS1
50/60Hz
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
LINE 1:
100-125V~10A
200-240V~5A
POWER FAN
PS2
À À
