Enterasys WS-AP3705i User Manual

1-2 WS-AP3705i Overview

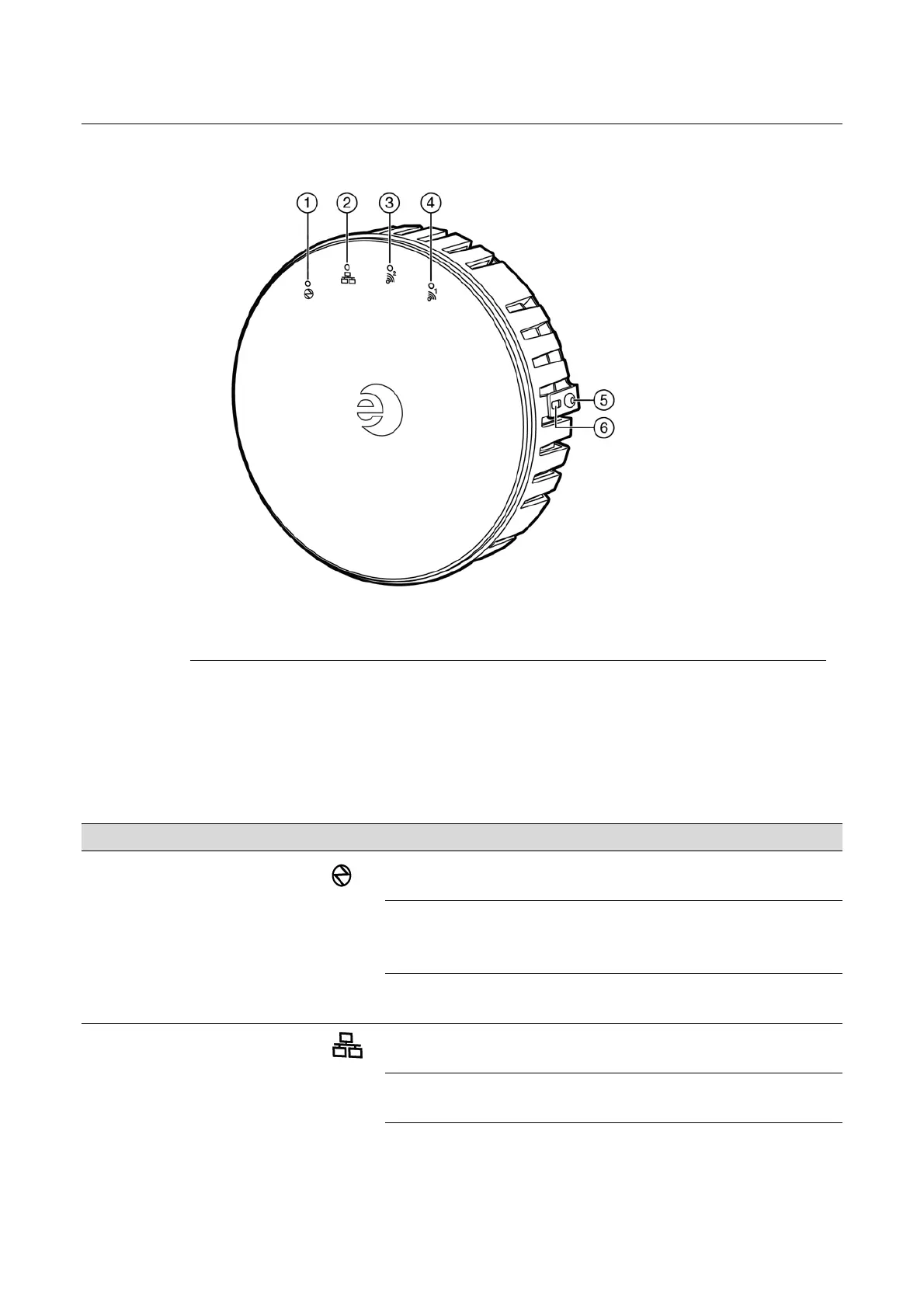

Figure 1-1 Enterasys Wireless WS-AP3705i Front View
WS-AP3705i LED Indicators
The WS-AP3705i provides four LED indicators (see Figure 1-1). The LEDs provide status
information (see Table 1-1) on the current state of the WS-AP3705i. For more information, see the
Enterasys Wireless Convergence Software User Guide.
1 LED 1 (AP status) 4 LED 4 (Radio 1 status)
2 LED 2 (Ethernet link state) 5 Rivet on mounting bracket locking tab
3 LED 3 (Radio 2 status) 6 Slot for Kensington lock on bracket locking tab
Table 1-1 WS-AP3705i LED Status Indicators
LED Icon Status Description
1 (AP status) On Green Indicates the WS-AP3705i is working
normally.
Flashing Green Indicates:
• running a self test
• loading software program
On Red Indicates a CPU or system failure.
2 (Ethernet link state) On Green Indicates a valid 100Mbps Ethernet link.
On Blue Indicates a valid 1Gbps Ethernet link.
Off Indicates the link is down.
Draft

Enterasys WS-AP3705i Specifications

General

Brand	Enterasys
Model	WS-AP3705i
Category	Wireless Access Point
Language	English
