WS-AP3705i Installation Procedures
2-8 Installation
2. Use two machine screws to attach the wall mount plate to the junction box, putting the screws
through the long oval hole and the small hole at the bottom of the plate as shown in
Figure 2-7.

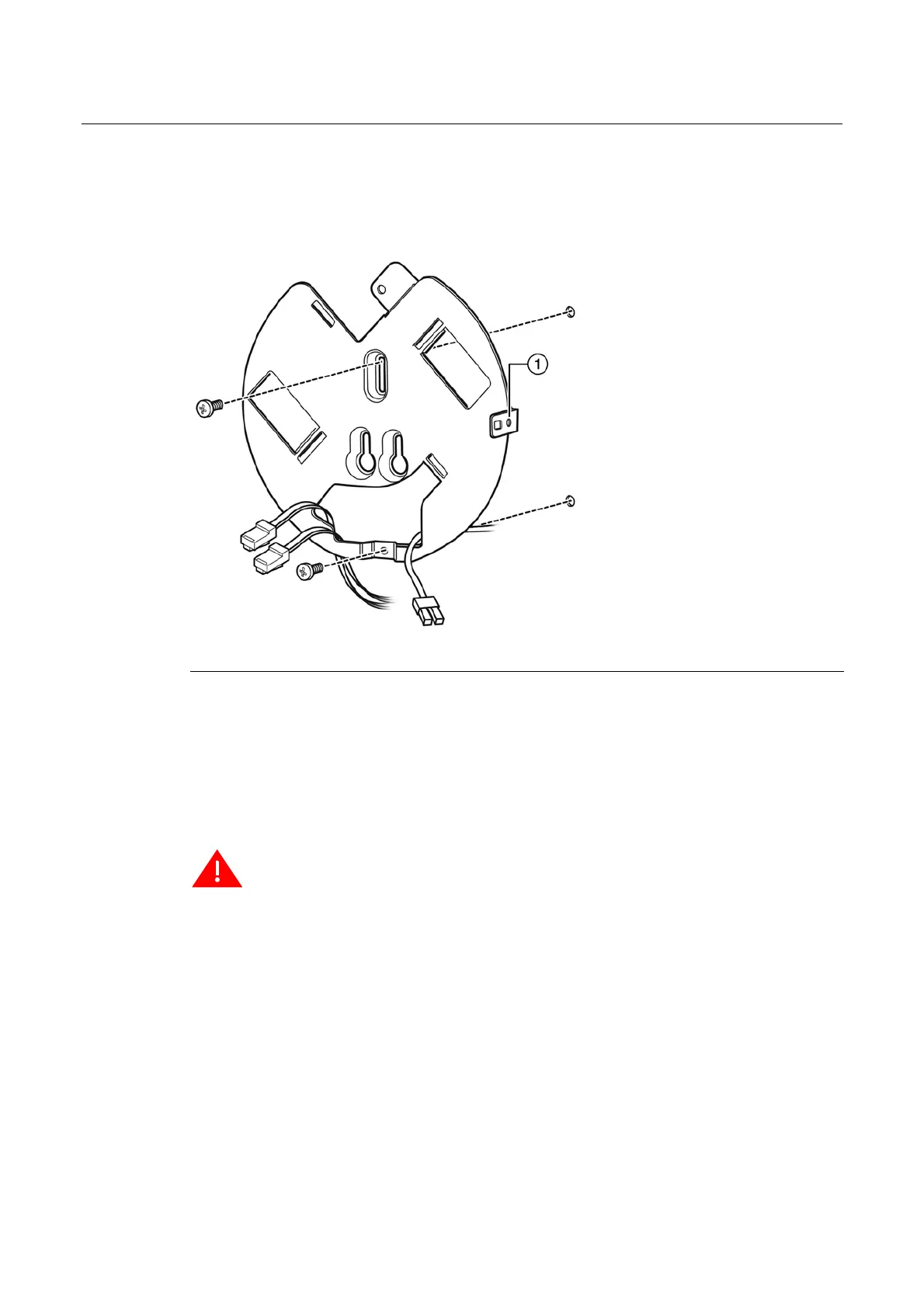

Figure 2-7 Attaching the Wall Mount Plate to a Junction Box
3. Plug the Ethernet cable into the RJ-45 port on the back of the AP, and if applicable, plug the
power cord into the power port on the back of the AP, before mounting the AP on the bracket.
4. Place the back of the AP against the mounting bracket with the mounting clips through the
slots on the bracket and the rivet hole about 1” from the locking tab. Then twist the AP
counterclockwise until the clips snap over the flanges at the end of the slots.
5. Press the included plastic rivet through the rivet hole in the locking tab into the rivet hole
on the side of the AP. Then depress the top of the rivet until it is completely seated.
To remove the AP from the mount plate, reverse the rivet procedure using a small screwdriver
to unlock/open the rivet head.
Mounting on an Existing Mount Plate
You can mount the WS-AP3705i over the mounting bracket used to mount earlier AP26xx and
AP36xx models on a wall.
1. Remove the older AP model from its mounting bracket plate, and disconnect the cable(s).
1 Rivet Hole in Locking Tab
Warning: If the rivet is not inserted as described in this step, there is a risk the Enterasys Wireless
WS-AP3705i will fall from the bracket.
Draft
