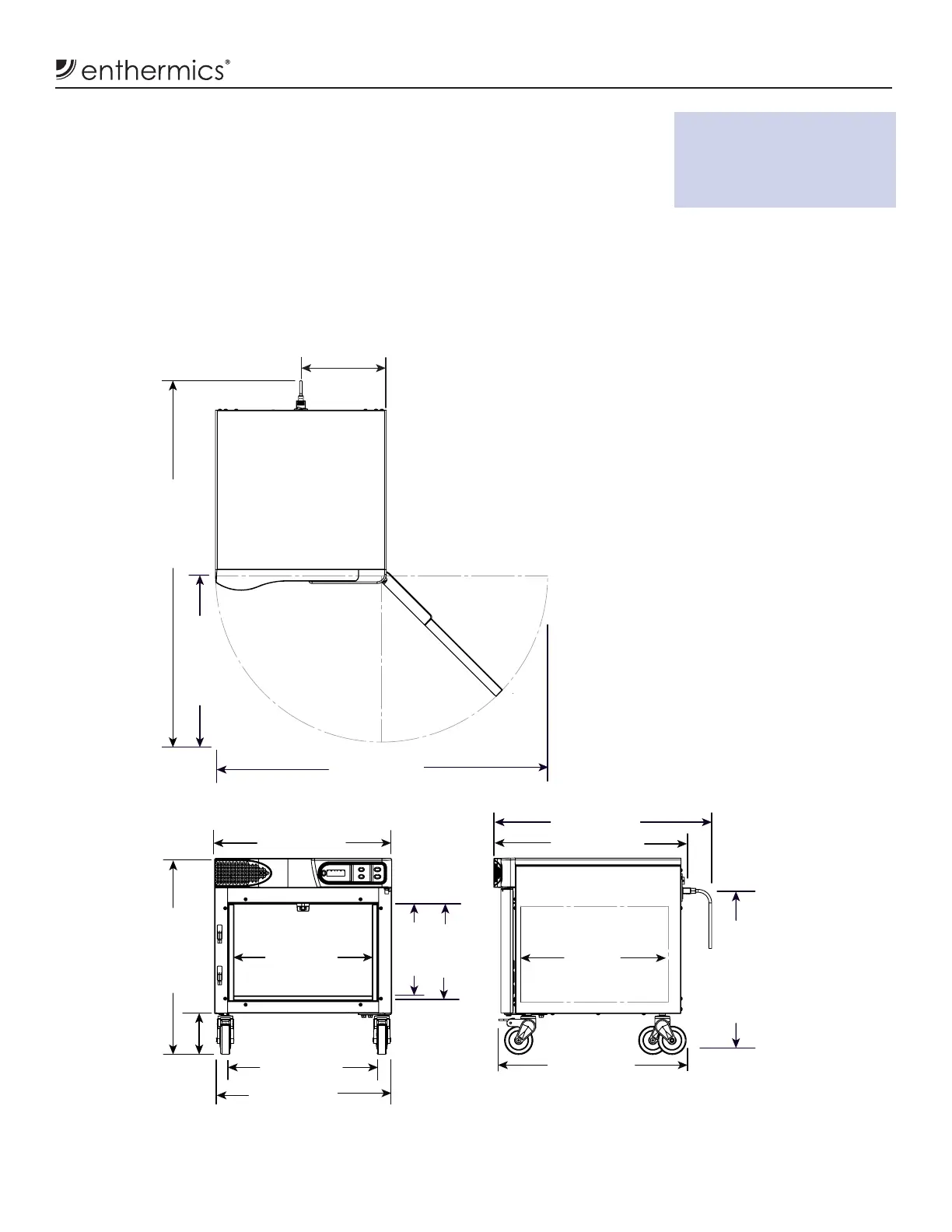

Dimension Drawings
DC150 with optional casters
18.5" (470mm)
14.4" (366mm)
INSERT
14.5" (368mm)
CAVITY
18.2" (463mm)
20.0" (509mm)
19.8" (504mm)
15.5" (394mm)
CAVITY
4.3" (110mm)
20.5" (520mm)
9.2 " (235mm)
IEC Cord Inlet
18.0" (456mm)
39.1" (994mm)
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
22.7" (577mm)
17.0
" (433mm)
IEC Cord Inlet
10.1" (258mm)
CAVITY
9.6" (245mm)
INSERT
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
#5012693 – 3" (76mm) casters (2 swivel, 2 swivel with brake)
