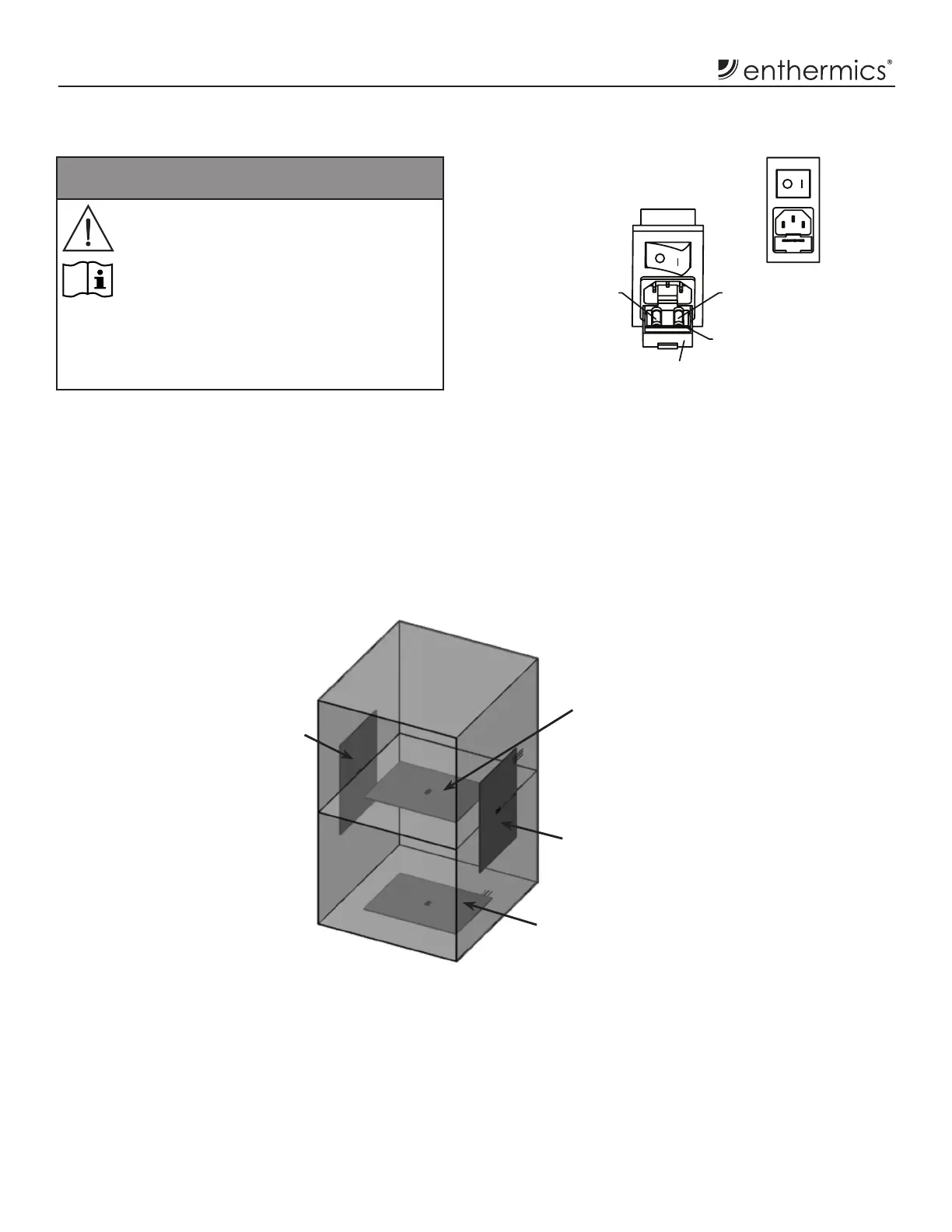

MN-37072 • Rev 2 • 05/16 • Designer Series Blanket Warmer
Service
Part numbers and drawings are subject to change without notice.
Serial number is required for all inquiries.
Always include both model and serial number(s) in any
correspondence regarding the appliance.
Model: ______________________________________________
Serial Number: ______________________________________________
Purchased From: ______________________________________________
Date Installed: ____________________ Voltage: _____________
Fuse Replacement
FU-34955
F2 fuse
FU-34955
F1 fuse
fuse compartment door
fuse drawer
For protection against fire and electrical shock
use only UL listed 10A, 250V fast acting fuses,
5mm x 20mm (F1, F2). Access should be made
by qualified service technicians only.
Hospital grade cord must be used. Refer to
operation and care manual or contact
manufacturer for acceptable cords. Equipment
must be connected to an equivalent receptacle
marked “hospital grade”.
1. Unplug the power cord from the wall outlet
and the power switch assembly.
2. Using a thin implement, open the fuse
compartment door.
3. Using a thin implement, pull the fuse drawer
out from the compartment.
4. Using a thin implement, push the fuses up
and out of the drawer.
5. Replace with a new fuse.
6. Push the drawer back into the compartment.
7. Close the compartment door.
Zone Heating Element Locations
Zone 4 (shelf)
{3.5
3
/7.5
3
appliances only}
Zone 1
(right side)
Zone 3
(bottom)
Zone 2
(le side)
