4.3 DIN Rail MSE 300 Evaluation unit
 Current output
- 4 ... 20 mA
 Current output
+ 4 ... 20 mA
 Input
power supply
0 V DC
 Input
power supply
+ 24 V DC
 Not used  Alarm relay
NC (break contact)
 Alarm relay
COM
 Alarm relay
NO (make contact)
1 2 3 4
5 6 7 8
 Digital
pulse output (-)
 Digital
pulse output (+)
 RS 485-
Interface
Data B
 RS 485-
Interface
Data A
 Sensor connection
Cable 4
 RS 485
Data B
 Sensor connection
Cable 3
 RS 485
Data A
 Sensor connection
Cable 2
 power supply 0 V
 Sensor connection
Cable 1
 power supply + 24 V
9 10 11 12
13 14 15 16

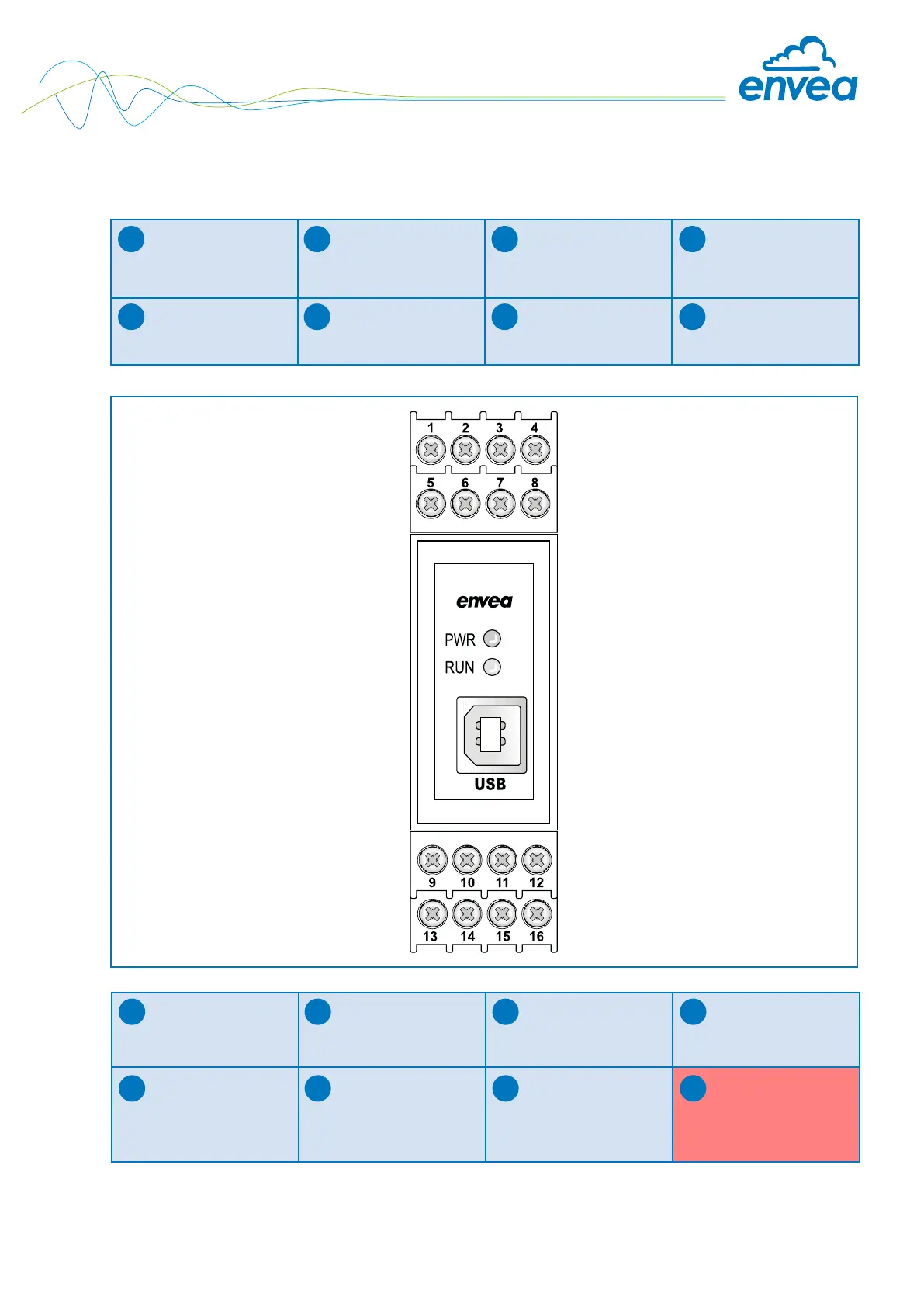

Fig. 8: DIN Rail connections
