4.4 Connecting multiple sensors using the C3-Box

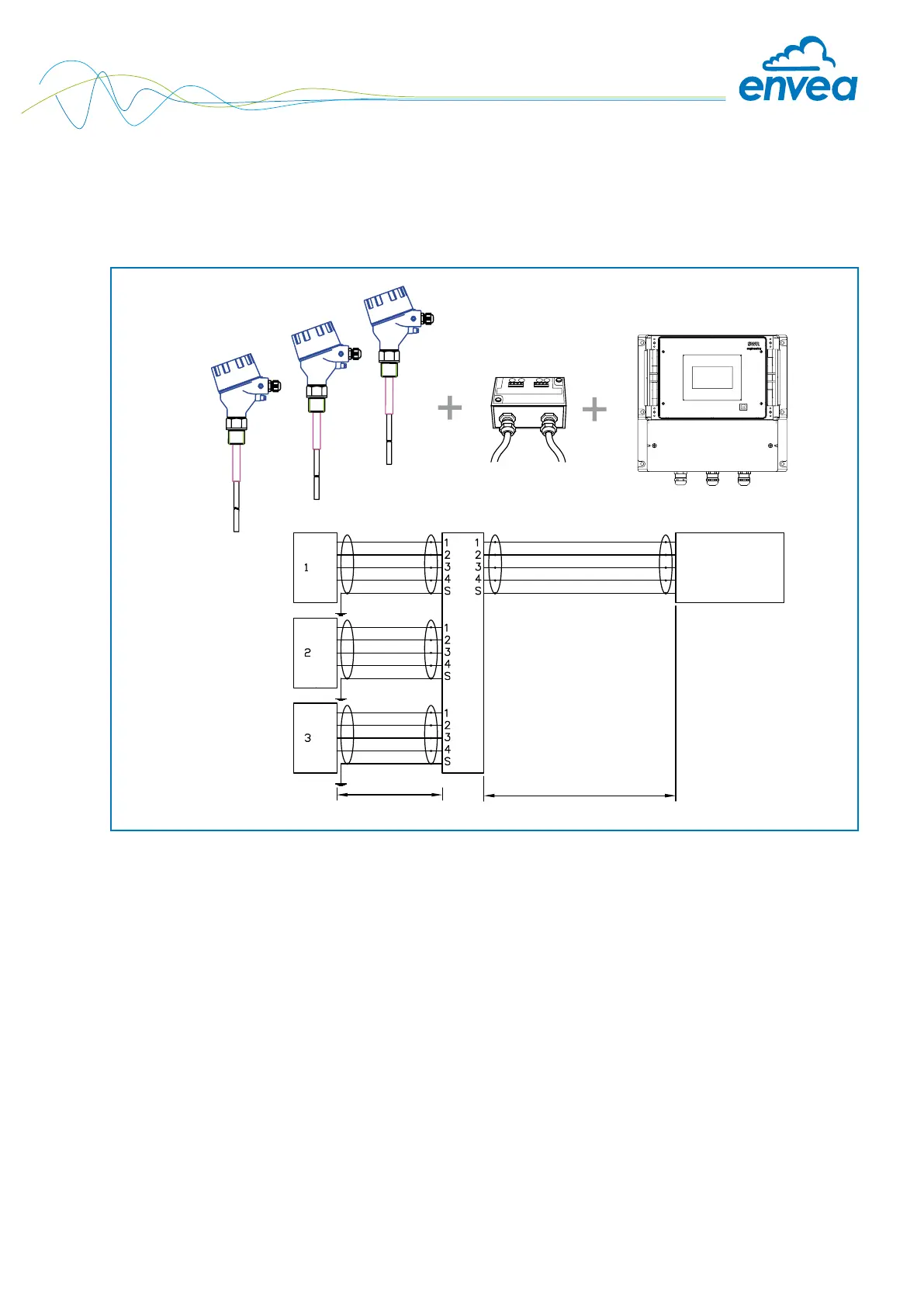

As an option up to 3 sensors can be connected to the Evaluation unit via the C3-Box to allow large
pipe cross-sections to be monitored with accuracy.
TransmitterC3-Box
Sensor
Sensor
Sensor
2 m
max. 300 m
1 (+ 24 V)
2 (GND)
3 (A)
4 (B)
Shield
