7

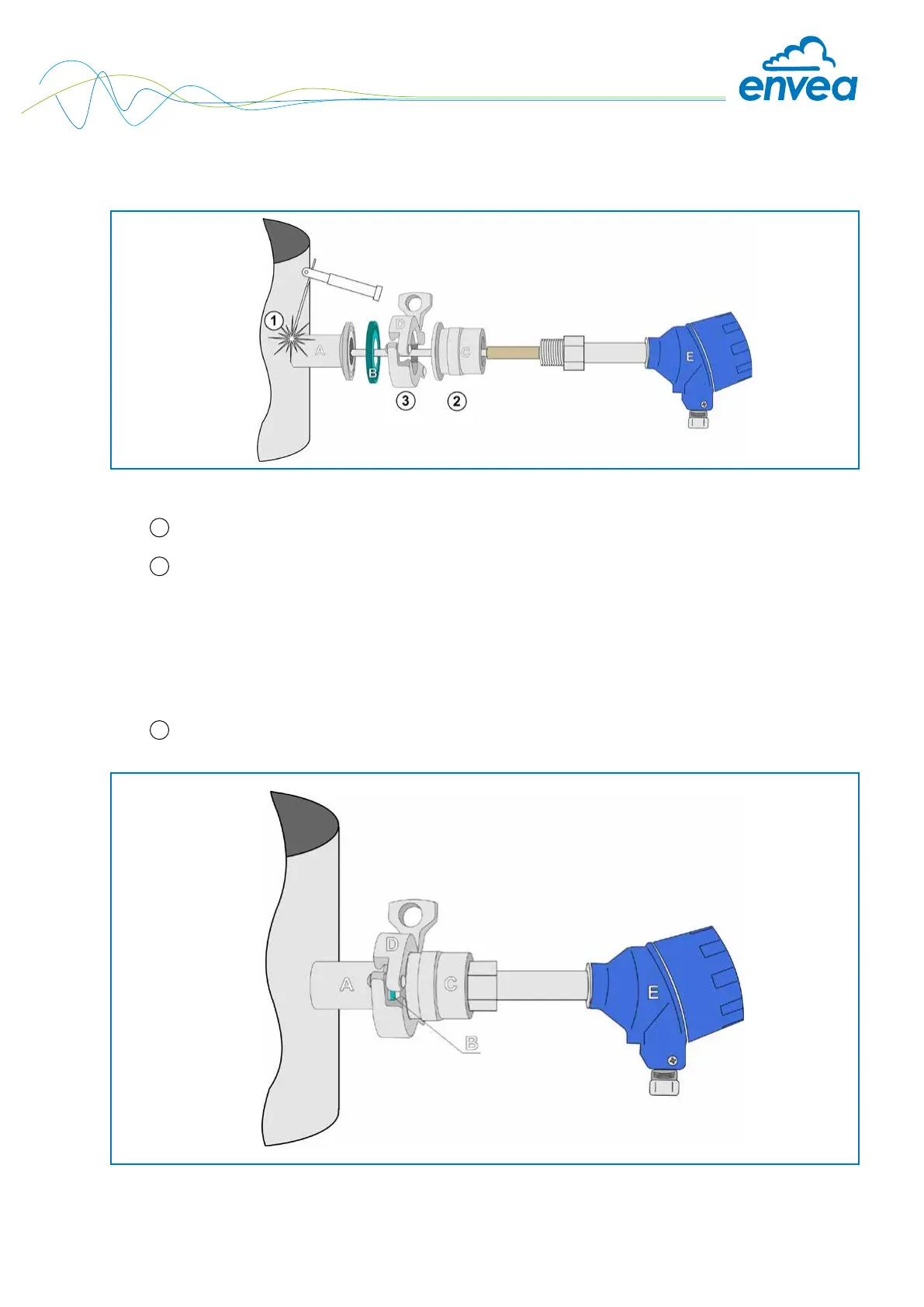

Fig. 3d: Mounting Operations
2.4 Sensor installation - mounting with TriClamp
Weld the ange “A” on the duct wall and opened by drill completely. (Ø 20 mm)
Mount the sensor “E” on female socket “C” using the proper wrench.
Caution:
• Use the correct size wrench. Do not screw the sensor in by hand since the screw connector
could come loose and this can damage the electronics.
• Do not undo the grub screw in the housing plinth.
Lock female socket “C” on welded socket “A” using the clamp collar “D”.
Do not forgot the clamp gasket “B”
1
2
3
Fig. 3e: Assembled TriClamp
