3.12 Cable Specification

Electrical
Connections
Overview
Nº of
Cores
Core Size
(mm
2
)
Core Size
strands/dia
Core Size
awg
Screened
Supplied
by
1
3
0.5
16/0.2
22
Yes
ENVEA
2
8
0.25
7/0.2
24
Yes
ENVEA
3
8
0.25
7/0.2
24
Yes
ENVEA
4
4
0.5 to 1.5
16/0.2
to 30/0.2
22 to 16
No
Customer
5
3
1.0
32/0.2
18
No
Customer

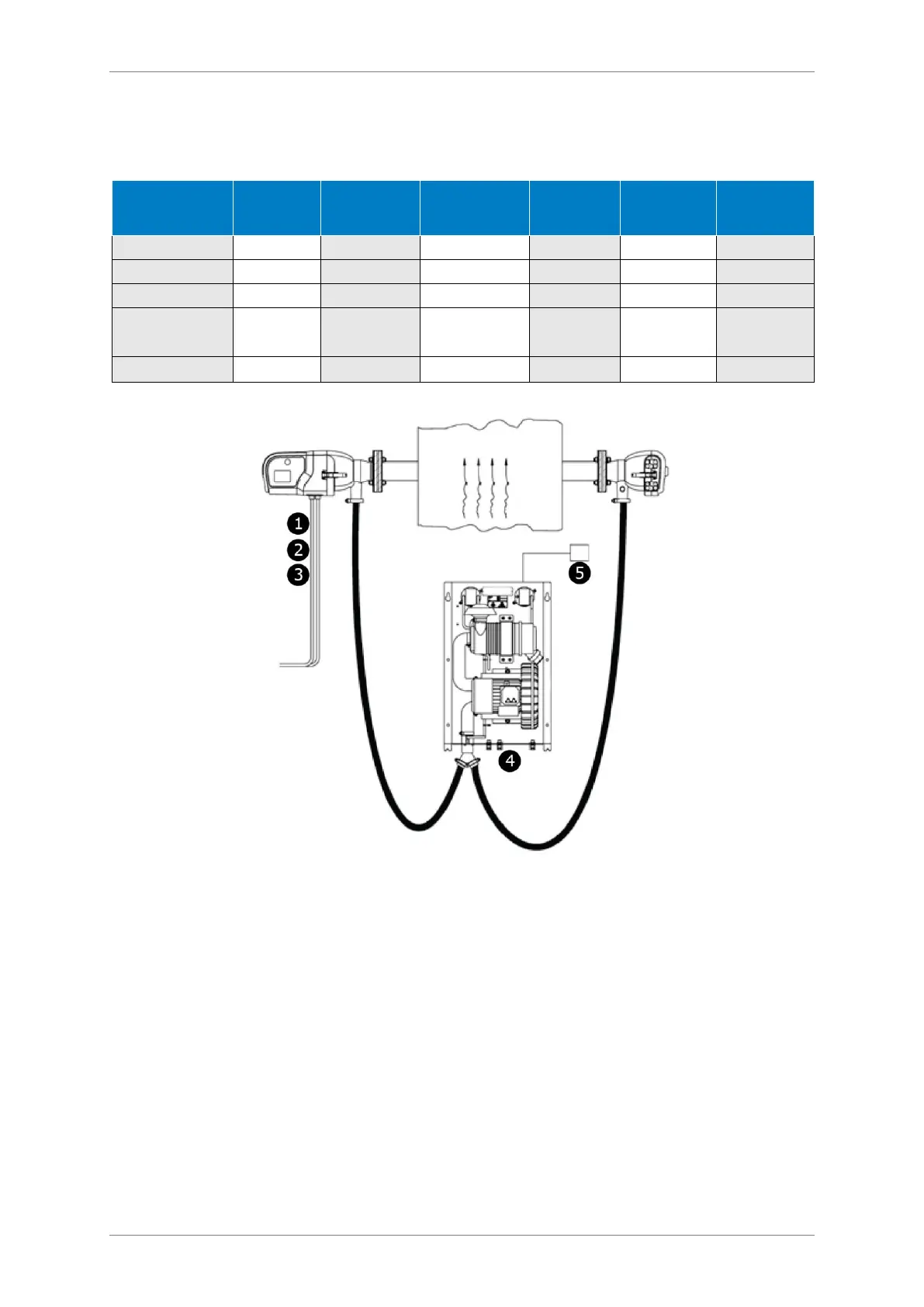

Figure 12: Electrical connection overview.
