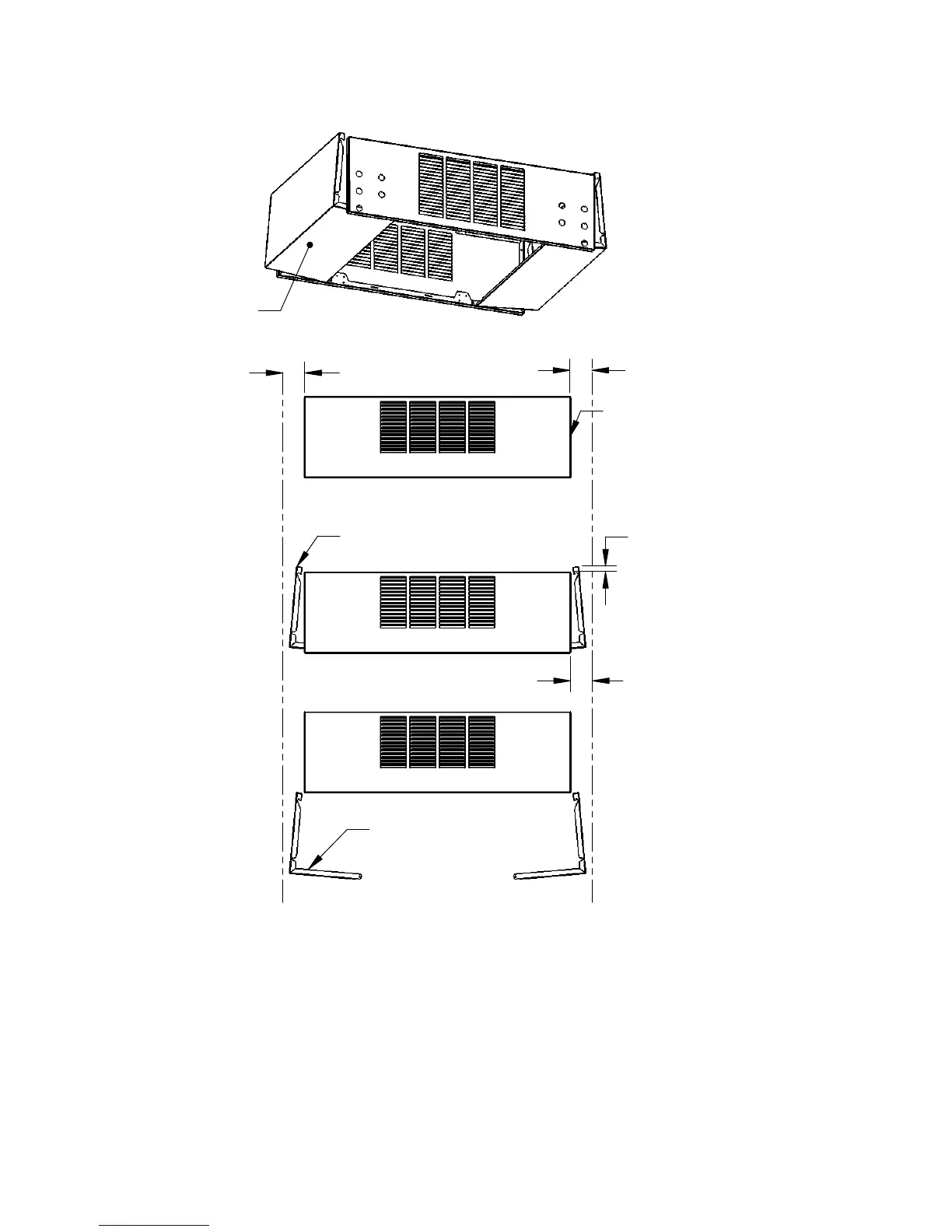

SERVICE AND CLEARANCE REQUIREMENTS: WIDTH RESTRICTED APPLICATION
3"
[76]
3"
[76]
3" [76] MIN
REQUIRED CLEARANCE
BESIDE UNIT
(PANEL REMOVAL
REQUIRED FOR
ELECTRICAL ACCESS)
CLEARANCE BETWEEN
STRUCTURE AND UNIT
ABIDE BY APPLICABLE
CODES AND STANDARDS
REGUARDING ACCESS
FOR ELECTRICAL OR
PLUMBING COMPONENTS
CORNER PANELS
SHOWN LIFTED AND
ROTATED 5°
LIFT AND ROTATE CORNER PANEL
OFF OF PIVOT POINT
1" [25] MIN
REQUIRED CLEARANCE
ABOVE UNIT
DROP CORNER PANELS
STRAIGHT DOWN
UNIT
INSTALLED
HALF
OPENED
FULLY
OPENED
