REV. 09/2022
7
B

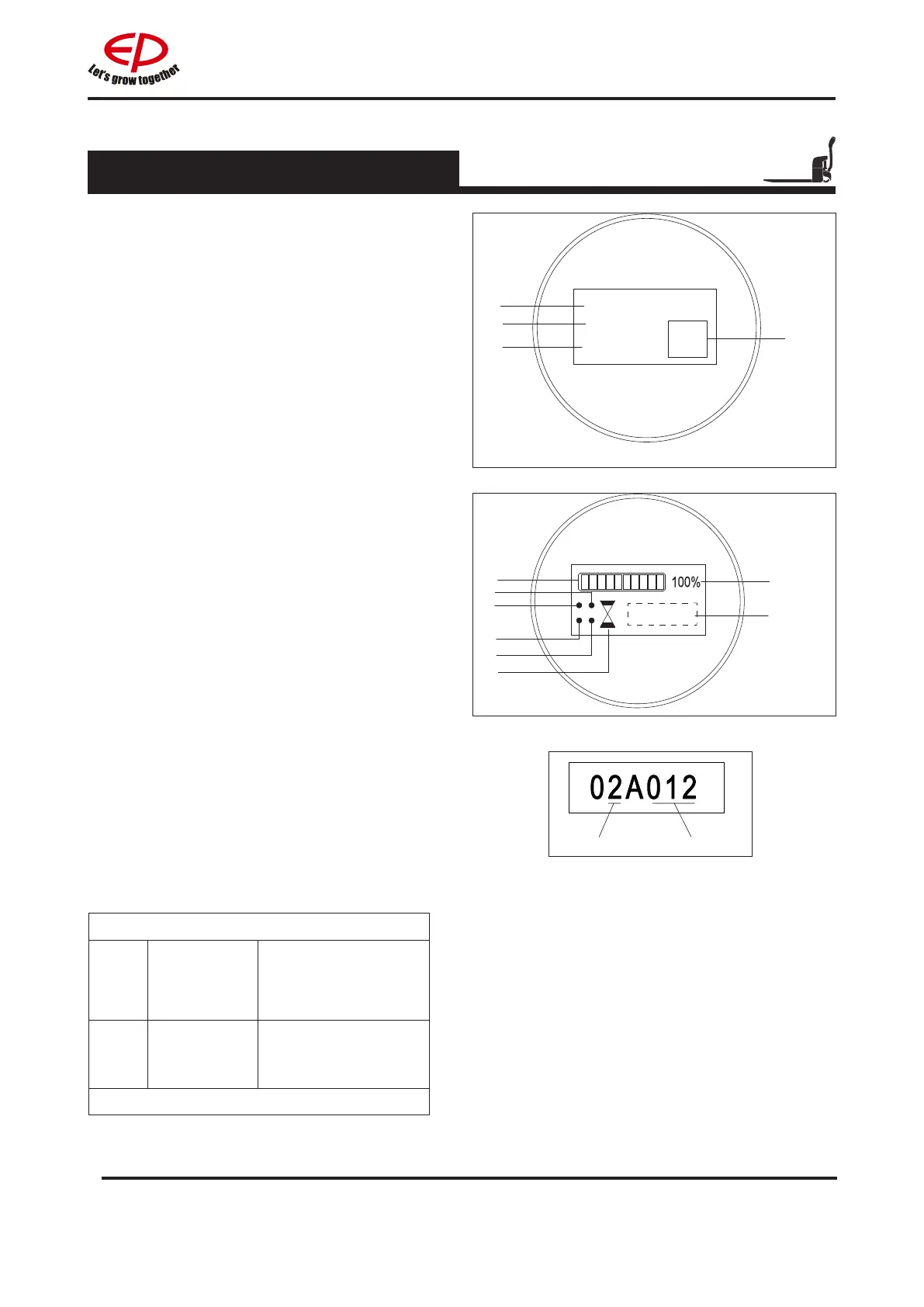

1.2.4 Display instrument
3
4
SN:EC2815372079
1
2
DIS2
011H
When the truck start up, it will show a startup
display interface;
• The LED (1) show the No Serialnumber. It
indicates the circular meter has no bluetooth
function.
• The LED (2) show the DIS3. It indicates the
version of the product.
• The LED (3) show the 011H. It indicates the
version of software.
• The LED (14) show QR,It indicates Bluetooth
name.
After the truck starting , it will display another
display interface;
12
4 5
6
7
8
9
10
11
13
Error Code
12
Controller
number
2 = Traction
controller
6 = Steering
controller
13 Error code note
Note: Consult the service manual
• LED (4) displays the remaining charge.when
1st block and 2nd block blinks alternatively,
it indicates low power needs to be charged
• LED (5) displays remaining charge
percentage;
• LED (6) ashing, it indicates travel forward
properly;
• LED (7) ashing, it indicates travel backward
properly;
• LED (8) ashing, it indicates lifting properly;
• LED (9) ashing, it indicates lowering
properly;
• LED (10) always on, it indicates interlock
switch opened, LED(10) ashing, it indicates
interlock switch closed, the display start
timing.
• LED (11) displays the total running time
normally. If fault, display the fault code.
14
