Epever UPower Series User Manual

6
 Recommended wire and circuit breaker for AC output
Model
AC wire size
Breaker
UP1000-M3212
2.5mm
2
/14AWG
2P—10A
UP1000-M3222
2.5mm
2
/14AWG
2P—10A
UP1500-M3222
2.5mm
2
/14AWG
2P—10A
UP2000-M3322
2.5mm
2
/14AWG
2P—16A
UP3000-M3322
4mm
2
/12AWG
2P—25A
UP3000-M6322
4mm
2
/12AWG
2P—25A
UP3000-M2142
4mm
2
/12AWG
2P—25A
UP3000-M6142
4mm
2
/12AWG
2P—25A
UP5000-M6342
6mm
2
/10AWG
2P—40A
UP5000-M8342
6mm
2
/10AWG
2P—40A
UP5000-M10342
6mm
2
/10AWG
2P—40A
NOTE: The wire size used for connection is for reference only, use thicker
wires to lower the voltage drop and improve the system performance when
the distance between the whole solar system components is far.
NOTE: The above wire and the circuit breaker size are for recommended
use only, please choose the suitable wire and circuit breaker according to
the practical situation.
2.3 Mounting

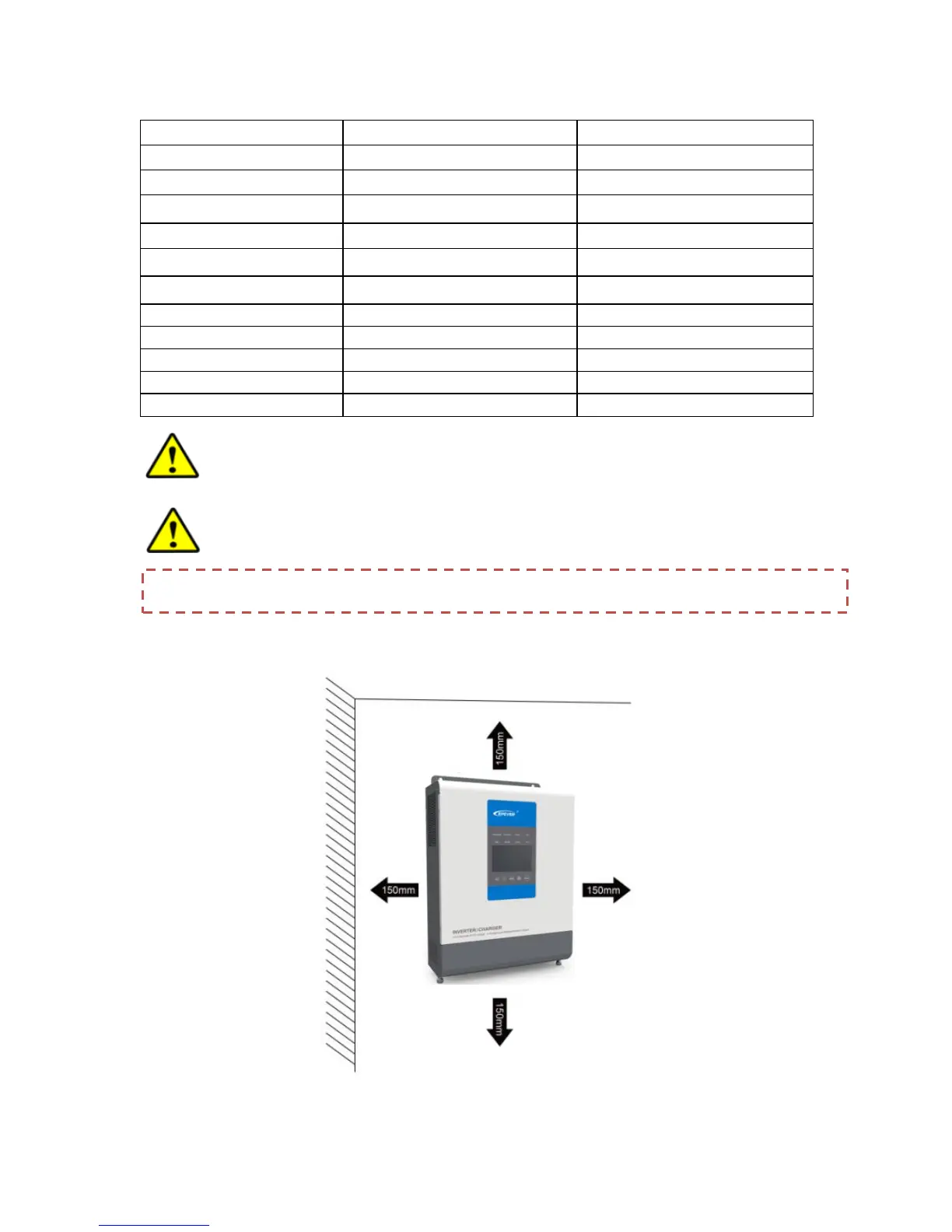

Figure2-1 Mounting
NOTE：The cable lugs refer to the cardboard in the package.

Epever UPower Series Specifications

General

Brand	Epever
Model	UPower Series
Category	Inverter
Language	English
