Setting Engraving/Mark Location

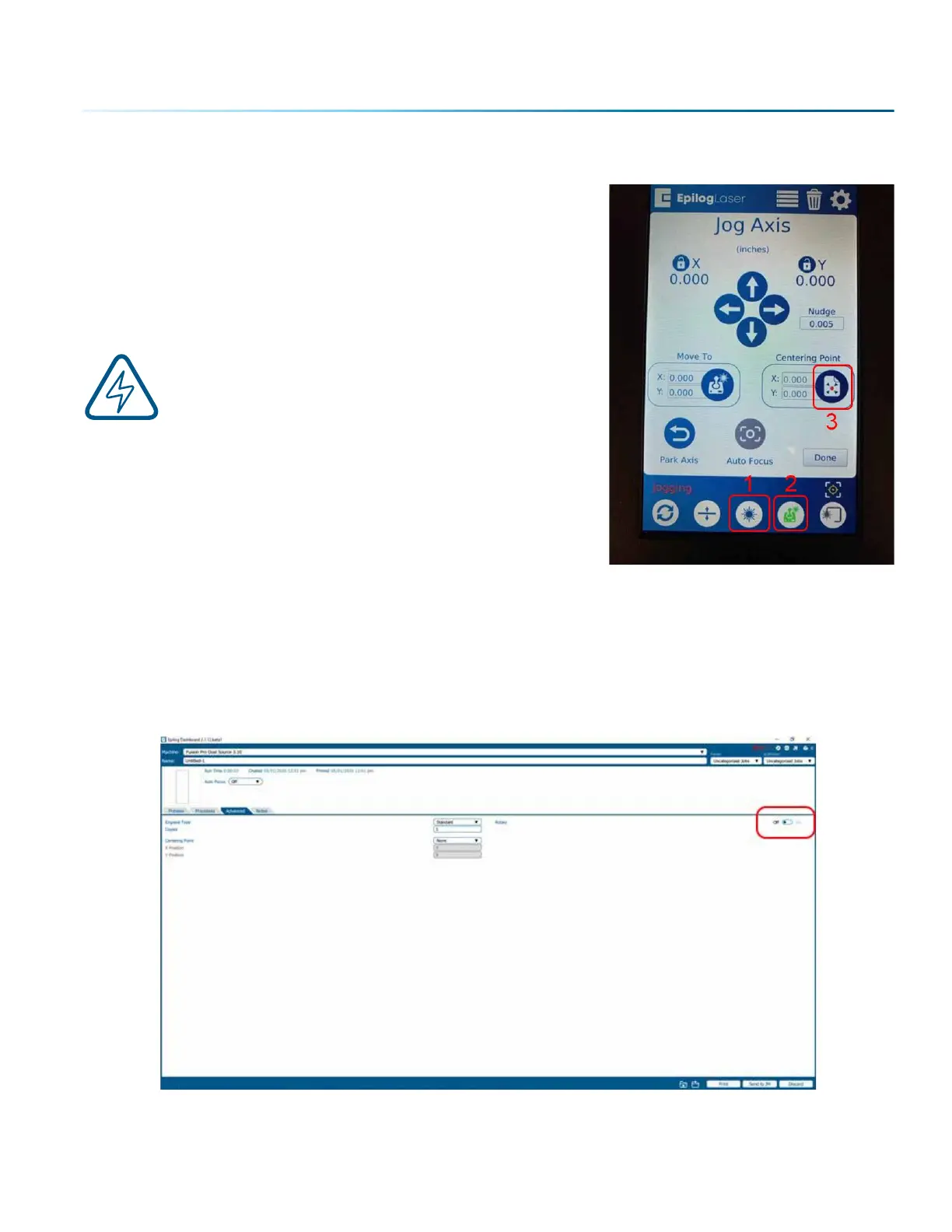

At the control panel, press the Pointer icon to illuminate the Red
Dot Pointer. Press the Jog Menu icon. Using the joystick, move the
lens assembly while watching the Red Diode Pointer. Once you
have selected the correct position for the engraving/mark
location, press the Centering Point Icon. Once you have set the
new Centering Point, press the Done button on the Display Panel
to return to the Job Menu.
Note: Up and down motion of the joystick will rotate
the part in the 3-Jaw Rotary. Le and right joystick
movement will move the lens assembly le and/
or right along the axis of the part to be engraved/
marked.
Set the Cylinder Diameter in the Dashboard
With the rotary installed, the diameter measured, and the cylinder held tightly in place, you are ready to
print.
1. Print your job to the Epilog Dashboard.
2. In the Advanced tab, turn the Rotary selection to “ON”.
- 139 -
SECTION 9: OPTIONAL FEATURES
