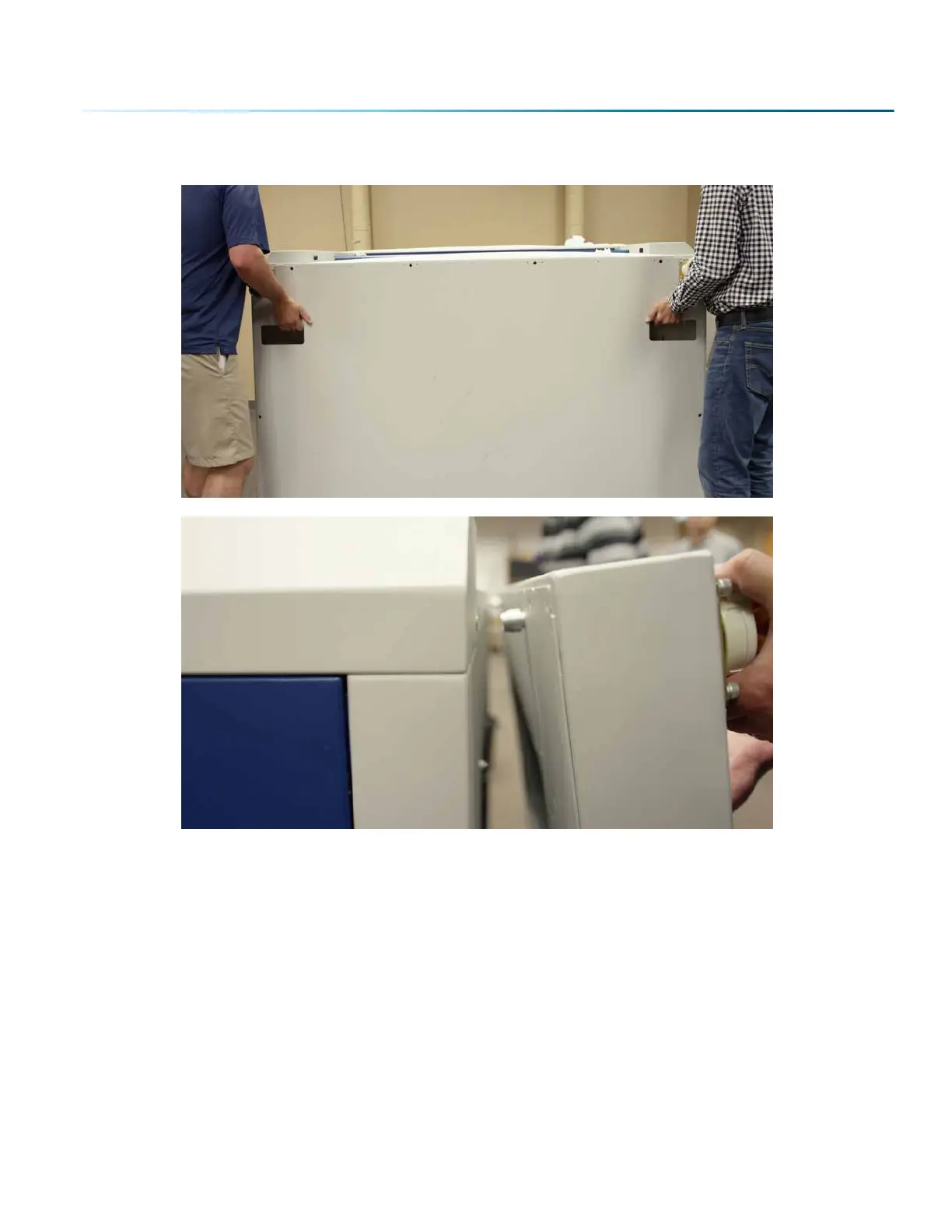

12. With two people, li the pedestal up, then out of the keyhole hanger slots.

13. Move the machine to its final location.

14. Once the Fusion Pro is in its desired location, reinstall the pedestal making sure not to over-tighten

the attachment screws. They should be tightened just enough to compress the lock washer.

- 171 -

SECTION 10: SYSTEM MAINTENANCE
