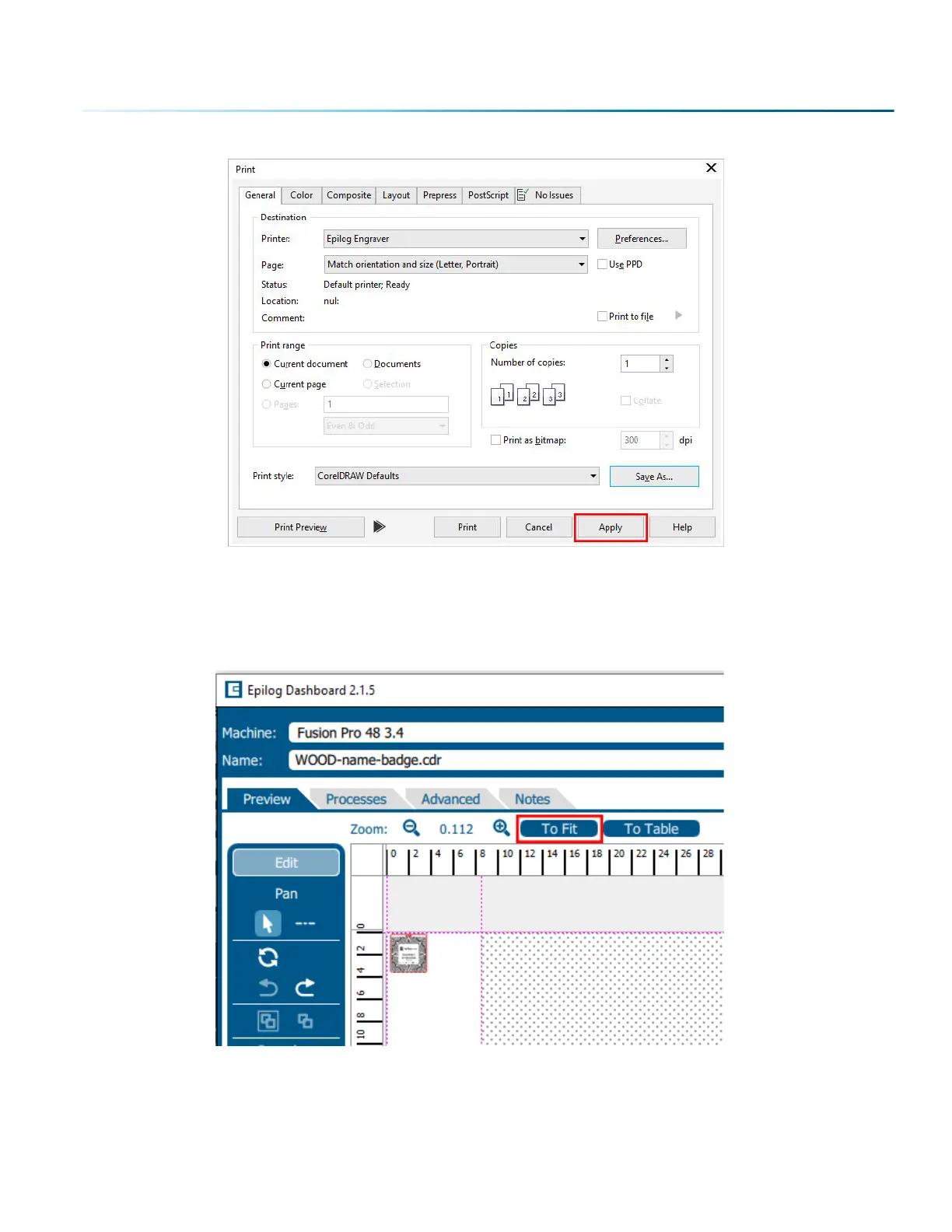

6. Then click Print.

7. Your file will open in the Laser Dashboard. Select “To Fit” to zoom in on your object.

- 59 -

SECTION 5: THE LASER DASHBOARD
